Drive Cages & Hot-swap Modules / BPN-DE110HD-WB
Trayless 5.25" to 3.5" 12Gb/s HDD Hot-swap Rack with Wood Look Bezel
BPN-DE110HD-WB — Trayless 5.25" to 3.5" 12Gb/s HDD Hot-swap Rack with Wood Look Bezel. Trayless; Hotswap 3.5": 1 · 5.25" host 1; 3.5" SAS I/II/III & SATA I/II/III; 12Gb/s; Key Lock. Listed as Coming Soon on iStarUSA.
Product Overview
What the BPN-DE110HD-WB is built for.

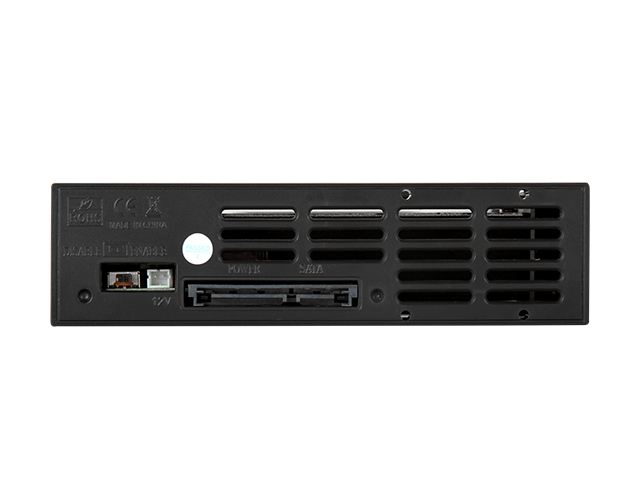

BPN-DE110HD-WB is iStarUSAs third generation tray-less hot-swap hard drive cage. It features the latest transfer rate technology of 12Gb/s and is 14TB HDD compatible. The LED Display lights features the new blue light by popular demand. Heat dissipation is enhanced by aluminum construction and optional 40mm fan. SATA power connector increases compatibility with most power supplies. The metal key locks help secure your hard drives and prevent unauthorized access. BPN-DE110HD-WB is filed as an Anhsin Internal HDD Cage under Trayless. Host opening: Hotswap 3.5": 1 · 5.25" Drives: 1. Hot-swap map: 3.5" SAS I/II/III & SATA I/II/III. Interface language on the original spec/feature list: 12Gb/s · SATA 6Gb/s · SAS. Security: Key Lock. Envelope (W×H×D): 5.75" x 1.65" x 7.10" · 146.1 mm x 41.9 mm x 180.3 mm. Availability on iStarUSA: Coming Soon.
Key Features
Engineered for reliability and integration.

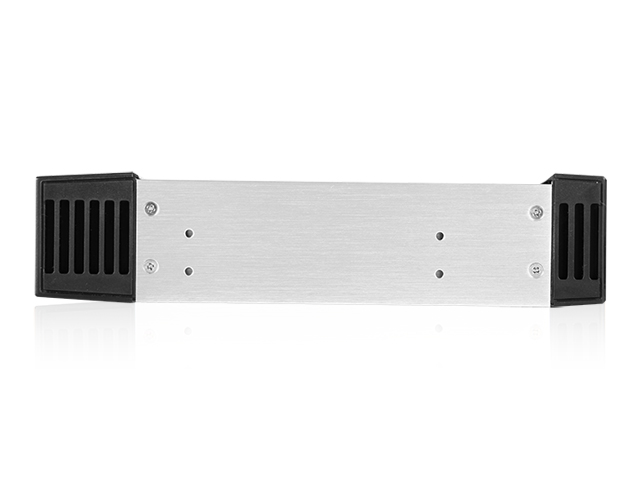

- Aluminum Frame, light weight and durability design
- Supports SAS I/II/III and SATA I/II/III Hard Drives
- Integrative shaping aluminum design for quickest heat sink

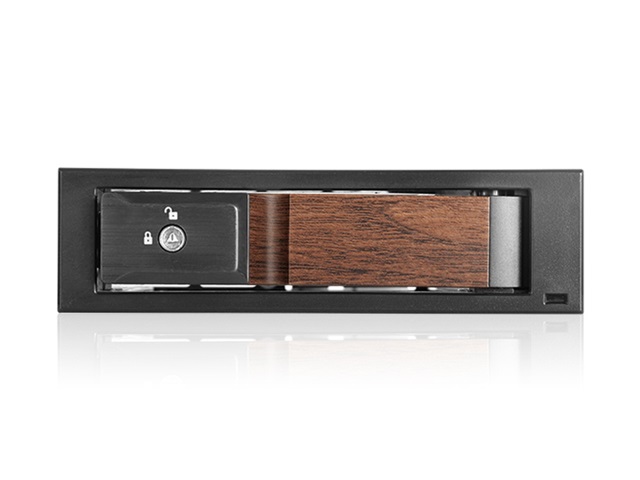

- Wood look front bezel with metal key lock mechanism for security
- Multi-functional LED Indication
- Tray-less and screw-less HDD mounting
- High Performance Transfer Rate up to 12Gb/s
Specifications
Technical specifications.
| Model Number | BPN-DE110HD-WB |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Trayless |
| Host Bay | Hotswap 3.5": 1 · 5.25" Drives: 1 |
| Drive Bays | 3.5" SAS I/II/III & SATA I/II/III |
| Interface | 12Gb/s · SATA 6Gb/s · SAS |
| Indicators | Blue for Power on/ · Purple for HDD Access |
| Security | Key Lock |
| Material of Front Bezel | Plastic |
| Material of Handle | Aluminum |
| Material of Main Chassis | Aluminum |
| Color of Main Chassis | Black |
| Optional Fan | 40mm |
| Dimensions | 5.75" x 1.65" x 7.10" · 146.1 mm x 41.9 mm x 180.3 mm |
| Certification | RoHS compliant |
| Drive Size Class | 3.5" 12Gb/s BP |
Applications
Where the BPN-DE110HD-WB is deployed.
BPN-DE110HD-WB SAS 12Gb/s expansion
Add 3.5" SAS I/II/III & SATA I/II/III at SAS 12Gb/s (SATA 6Gb/s where listed) inside Hotswap 3.5": 1 · 5.25" Drives: 1 for RAID/HBA storage growth.
BPN-DE110HD-WB tool-less insert
Trayless path: the drive seats on the backplane directly, reducing parts count in dense 5.25" stacks.
BPN-DE110HD-WB media / wood-bezel face
Wood-look front bezel as specified — intended for media or living-room chassis that cannot take a raw metal cage face.
BPN-DE110HD-WB OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPN-DE110HD-WB to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPN-DE110HD-WB: trayless backplane connector and bezel stack matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Fan option around the published 40mm configuration
Wood-look vs standard plastic/metal bezel
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
