Drive Cages & Hot-swap Modules / BPN-DE340P
Trayless 3x 5.25" to 4x 3.5" 12Gb/s HDD Hot-swap Rack with Independent HDD Power Switch
BPN-DE340P — Trayless 3x 5.25" to 4x 3.5" 12Gb/s HDD Hot-swap Rack with Independent HDD Power Switch. Trayless; Hotswap 3.5": 1 · 5.25" host 3; 3.5" SAS I/II/III & SATA I/II/III; 12Gb/s; Key Lock.
Product Overview
What the BPN-DE340P is built for.

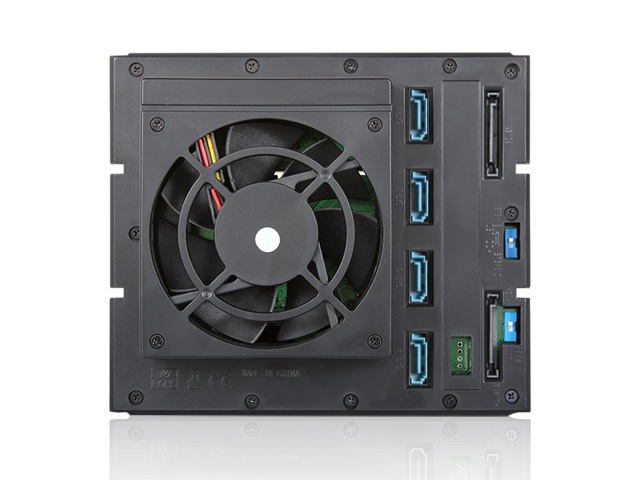

BPN-DE340P 12Gb/s tray-less hot-swap hard drive cage. It features the latest transfer rate technology of 12Gb/s and is RAID capable. It also comes with adjustable fans speed and ultra-quiet cooling fans. The LED Display lights features the new blue light by popular demand. Heat dissipation is enhanced by the full aluminum construction and a 80mm fan. SATA power connector increases compatibility with most power supplies. The metal key locks help secure your hard drives and with independent HDD power swtich. Converting three standard 5.25" drive bays into four usable hard drive slots, it is economically designed to maximize your investment. BPN-DE340P is filed as an Anhsin Internal HDD Cage under Trayless. Host opening: Hotswap 3.5": 1 · 5.25" Drives: 3. Hot-swap map: 3.5" SAS I/II/III & SATA I/II/III. Interface language on the original spec/feature list: 12Gb/s · SATA 6Gb/s · SAS. Security: Key Lock. Cooling: 1x80mm. Envelope (W×H×D): 5.71" x 4.92" x 7.79" · 145.0 mm x 125.0 mm x 197.9 mm.
Key Features
Engineered for reliability and integration.
- Aluminum Frame, designed for heavy-duty purpose
- Supports SAS I/II/III and SATA I/II/III Hard Drives
- Integrative shaping aluminum design for quickest heat sink
- High Performance Transfer Rate up to 12Gb/s

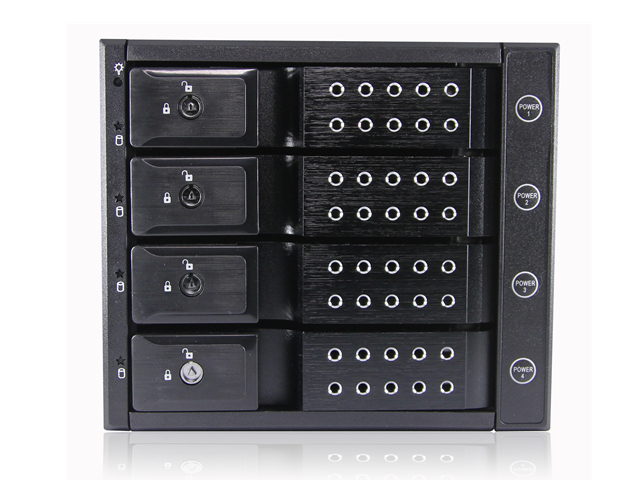

- Aluminum front bezel with metal key lock mechanism for double safety
- Removable fan cover for easy maintenance
- Multi-functional LED Indication
- Support Hot-Swap & RAID Configuration (need an additional RAID controller)
- Independent HDD Power Swtich
Specifications
Technical specifications.
| Model Number | BPN-DE340P |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Trayless |
| Host Bay | Hotswap 3.5": 1 · 5.25" Drives: 3 |
| Drive Bays | 3.5" SAS I/II/III & SATA I/II/III |
| Interface | 12Gb/s · SATA 6Gb/s · SAS |
| Indicators | Blue for Power on/ · Purple for HDD Access/LED Indicating On/Off Switch |
| Security | Key Lock |
| Material of Front Bezel | Aluminum |
| Color of Front Bezel | Black/ Blue/ Red/ Silver |
| Material of Handle | Aluminum |
| Material of Main Chassis | Aluminum |
| Color of Main Chassis | Black |
| Cooling Fan | 1x80mm |
| Ordering Information | Black Handle:BPN-DE340P-BLACK · Blue Handle:BPN-DE340P-BLUE · Red Handle:BPN-DE340P-RED · Silver Handle:BPN-DE340P-SILVER |
| Dimensions | 5.71" x 4.92" x 7.79" · 145.0 mm x 125.0 mm x 197.9 mm |
| Certification | RoHS compliant |
| Drive Size Class | 3.5" 12Gb/s BP |
Applications
Where the BPN-DE340P is deployed.
BPN-DE340P SAS 12Gb/s expansion
Add 3.5" SAS I/II/III & SATA I/II/III at SAS 12Gb/s (SATA 6Gb/s where listed) inside Hotswap 3.5": 1 · 5.25" Drives: 3 for RAID/HBA storage growth.
BPN-DE340P tool-less insert
Trayless path: the drive seats on the backplane directly, reducing parts count in dense 5.25" stacks.
BPN-DE340P locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
BPN-DE340P OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPN-DE340P to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPN-DE340P: trayless backplane connector and bezel stack matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Fan option around the published 1x80mm configuration
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Two Ways to Buy
Order the standard model — or use it as a platform.
The BPN-DE340P is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the BPN-DE340P with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the BPN-DE340P and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
