Drive Cages & Hot-swap Modules / BPN-DE340SS-WB
Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-DE340SS-WB — Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel. Trayless; Hotswap 3.5": 1 · 5.25" host 3; 3.5" SAS I/II & SATA I/II/III; SATA 6Gb/s; Key Lock.
Product Overview
What the BPN-DE340SS-WB is built for.

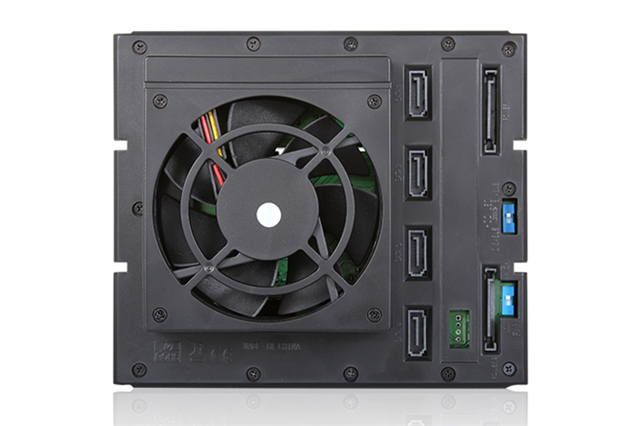

BPN-DE340SS-WB is iStarUSAs third generation tray-less hot-swap hard drive cage. It features the latest transfer rate technology of 6.0 Gb/s (SATA I/II/III and SAS I/II), and is RAID capable. It also comes with adjustable fans speed and ultra-quiet cooling fans. The LED Display lights features the new blue light by popular demand. Heat dissipation is enhanced by the full aluminum construction and a 80mm fan. SATA power connector increases compatibility with most power supplies. The metal key locks help secure your hard drives and prevent unauthorized access. Converting three standard 5.25" drive bays into four usable hard drive slots, it is economically designed to maximize your investment. BPN-DE340SS-WB is filed as an Anhsin Internal HDD Cage under Trayless. Host opening: Hotswap 3.5": 1 · 5.25" Drives: 3. Hot-swap map: 3.5" SAS I/II & SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s · SAS. Security: Key Lock. Cooling: 1x80mm. Envelope (W×H×D): 5.71" x 4.92" x 7.79" · 145.0 mm x 125.0 mm x 197.9 mm.
Key Features
Engineered for reliability and integration.
- Aluminum Frame, designed for heavy-duty purpose
- Support SAS I/II, SATA I/II/III Hard Drives
- Integrative shaping aluminum design for quickest heat sink
- Data Transfer Rate up to 6.0 Gb/s
- Wood look bezel with metal key lock mechanism for double safety
- Removable fan cover for easy maintenance
- Multi-functional LED Indication
- Support Hot-Swap & RAID Configuration (need an additional RAID controller)
- 12TB Hard Drives Compatible
Specifications
Technical specifications.
| Model Number | BPN-DE340SS-WB |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Trayless |
| Host Bay | Hotswap 3.5": 1 · 5.25" Drives: 3 |
| Drive Bays | 3.5" SAS I/II & SATA I/II/III |
| Interface | SATA 6Gb/s · SAS |
| Indicators | Blue for Power on/ · Purple for HDD Access |
| Security | Key Lock |
| Material of Front Bezel | Plastic |
| Material of Handle | Aluminum |
| Material of Main Chassis | Aluminum |
| Color of Main Chassis | Black |
| Cooling Fan | 1x80mm |
| Dimensions | 5.71" x 4.92" x 7.79" · 145.0 mm x 125.0 mm x 197.9 mm |
| Certification | RoHS compliant |
| Drive Size Class | 3.5" |
Applications
Where the BPN-DE340SS-WB is deployed.
BPN-DE340SS-WB SATA/SAS bay conversion
Convert Hotswap 3.5": 1 · 5.25" Drives: 3 into 3.5" SAS I/II & SATA I/II/III hot-swap capacity for workstation and industrial storage.
BPN-DE340SS-WB tool-less insert
Trayless path: the drive seats on the backplane directly, reducing parts count in dense 5.25" stacks.
BPN-DE340SS-WB media / wood-bezel face

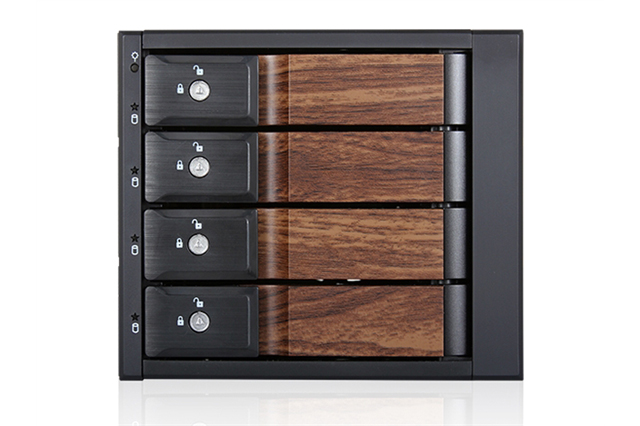

Wood-look front bezel as specified — intended for media or living-room chassis that cannot take a raw metal cage face.
BPN-DE340SS-WB OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPN-DE340SS-WB to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPN-DE340SS-WB: trayless backplane connector and bezel stack matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Fan option around the published 1x80mm configuration
Wood-look vs standard plastic/metal bezel
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The BPN-DE340SS-WB is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the BPN-DE340SS-WB with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the BPN-DE340SS-WB and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
