Fanless Enclosure / FS-1001
Fanless Desktop for 3.5" SBC
The smallest FactorySmith 3.5" SBC cell — 6.80 × 2.10 × 4.50 inches, 9–36V DC, one antenna cutoff.
Product Overview
What the FS-1001 is built for.
FS-1001 is the entry envelope in the 3.5" SBC fanless desktop line: a 6.80 × 2.10 × 4.50 inch body with a single internal 2.5" bay and wide 9–36V DC-in. Rear I/O is cut for dual Gigabit LAN, HDMI, VGA, four COM, GPIO, and one antenna, so gateway and kiosk boards drop in without a custom bezel.
Key Features
Engineered for reliability and integration.
- Fanless, dust-resistant operation — no system fans in the enclosure
- Motherboard window: 3.5" SBC
- Drive map: Internal Drive Bay: 2.5" HDD x 1
- Power: 9V-36V DC In
- Envelope (W×H×D): 6.80" x 2.10" x 4.50"
- Front power, LED, and USB service cluster as specified
Specifications
Technical specifications.
| Model Number | FS-1001 |
|---|---|
| Product Category | Fanless Enclosure |
| Form Factor | Desktop |
| Motherboard Support | 3.5" SBC |
| Drive Bays | Internal Drive Bay: 2.5" HDD x 1 |
| Cooling | Fanless |
| PSU Support | 9V-36V DC In |

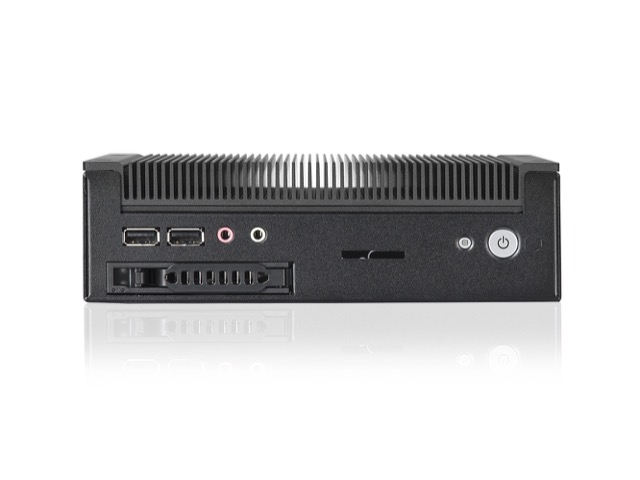

| Front Panel | Power SW · Power LED · HDD LED · USB 2.0 Port x2 |

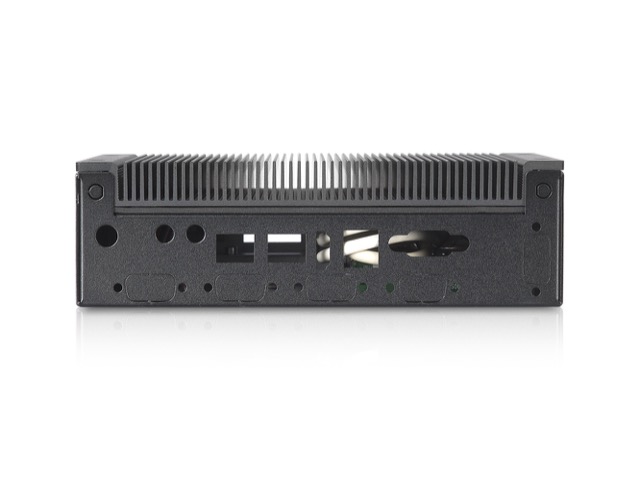

| Rear Panel | Gigabit LAN x 2 · HDMI x1 · USB 3.0 Port x2 · VGA x 1 · COM Port x4 · GPIO x1 · ANT x 1 · Audio IN/OUT · 9V-36V DC-in |
| Dimensions | 6.80" x 2.10" x 4.50" · 172.7 mm x 53.3 mm x 114.3 mm |
| Certification | RoHS compliant |
Applications
Where the FS-1001 is deployed.
Edge Gateway
9–36V 3.5" SBC cell for vehicle, pole, and cabinet gateways.
Kiosk Engine
Silent desktop brick behind a display, no fan dust path.
Serial / GPIO Appliance
COM, GPIO, and dual LAN already cut on the rear panel.
OEM Fanless SBC
Lock a 3.5" board and DC range into a FactorySmith envelope.
Customization Options
Adapt the FS-1001 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Heatsink and DC-converter matching to the selected board
I/O cutout and front-panel layout
Drive-bay and slot-card options
Color, silk-screen, and logo
Mounting brackets and OEM labeling
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-1001 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-1001 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-1001 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
