Fanless Enclosure / FS-1019
2U Fanless Enclosure for Mini-ITX
2U fanless Mini-ITX with two 3.5" hot-swap trays, slim ODD, and two slot-cards on a C4 150W converter.
Product Overview
What the FS-1019 is built for.
FS-1019 is the 2U fanless Mini-ITX in this tree: two 3.5" hot-swap trays and a slim ODD on the front, two rear slot-cards, a standard ATX I/O opening, and a C4 150W 19–24V converter. Official dimension fields on the product page are unset (0.00); treat envelope as Design-In until a drawing is issued.
Key Features
Engineered for reliability and integration.

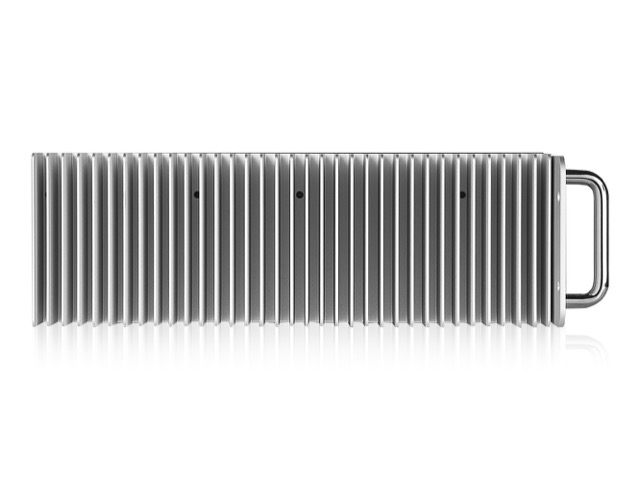

- Fanless, dust-resistant operation — no system fans in the enclosure
- Motherboard window: Mini-ITX
- Drive map: Internal Drive Bay: 2.5" HDD x 1
- Expansion: Solt-card x2
- Power: Power Supply C4 150W 19-24 SCVin/ATX Converter
- Front power, LED, and USB service cluster as specified
Specifications
Technical specifications.
| Model Number | FS-1019 |
|---|---|
| Product Category | Fanless Enclosure |
| Form Factor | 2U |
| Motherboard Support | Mini-ITX |
| Drive Bays | Internal Drive Bay: 2.5" HDD x 1 |
| Expansion Slots | Solt-card x2 |
| Cooling | Fanless |
| PSU Support | Power Supply C4 150W 19-24 SCVin/ATX Converter |

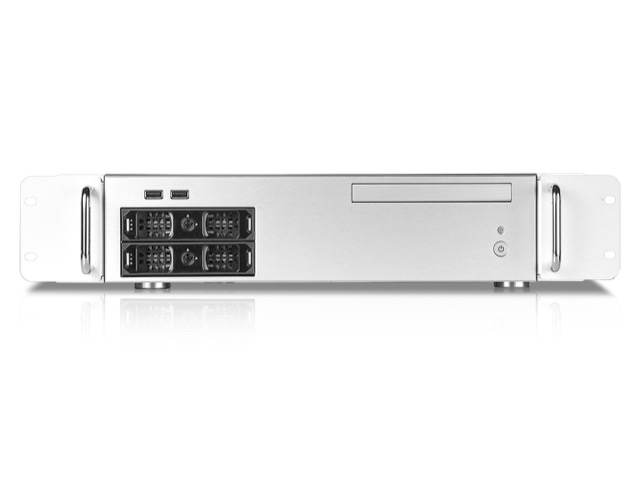

| Front Panel | 3.5" HDD HOT- SWAP Tray x 2 · Slim ODD x 1 · Power SW/LED x 1. HDD LED x 1 · USB Port 2.0 x 2(USB 3.0 Optional) |

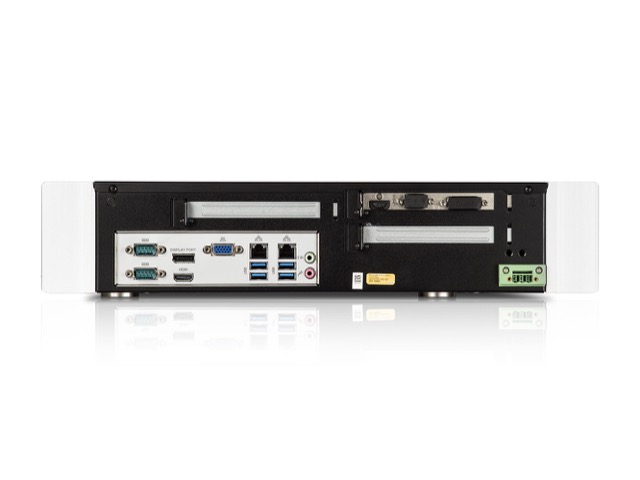

| Rear Panel | Solt-card x2 · Standard ATX-IO x1 |
| Certification | RoHS compliant |
Applications
Where the FS-1019 is deployed.
Silent Rack Cell
2U fanless Mini-ITX for control rooms that cannot take fan noise.
Dusty Factory Node
No system fans — storage and slots as specified per SKU.
DC-Powered Edge
Power Supply C4 150W 19-24 SCVin/ATX Converter
OEM Fanless Rack
FactorySmith 19" fanless program with optional rails.
Customization Options
Adapt the FS-1019 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Heatsink and DC-converter matching to the selected board
I/O cutout and front-panel layout
Drive-bay and slot-card options
Color, silk-screen, and logo
Mounting brackets and OEM labeling
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-1019 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-1019 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-1019 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
