Fanless Enclosure / FS-1020
3U Fanless Enclosure for Mini-ITX
3U fanless Mini-ITX with three rear PCI/PCI-E slots, two internal 2.5" bays, and a 120W/19V adapter plus C4 150W.
Product Overview
What the FS-1020 is built for.
FS-1020 is the expansion-first 3U fanless Mini-ITX: 16.90 × 5.10 × 10.40 inches, three rear PCI/PCI-E slots, two internal 2.5" bays, and a 120W/19V adapter paired with a C4 19–24V 150W converter. No optical or 3.5" trays — that is FS-1021.
Key Features
Engineered for reliability and integration.

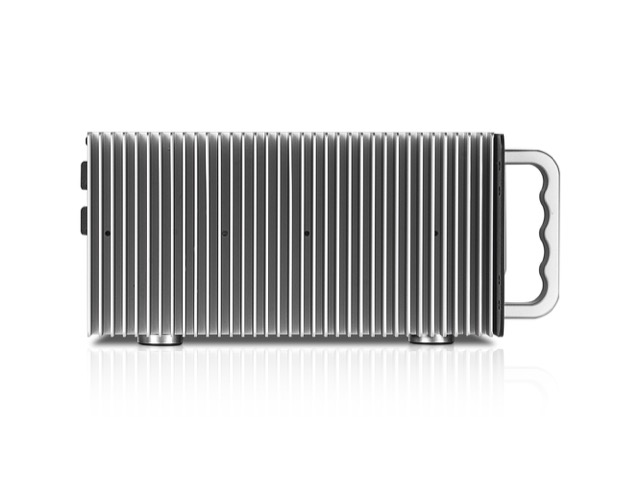

- Fanless, dust-resistant operation — no system fans in the enclosure
- Motherboard window: Mini-ITX
- Drive map: Internal Drive Bay: 2.5" HDD x 2
- Expansion: Expansion PCI/PCI-E slot x 3
- Power: ADAPTER 120W/19V x1 + C4(19-24Vdc 150W) Converter x 1
- Envelope (W×H×D): 16.90" x 5.10" x 10.40"
- Front power, LED, and USB service cluster as specified
Specifications
Technical specifications.
| Model Number | FS-1020 |
|---|---|
| Product Category | Fanless Enclosure |
| Form Factor | 3U |
| Motherboard Support | Mini-ITX |
| Drive Bays | Internal Drive Bay: 2.5" HDD x 2 |
| Expansion Slots | Expansion PCI/PCI-E slot x 3 |
| Cooling | Fanless |
| PSU Support | ADAPTER 120W/19V x1 + C4(19-24Vdc 150W) Converter x 1 |

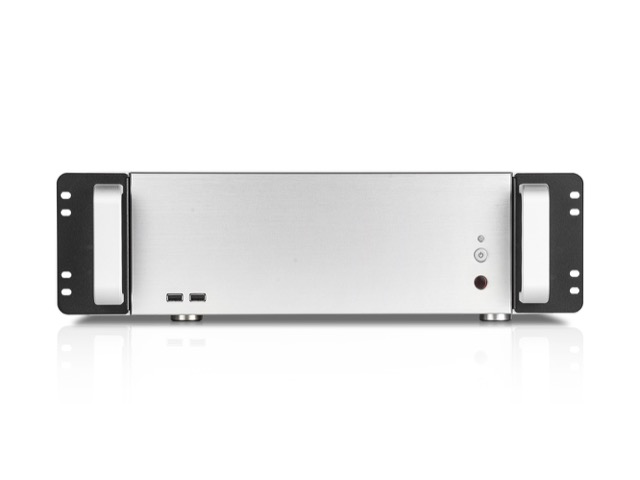

| Front Panel | Power SW x1 + Power LED x1 + HDD LCD x1 · USB Port x 2 (USB3.0 optional) |

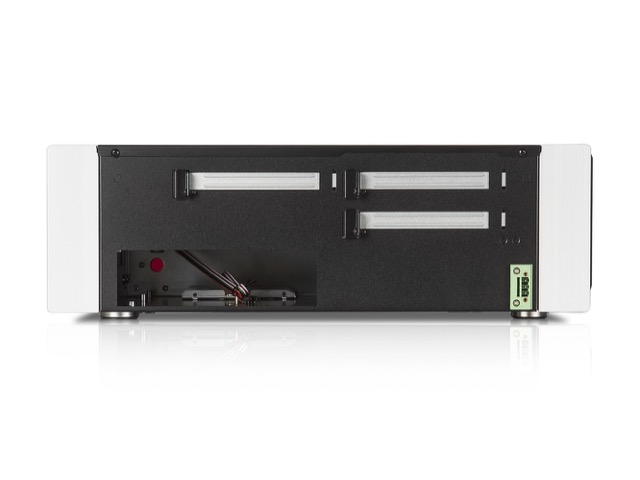

| Rear Panel | Standard I/O shield · Expansion PCI/PCI-E slot x 3 |
| Dimensions | 16.90" x 5.10" x 10.40" · 429.3 mm x 129.5 mm x 264.2 mm |
| Certification | RoHS compliant |
Applications
Where the FS-1020 is deployed.
Silent Rack Cell
3U fanless Mini-ITX for control rooms that cannot take fan noise.
Dusty Factory Node
No system fans — storage and slots as specified per SKU.
DC-Powered Edge
ADAPTER 120W/19V x1 + C4(19-24Vdc 150W) Converter x 1
OEM Fanless Rack
FactorySmith 19" fanless program with optional rails.
Customization Options
Adapt the FS-1020 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Heatsink and DC-converter matching to the selected board
I/O cutout and front-panel layout
Drive-bay and slot-card options
Color, silk-screen, and logo
Mounting brackets and OEM labeling
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-1020 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-1020 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-1020 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
