Drive Cages & Hot-swap Modules / T-C35HD-TLA
Custom Size Trayless 3.5" SATA 6 Gbps HDD Hot-swap Aluminum Rack
T-C35HD-TLA — Custom Size Trayless 3.5" SATA 6 Gbps HDD Hot-swap Aluminum Rack. Custom Size; 3.5" SATA I/II/III; SATA 6Gb/s; 5.26" x 1.43" x 7.20". Build-to-order on the original listing.
Product Overview
What the T-C35HD-TLA is built for.

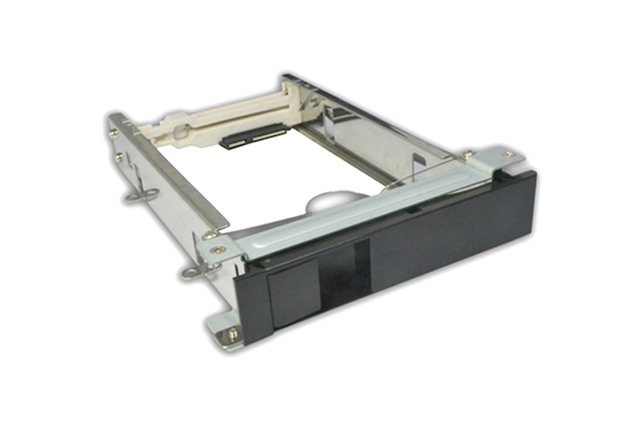

T-C35HD-TLA is an aluminum mobile rack for use with 3.5" SATA I/II/III 6.0Gb/s hard drive. The storage capacity of the hard drive is unlimited. LED indicator enables monitor power and hard drive activities. The compact design is perfect for OEM/ODM projects. T-C35HD-TLA is filed as an Anhsin Internal HDD Cage under Custom Size. Host opening: None. Hot-swap map: 3.5" SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s. Envelope (W×H×D): 5.26" x 1.43" x 7.20" · 133.6 mm x 36.3 mm x 182.9 mm. Availability on iStarUSA: Build-to-Order.
Key Features
Engineered for reliability and integration.
- Support SATA I/II/III 6.0Gb/s Hard Drive
- Power ON/OFF and Hard Drive Activity LEDs
- Trayless Design
- Custom size
- Aluminum Structure for Best Cooling
Specifications
Technical specifications.
| Model Number | T-C35HD-TLA |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Custom Size |
| Host Bay | None |
| Drive Bays | 3.5" SATA I/II/III |
| Interface | SATA 6Gb/s |
| Indicators | Power, HDD |
| Material of Handle | Aluminum |
| Material of Main Chassis | Aluminum |
| Dimensions | 5.26" x 1.43" x 7.20" · 133.6 mm x 36.3 mm x 182.9 mm |
| Notes | custom size; will not fit standard 5.25" bay |
| Certification | RoHS compliant |
| Drive Size Class | 3.5" |
Applications
Where the T-C35HD-TLA is deployed.
T-C35HD-TLA SATA/SAS bay conversion
Convert None into 3.5" SATA I/II/III hot-swap capacity for workstation and industrial storage.
T-C35HD-TLA OEM custom envelope
Custom-size module for chassis that do not use a standard 5.25" or 3.5" optical bay — match the host opening on the drawing.
T-C35HD-TLA industrial storage cell
Metal chassis (Aluminum) for 24×7 hot-swap in industrial PCs and storage servers.
T-C35HD-TLA OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the T-C35HD-TLA to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
T-C35HD-TLA: custom envelope and mounting to the host opening (not a standard 5.25"/3.5" drop-in unless the drawing says so)
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The T-C35HD-TLA is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the T-C35HD-TLA with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the T-C35HD-TLA and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
