Adjustable Open Racks / WOR-3611

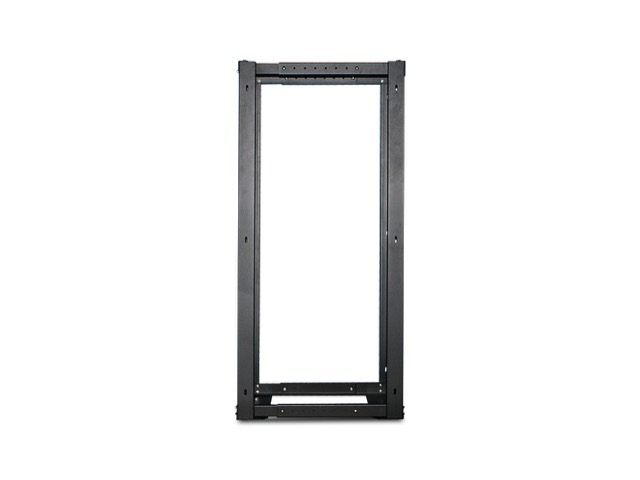

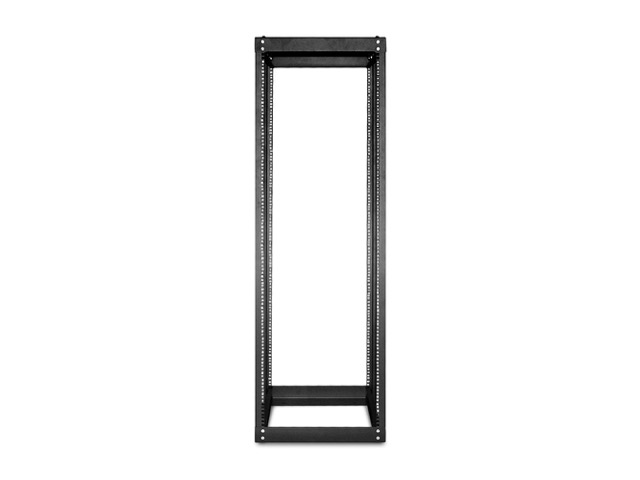

36U 1100mm Adjustable Open-frame Server Rack
A 36U Claytek WOR adjustable open-frame rack: depth 27.56"–43.3", 375 lbs, flat-pack SPCC.
Product Overview
What the WOR-3611 is built for.
WOR-3611 is the 36U × 1100 mm-class Claytek WOR adjustable open-frame server rack — 20.91" × 68.35" × 27.55" (531.1 × 1,736.1 × 699.8 mm) at the published envelope. Depth adjusts from 27.56" to 43.3"; supported chassis depth is 43.3" and under. Loading 375 lbs. Structure SPCC 3.0mm / posts 2.0mm, black, EIA-310, ships flat-pack. No casters on this SKU (see WOR-2740C / WOR-4540C for caster BTO models).
Key Features
Engineered for reliability and integration.
- 36U adjustable open-frame rack
- Depth adjusts 27.56" to 43.3" · chassis 43.3" and under
- Published envelope 20.91" W × 68.35" H × 27.55" D (531.1 × 1,736.1 × 699.8 mm)
- 375 lbs loading · black · EIA-310
- Adjustable depth 27.56" to 43.3" for mixed chassis lengths
- Open-frame construction for quick access
- SPCC structure 3.0mm / mounting posts 2.0mm
- Easy assemble / disassemble · ships flat-pack
Specifications
Technical specifications.
| Model Number | WOR-3611 |
|---|---|
| Product Category | Adjustable Open Rack |
| Brand | Claytek |
| Series | WOR — Adjustable Open Rack |
| Form Factor | 36U |
| Industry Standard | EIA-310 |
| Cabinet Depth | Adjustable 27.56"–43.3" (1100 mm class) |
| Supported Chassis Depth | 43.3" and under |
| Loading Capacity | 375 lbs |
| Material | Structure SPCC 3.0mm · Mounting posts SPCC 2.0mm |
| Color | Black |
| Packaging | Flat pack |
| Certification | RoHS compliant |
| Dimensions | 20.91" × 68.35" × 27.55" · 531.1 mm × 1,736.1 mm × 699.8 mm |
| Notes | Adjustable depth 27.56" to 43.3". No casters on this SKU. |
Downloads
Documentation & drawings.
Applications
Where the WOR-3611 is deployed.
36U Adjustable Open Frame
Pick this height when you need 43.3" chassis clearance and adjustable depth.
Mixed Chassis Lengths
27.56"–43.3" depth range vs fixed 900 mm WOS frames.
Flat-Pack Deployments
Assembles on site; 375 lbs loading.
Vs Caster BTO
This SKU is not the 790 lb caster WOR-xx40C line.
