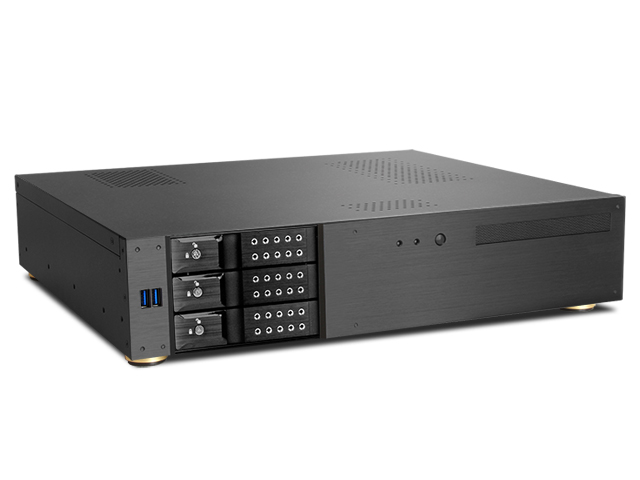

D-230HN-DT
Active2U Compact 3x 3.5" Bay Trayless Hotswap microATX Desktop Chassis
Desktop · 2.5" Drive (internal): 1 3.5" Drive (internal): 1 Hotswap 3.5": 1 Slim 5.25" Optical: 1 · 4 (Low profile) slots
View Product DetailDesktop Cases
Desktop chassis for media workstations, control rooms, and compact A/V platforms.
Related attributes
Products

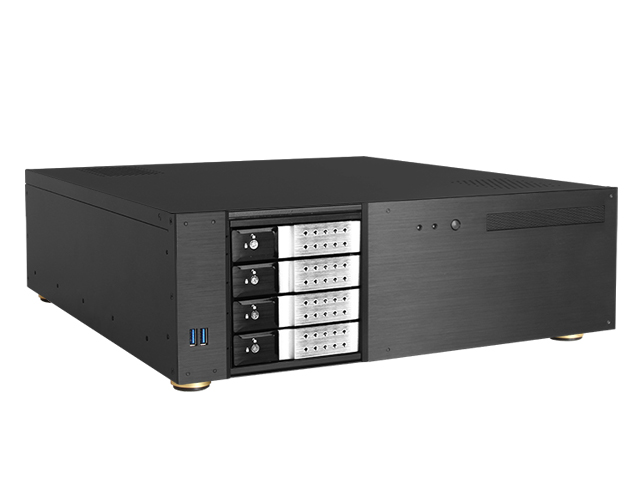

D-340HN-DT
Active3U Compact 4x3.5" Bay Trayless Hotswap ATX Desktop Chassis
Desktop · 3.5" Drive (internal): 3 Hotswap 3.5": 1 Slim 5.25" Optical: 1 · 4 slots
View Product Detail

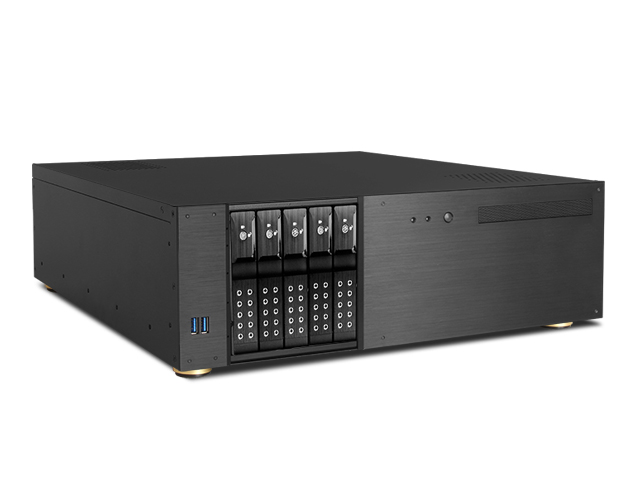

D-350HN-DT
Active3U Compact 5x3.5" Bay Trayless Hotswap ATX Desktop Chassis
Desktop · 3.5" Drive (internal): 3 Hotswap 3.5": 1 Slim 5.25" Optical: 1 · 4 slots
View Product Detail

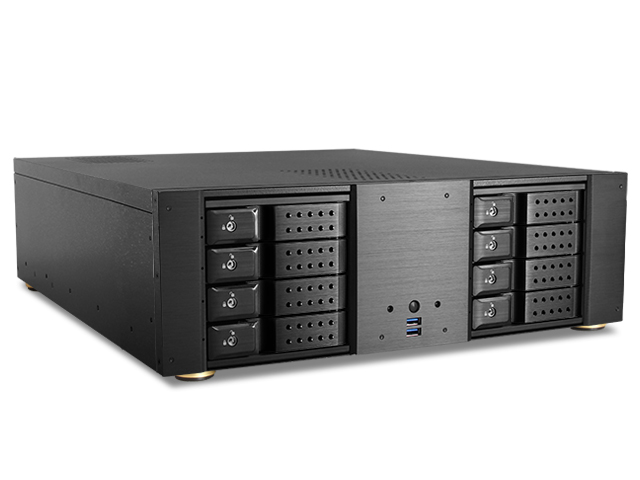

D-380HN-DT
Active3U Compact 8x 3.5" Bay Trayless Hotswap ATX Desktop Chassis
Desktop · 3.5" Drive (internal): 1 Hotswap 3.5": 1 · 4 slots
View Product Detail

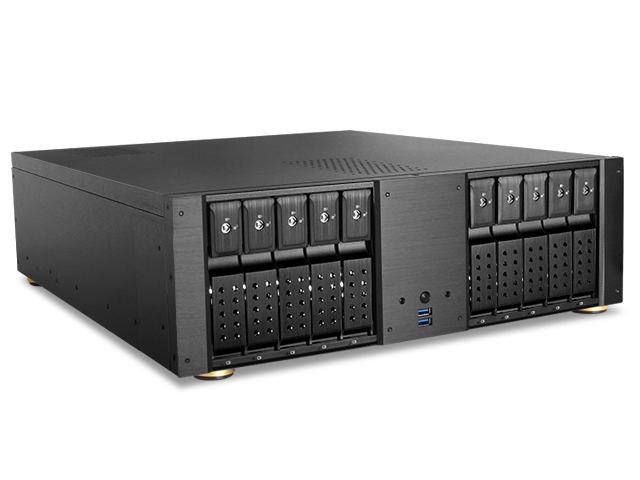

D-3100HN-DT
Active3U Compact 10x 3.5" Bay Trayless Hotswap ATX Desktop Chassis
Desktop · 3.5" Drive (internal): 1 Hotswap 3.5": 1 · 4 slots
View Product DetailSpec Comparison
| Model | Form Factor | Drive Bays | Expansion Slots | Cooling | PSU | Dimensions |
|---|---|---|---|---|---|---|
| D-230HN-DT | 2U | 2.5" Drive (internal): 1 3.5" Drive (internal): 1 Hotswap 3.5": 1 Slim 5.25" Optical: 1 | 4 (Low profile) | 1x80mm | — | 18.98" x 3.48" x 14.95" 482.1 mm x 88.4 mm x 379.7 mm |
| D-340HN-DT | 3U | 3.5" Drive (internal): 3 Hotswap 3.5": 1 Slim 5.25" Optical: 1 | 4 | 2x80mm | — | 18.98" x 5.22" x 18.66" 482.1 mm x 132.6 mm x 474.0 mm |
| D-350HN-DT | 3U | 3.5" Drive (internal): 3 Hotswap 3.5": 1 Slim 5.25" Optical: 1 | 4 | 2x80mm | — | 18.98" x 5.22" x 18.66" 482.1 mm x 132.6 mm x 474.0 mm |
| D-380HN-DT | 3U | 3.5" Drive (internal): 1 Hotswap 3.5": 1 | 4 | 2x80mm | — | 18.98" x 5.22" x 19.06" 482.1 mm x 132.6 mm x 484.1 mm |
| D-3100HN-DT | 3U | 3.5" Drive (internal): 1 Hotswap 3.5": 1 | 4 | 2x80mm | — | 18.98" x 5.22" x 19.06" 482.1 mm x 132.6 mm x 484.1 mm |
