Drive Cages & Hot-swap Modules / BPM-CA425-MS
5.25" to 4x 2.5" 12Gb/s HDD SSD SFF-8643 Hot-swap Rack
BPM-CA425-MS — 5.25" to 4x 2.5" 12Gb/s HDD SSD SFF-8643 Hot-swap Rack. Tray; 5.25" host 1; 4x15mm SAS 12G; SFF-8643; Key Lock.
Product Overview
What the BPM-CA425-MS is built for.
Industrial grade hot-swappable iStarUSA BPM-CA425-MS mobile rack. Unique compact in size, high performance 4xSAS 12G interface. BPM-CA425-MS is tough in strength, but flexible in functionality. LED indicator enables monitor power and hard drive activities. Security lock prevents intrusion and theft to the most important data. BPM-CA425-MS mobile rack construct with quality and versatility. BPM-CA425-MS is filed as an Anhsin Internal HDD Cage under Tray. Host opening: 5.25" Drives: 1. Hot-swap map: 4x15mm SAS 12G. Interface language on the original spec/feature list: SFF-8643 · 12Gb/s · SATA 6Gb/s · SAS. Security: Key Lock. Cooling: 2x40mm. Envelope (W×H×D): 5.74" x 1.64" x 6.26" · 145.8 mm x 41.7 mm x 159.0 mm.
Key Features
Engineered for reliability and integration.
- 4x SAS 12G (1xSFF8643) interface
- Fits 4x15mm SAS 12G SSD in a 5.25" space
- Support SAS 12G & SATA 6G speed
- Tray design with All Metal Parts (Industrial grade)

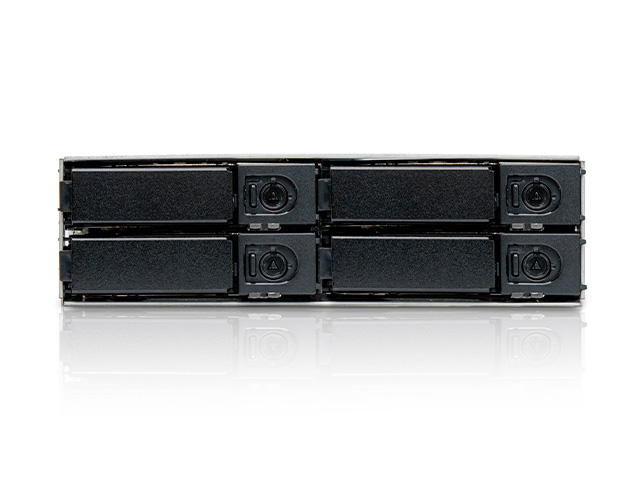

- Mechanical lock keeps HDD working securely
- LED indicator let users check working status any time

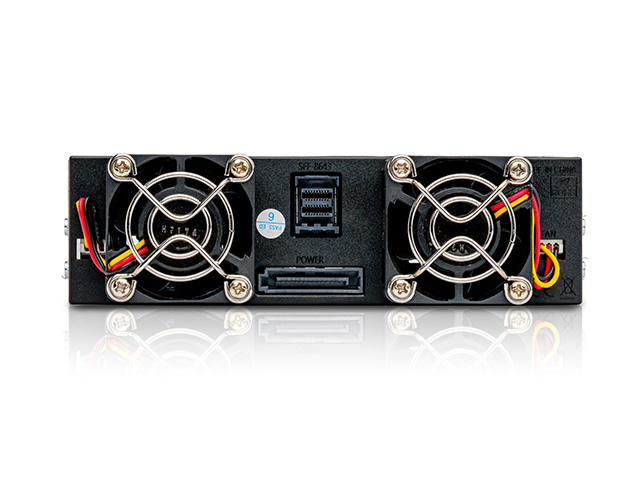

- 2x40mm cooling fans
Specifications
Technical specifications.
| Model Number | BPM-CA425-MS |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Tray |
| Host Bay | 5.25" Drives: 1 |
| Drive Bays | 4x15mm SAS 12G |
| Interface | SFF-8643 · 12Gb/s · SATA 6Gb/s · SAS |
| Indicators | Power and HDD activity |
| Security | Key Lock |
| Material of Handle | Metal |
| Material of Main Chassis | Metal |
| Color of Main Chassis | Black |
| Cooling Fan | 2x40mm |
| Dimensions | 5.74" x 1.64" x 6.26" · 145.8 mm x 41.7 mm x 159.0 mm |
| Notes | 2x40mm cooling fans |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" 12Gb/s BP |
Applications
Where the BPM-CA425-MS is deployed.
BPM-CA425-MS SAS 12Gb/s expansion
Add 4x15mm SAS 12G at SAS 12Gb/s (SATA 6Gb/s where listed) inside 5.25" Drives: 1 for RAID/HBA storage growth.
BPM-CA425-MS serviceable tray
Tray carrier lets a technician extract the drive without opening the host chassis — field-replaceable storage.
BPM-CA425-MS locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
BPM-CA425-MS OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPM-CA425-MS to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPM-CA425-MS: tray / carrier finish and backplane connector matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Fan option around the published 2x40mm configuration
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The BPM-CA425-MS is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the BPM-CA425-MS with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the BPM-CA425-MS and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
