Drive Cages & Hot-swap Modules / BPM-CAP625-HU2

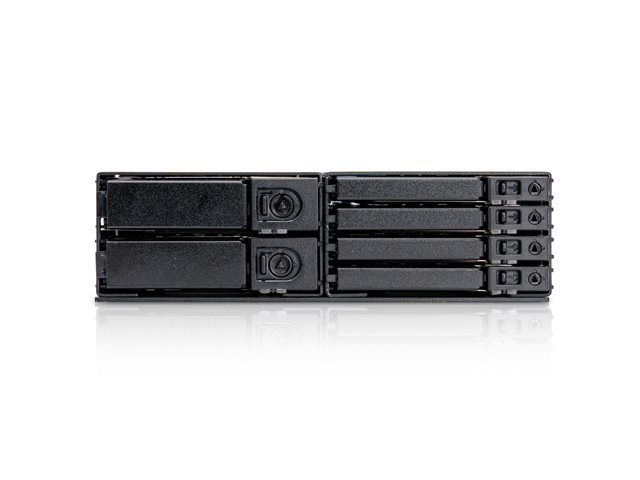

5.25" to 2x 2.5" U.2 NVMe SSD & 4x 2.5" 12Gb/s HDD SSD Hot-swap Rack
BPM-CAP625-HU2 — 5.25" to 2x 2.5" U.2 NVMe SSD & 4x 2.5" 12Gb/s HDD SSD Hot-swap Rack. Tray; 5.25" host 1; 2x15mm U.2 NVMe SSD ; 4x7mm SAS/SATA; U.2 NVMe; Key Lock.
Product Overview
What the BPM-CAP625-HU2 is built for.
Industrial grade hot-swappable iStarUSA BPM-CAP625-HU2 mobile rack. Unique compact in size, high performance 2xU.2 (SFF-8643)/ 4x12G (SAS 7pin) interface. BPM-CAP625-HU2 is tough in strength, but flexible in functionality. LED indicator enables monitor power and hard drive activities. Security lock prevents intrusion and theft to the most important data. BPM-CAP625-HU2 mobile rack construct with quality and versatility. BPM-CAP625-HU2 is filed as an Anhsin Internal HDD Cage under Tray. Host opening: 5.25" Drives: 1. Hot-swap map: 2x15mm U.2 NVMe SSD ; 4x7mm SAS/SATA. Interface language on the original spec/feature list: U.2 NVMe · SFF-8643 · 12Gb/s · SATA 6Gb/s · SAS. Security: Key Lock. Envelope (W×H×D): 5.74" x 1.64" x 6.45" · 145.8 mm x 41.7 mm x 163.8 mm.
Key Features
Engineered for reliability and integration.

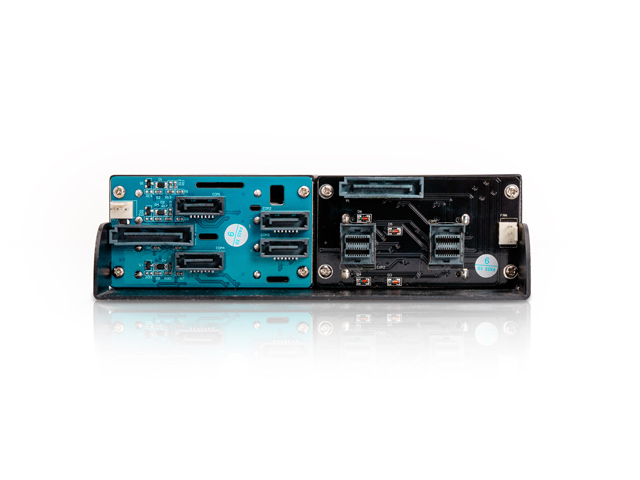

- 2xU.2 (SFF-8643)/ 4x12G (SATA/SAS 7pin) interface
- Fits 2x15mm U.2 NVMe SSD ; 4x7mm SAS/SATA /SSD/HDD in a 5.25" space
- Support NVMe 32G & SAS 12G & SATA 6G speed

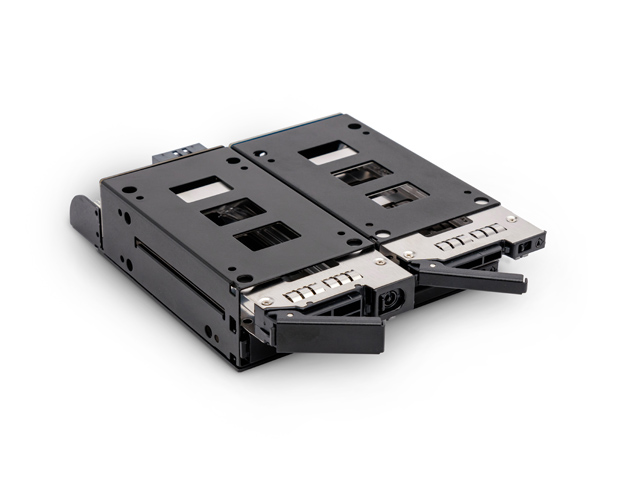

- Tray design with All Metal Parts (Industrial grade)
- Mechanical lock keeps HDD working securely
- LED indicator let users check working status any time
- Individual power switch to manage the HDD
Specifications
Technical specifications.
| Model Number | BPM-CAP625-HU2 |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Tray |
| Host Bay | 5.25" Drives: 1 |
| Drive Bays | 2x15mm U.2 NVMe SSD ; 4x7mm SAS/SATA |
| Interface | U.2 NVMe · SFF-8643 · 12Gb/s · SATA 6Gb/s · SAS |
| Indicators | Power and HDD activity |
| Security | Key Lock |
| Material of Handle | Metal |
| Material of Main Chassis | Metal |
| Color of Main Chassis | Black |
| Dimensions | 5.74" x 1.64" x 6.45" · 145.8 mm x 41.7 mm x 163.8 mm |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" U.2 NVMe |
Applications
Where the BPM-CAP625-HU2 is deployed.
BPM-CAP625-HU2 U.2 NVMe refresh
Drop 2x15mm U.2 NVMe SSD ; 4x7mm SAS/SATA into 5.25" Drives: 1 so an existing chassis can take U.2 NVMe without a new backplane drawing.
BPM-CAP625-HU2 serviceable tray
Tray carrier lets a technician extract the drive without opening the host chassis — field-replaceable storage.
BPM-CAP625-HU2 locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
BPM-CAP625-HU2 OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPM-CAP625-HU2 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPM-CAP625-HU2: tray / carrier finish and backplane connector matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The BPM-CAP625-HU2 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the BPM-CAP625-HU2 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the BPM-CAP625-HU2 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
