Drive Cages & Hot-swap Modules / T-PCI125-HU2

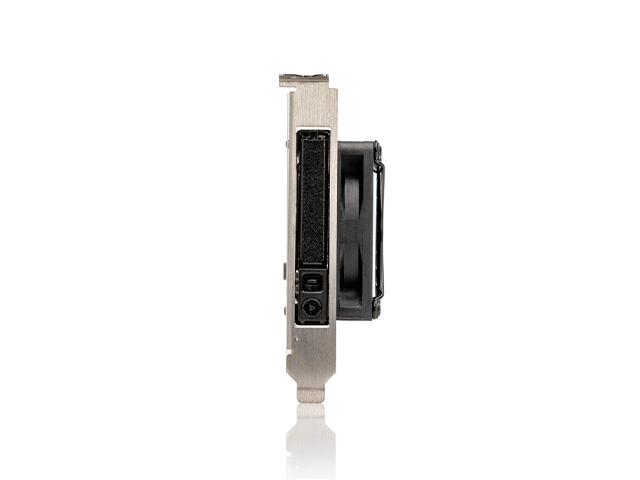

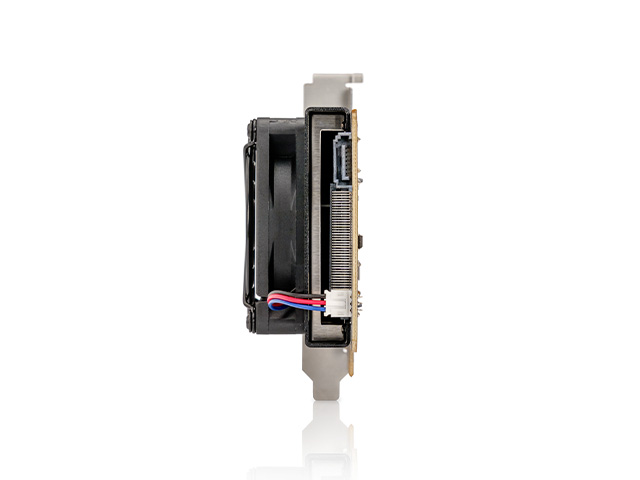

U.2/SATA/SAS SSD to PCIe x4 Hot-Swappable SSD Expansion Card
T-PCI125-HU2 — U.2/SATA/SAS SSD to PCIe x4 Hot-Swappable SSD Expansion Card. Tray; 9.5mm Height 2.5” U.2/SATA/SAS/HDD Drive; U.2 NVMe; Key Lock; PCIe / PCI-slot.
Product Overview
What the T-PCI125-HU2 is built for.
Introducing the T-PCI125-HU2, a storage powerhouse that seamlessly integrates into your computing environment with its PCIe x4 or SATA/SAS 7pin interface. This versatile adapter supports blazingly fast PCIe 3.0 and PCIe 4.0 transfer rates of up to 64Gbps, ensuring lightning-speed data transfers for your demanding applications. With compatibility for 2.5" U.2/SATA/SAS/HDD drives up to 9.5mm in height, the T-PCI125-HU2 offers flexibility to suit a variety of storage needs. Keep your drives cool and performing optimally with the integrated 7cm cooling fan, while LED indicators provide quick status updates. The added security of a triangle metal key lock ensures that your data stays protected. Elevate your storage capabilities with the T-PCI125-HU2, where performance, adaptability, and security converge in one sleek solution. T-PCI125-HU2 is filed as an Anhsin Internal HDD Cage under Tray. Host opening: None. Hot-swap map: 9.5mm Height 2.5” U.2/SATA/SAS/HDD Drive. Interface language on the original spec/feature list: U.2 NVMe · SAS · PCIe. Security: Key Lock. Envelope (W×H×D): 4.75" x 1.58" x 6.29" · 120.7 mm x 40.1 mm x 159.8 mm.
Key Features
Engineered for reliability and integration.
- PCIe x4 or SATA/SAS 7pin Interface
- Supports PCIE 3.0 and PCIE 4.0 Transfer Rate up to 64Gbps
- Supports up to 9.5mm Height 2.5” U.2/SATA/SAS/HDD Drive

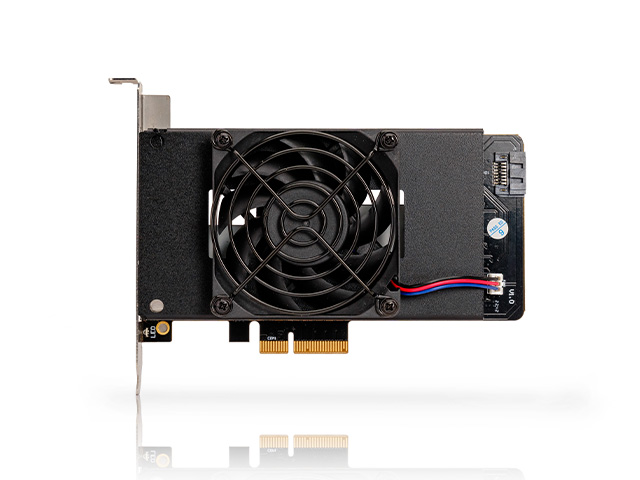

- 7cm Cooling Fan
- LED Indication
- Triangle Metal Key Lock
Specifications
Technical specifications.
| Model Number | T-PCI125-HU2 |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Tray |
| Host Bay | None |
| Drive Bays | 9.5mm Height 2.5” U.2/SATA/SAS/HDD Drive |
| Interface | U.2 NVMe · SAS · PCIe |
| Indicators | Power and HDD activity |
| Security | Key Lock |
| Material of Handle | Metal |
| Material of Main Chassis | Metal |
| Color of Main Chassis | Black |
| Dimensions | 4.75" x 1.58" x 6.29" · 120.7 mm x 40.1 mm x 159.8 mm |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" U.2 NVMe |
Applications
Where the T-PCI125-HU2 is deployed.
T-PCI125-HU2 U.2 NVMe refresh
Drop 9.5mm Height 2.5” U.2/SATA/SAS/HDD Drive into None so an existing chassis can take U.2 NVMe without a new backplane drawing.
T-PCI125-HU2 serviceable tray
Tray carrier lets a technician extract the drive without opening the host chassis — field-replaceable storage.
T-PCI125-HU2 locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
T-PCI125-HU2 OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the T-PCI125-HU2 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
T-PCI125-HU2: tray / carrier finish and backplane connector matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The T-PCI125-HU2 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the T-PCI125-HU2 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the T-PCI125-HU2 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
