Drive Cages & Hot-swap Modules / BPM-CP825-SS

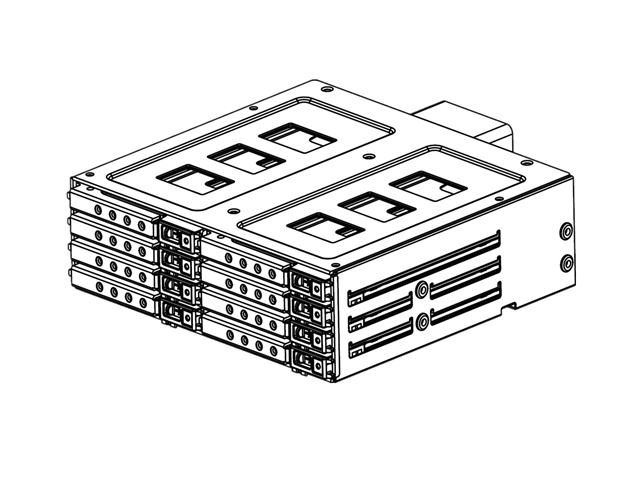

5.25" to 8x 2.5" 6Gb/s HDD SSD Hot-swap Rack
BPM-CP825-SS — 5.25" to 8x 2.5" 6Gb/s HDD SSD Hot-swap Rack. Tray; 5.25" host 1; 8 x 2.5" SATA 6G & SAS 6G HDD/SSD; SATA 6Gb/s; Mechanical Lock. Listed as Coming Soon on iStarUSA.
Product Overview
What the BPM-CP825-SS is built for.
Industrial grade hot-swappable iStarUSA BPM-CP825-SS mobile rack. Unique compact in size, high performance 8x SATA interface. BPM-CP825-SS is tough in strength, but flexible in functionality. LED indicator enables monitor power and hard drive activities. Security lock prevents intrusion and theft to the most important data. BPM-CP825-SS mobile rack construct with quality and versatility. BPM-CP825-SS is filed as an Anhsin Internal HDD Cage under Tray. Host opening: 5.25" Drives: 1. Hot-swap map: 8 x 2.5" SATA 6G & SAS 6G HDD/SSD. Interface language on the original spec/feature list: SATA 6Gb/s · SAS. Security: Mechanical Lock. Cooling: 1x40mm. Envelope (W×H×D): 5.74" x 1.64" x 6.26" · 145.8 mm x 41.7 mm x 159.0 mm. Availability on iStarUSA: Coming Soon.
Key Features
Engineered for reliability and integration.
- Supports HDD Thickness 7.0 mm
- Mechanical lock keeps HDD working securely
- 8x SATA interface
- LED indicator let users check working status any time
- 1x40mm cooling fan
Specifications
Technical specifications.
| Model Number | BPM-CP825-SS |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Tray |
| Host Bay | 5.25" Drives: 1 |
| Drive Bays | 8 x 2.5" SATA 6G & SAS 6G HDD/SSD |
| Interface | SATA 6Gb/s · SAS |
| Indicators | Power and HDD activity |
| Security | Mechanical Lock |
| Material of Main Chassis | Metal |
| Cooling Fan | 1x40mm |
| Dimensions | 5.74" x 1.64" x 6.26" · 145.8 mm x 41.7 mm x 159.0 mm |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" |
Applications
Where the BPM-CP825-SS is deployed.
BPM-CP825-SS SATA/SAS bay conversion
Convert 5.25" Drives: 1 into 8 x 2.5" SATA 6G & SAS 6G HDD/SSD hot-swap capacity for workstation and industrial storage.
BPM-CP825-SS serviceable tray
Tray carrier lets a technician extract the drive without opening the host chassis — field-replaceable storage.
BPM-CP825-SS locked drive bay
Original spec lists Mechanical Lock — use in labs and shared racks where the drive must stay in the carrier.
BPM-CP825-SS OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPM-CP825-SS to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPM-CP825-SS: tray / carrier finish and backplane connector matching
Lock hardware as specified (Mechanical Lock) — cylinder/key matching on OEM lots
Fan option around the published 1x40mm configuration
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The BPM-CP825-SS is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the BPM-CP825-SS with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the BPM-CP825-SS and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
