Drive Cages & Hot-swap Modules / BPU-128DE-SS
5.25" to 8x Slim 2.5" HDD SSD Hot-swap Rack
BPU-128DE-SS — 5.25" to 8x Slim 2.5" HDD SSD Hot-swap Rack. Tray; Hotswap 2.5": 1 · 5.25" host 1; 2.5" Slim SATA/ SAS; SATA 6Gb/s; 1x40mm fan.
Product Overview
What the BPU-128DE-SS is built for.
The 2.5" Disk Array BPU-128DE-SS, the Disk Array to be set up in various configurations: as RAID 0, RAID 1, RAID 5 or JBOD, as individual drive, or whatever the mix that best fits the application. The Disk Array can start with as little as one hard drive and then expands as needed. Hard Drive can also be removed or added to the system without turning off your system power or restarting your computer. BPU-128DE-SS is filed as an Anhsin Internal HDD Cage under Tray. Host opening: Hotswap 2.5": 1 · 5.25" Drives: 1. Hot-swap map: 2.5" Slim SATA/ SAS. Interface language on the original spec/feature list: SATA 6Gb/s · SAS. Cooling: 1x40mm. Envelope (W×H×D): 5.75" x 1.65" x 6.30" · 146.1 mm x 41.9 mm x 160.0 mm.
Key Features
Engineered for reliability and integration.
- Supports HDD thickness 7mm or less
- Plug & play, hot-swappable

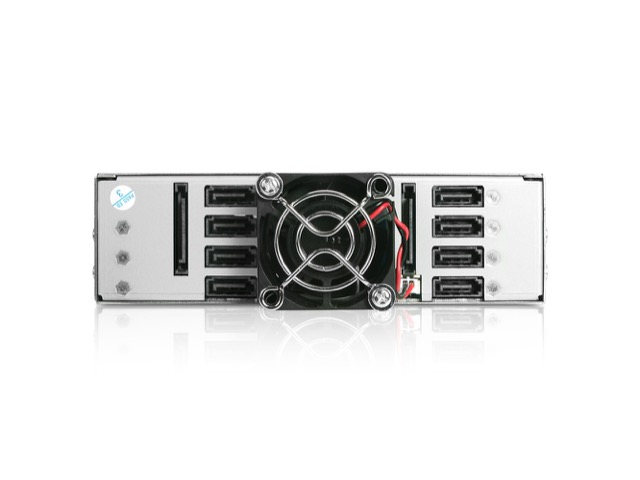

- Built-in 40mm cooling fan
- LEDs for power and HDD accessing
- Support 8x 2.5" slim SATA SAS 6Gb/s drives
Specifications
Technical specifications.
| Model Number | BPU-128DE-SS |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Tray |
| Host Bay | Hotswap 2.5": 1 · 5.25" Drives: 1 |
| Drive Bays | 2.5" Slim SATA/ SAS |
| Interface | SATA 6Gb/s · SAS |
| Indicators | Power, HDD |
| Material of Handle | Steel |
| Material of Main Chassis | Steel |
| Cooling Fan | 1x40mm |
| Dimensions | 5.75" x 1.65" x 6.30" · 146.1 mm x 41.9 mm x 160.0 mm |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" |
Applications
Where the BPU-128DE-SS is deployed.
BPU-128DE-SS SATA/SAS bay conversion
Convert Hotswap 2.5": 1 · 5.25" Drives: 1 into 2.5" Slim SATA/ SAS hot-swap capacity for workstation and industrial storage.
BPU-128DE-SS serviceable tray
Tray carrier lets a technician extract the drive without opening the host chassis — field-replaceable storage.
BPU-128DE-SS actively cooled bay
Specified cooling: 1x40mm — keep 12Gb/s or dense 2.5" packs inside the published thermal envelope.
BPU-128DE-SS OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPU-128DE-SS to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPU-128DE-SS: tray / carrier finish and backplane connector matching
Fan option around the published 1x40mm configuration
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
