Drive Cages & Hot-swap Modules / BPX-35U3-SA
3.5" to 2.5" SATA 6 Gbps HDD SSD Internal and External USB 3.0 Hot-swap Rack
BPX-35U3-SA — 3.5" to 2.5" SATA 6 Gbps HDD SSD Internal and External USB 3.0 Hot-swap Rack. Tray; Hotswap 2.5": 1 · 3.5" host 1; 2.5" SATA I/II/III; SATA 6Gb/s; Plastic bezel.
Product Overview
What the BPX-35U3-SA is built for.
Introducing the innovative 2.5" SATAIII internal and external HDD/SSD which was designed with graphic designers in mind. Because of its quick access design, a user is able to replace, exchange, or access another drive with ease. This drive case also has the capability of being accessed like an external drive. External HDDs has always been used for increased storage space on a desktop, laptop, or server and since the demand for a lightweight, portable solution has been on the rise, this is a great solution to that demand. What is an interesting plus is that it can be used with gaming consoles like the PS4 and XBOX ONE for increased storage space via the USB port. Since it can be used as an external hard drive, you can increase storage on such products like a DVR surveillance system, HTPC home theater/entertainment system, servers, and any product that has a USB port. BPX-35U3-SA can be used with any server, desktop, or laptop system that has access to USB or 3.5" internal bay. Because of its versatility, slim design, and light weight, it can be used with many applications like video recorders, entertainment systems, multimedia/gaming devices, and file backup/transfer. This drive case is compatible with any standard 2.5" SATAIII HDD/SSD between 7mm to 9mm high and an available 3.5" internal drive space. The BPX-35U3-SA includes a USB 3.0 cable which transmits at 5 Gbps vs the USB 2.0 at 480 Mbps. This means that you can transfer data at high rate of speed. On top of that, since it doesn need too much power to run, the USB 3.0 provides enough power to the drive case to run the 2.5" HDD/SSD. This is a huge plus since this is designed to be lightweight and portable, all the cables you will need to bring with you is the USB 3.0 cable. The BPX-35U3-SA gives you the flexibility to bring your storage with you quickly and easily without having to deal with numerous cables. When at the office or at home, just insert the enclosure into the rack and you will instantly have a super-speed SATA connection to your drive. If you need to take it with you, just eject the enclosure, grab the included USB 3.0 cable, and you?ll still have access to all of your data while on the road. BPX-35U3-SA is filed as an Anhsin Internal HDD Cage under Tray. Host opening: Hotswap 2.5": 1 · 3.5" Drives: 1. Hot-swap map: 2.5" SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s · USB 3.0. Envelope (W×H×D): 4.00" x 0.99" x 6.52" · 101.6 mm x 25.1 mm x 165.6 mm.
Key Features
Engineered for reliability and integration.
- Easily connect a 2.5" HDD/SSD to your computer with this rack

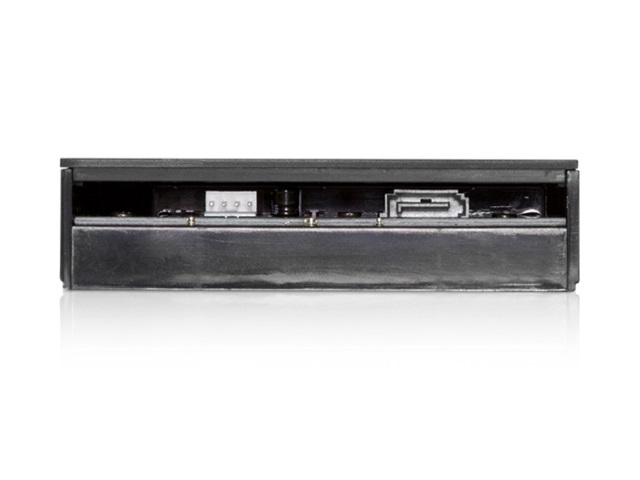

- Internally: use the SATA interface to connect to motherboard
- Externally: connect to any computer with USB3.0 or USB2.0 connectors available

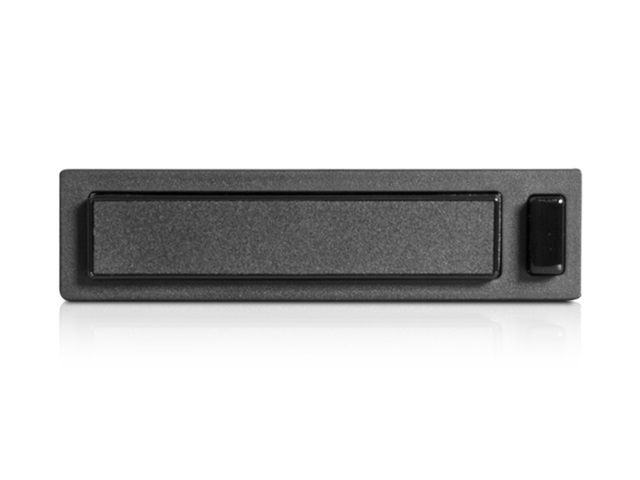

- Designed to minimize dust intrusion: the hard drive entry door closes automatically when hard drive enclosure ejected
- Aluminum alloy hard drive enclosure body for strength and efficient heat dissipation
- LED indicators for power & HDD activity
- Fits in any standard 3.5" drive bay
- Compatible with 7mm & 9.5mm 2.5" SATA I/II/III HDD and SSD
Specifications
Technical specifications.
| Model Number | BPX-35U3-SA |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Tray |
| Host Bay | Hotswap 2.5": 1 · 3.5" Drives: 1 |
| Drive Bays | 2.5" SATA I/II/III |
| Interface | SATA 6Gb/s · USB 3.0 |
| Indicators | Solid blue: power on. Blinking blue: HDD accessing |
| Material of Front Bezel | Plastic |
| Color of Front Bezel | Black |
| Material of Main Chassis | Aluminum and Plastic |
| Color of Main Chassis | Black |
| Dimensions | 4.00" x 0.99" x 6.52" · 101.6 mm x 25.1 mm x 165.6 mm |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" |
Applications
Where the BPX-35U3-SA is deployed.
BPX-35U3-SA SATA/SAS bay conversion
Convert Hotswap 2.5": 1 · 3.5" Drives: 1 into 2.5" SATA I/II/III hot-swap capacity for workstation and industrial storage.
BPX-35U3-SA serviceable tray
Tray carrier lets a technician extract the drive without opening the host chassis — field-replaceable storage.
BPX-35U3-SA front USB 3.0 access
Front connector USB 3.0 for desktop/workstation front-panel data plus the internal drive map.
BPX-35U3-SA OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPX-35U3-SA to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPX-35U3-SA: tray / carrier finish and backplane connector matching
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The BPX-35U3-SA is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the BPX-35U3-SA with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the BPX-35U3-SA and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
