Drive Cages & Hot-swap Modules / BPN-124K-HD
Trayless 5.25" to 4x 2.5" 12Gb/s HDD SSD Hot-swap Rack
BPN-124K-HD — Trayless 5.25" to 4x 2.5" 12Gb/s HDD SSD Hot-swap Rack. Trayless; Hotswap 2.5": 1 · 5.25" host 1; 2.5" SAS I/II/III & SATA I/II/III; 12Gb/s; Key Lock. Listed as Coming Soon on iStarUSA.
Product Overview
What the BPN-124K-HD is built for.

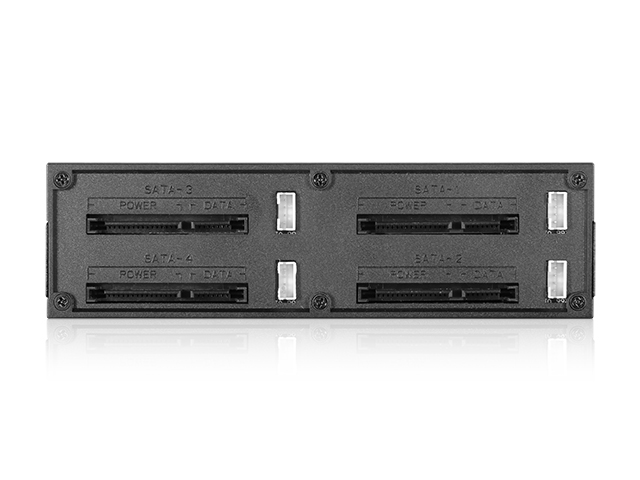

The 2.5" Disk Array BPN-124K-HD to be set up in various configurations as RAID 0, RAID 1, RAID 5 or JBOD as individual drives. The unit is featured with HDD hot-swappable, which can remove or add HDDs to the system without turning off the computers. The back plane connection include SATA connectors and each drive is equipped with power and drive activity LEDs. BPN-124K-HD is filed as an Anhsin Internal HDD Cage under Trayless. Host opening: Hotswap 2.5": 1 · 5.25" Drives: 1. Hot-swap map: 2.5" SAS I/II/III & SATA I/II/III. Interface language on the original spec/feature list: 12Gb/s · SATA 6Gb/s · SAS. Security: Key Lock. Envelope (W×H×D): 5.83" x 1.65" x 5.59" · 148.1 mm x 41.9 mm x 142.0 mm. Availability on iStarUSA: Coming Soon.
Key Features
Engineered for reliability and integration.
- Plug & Play, Hot Swappable
- LED for Power & HDD Activity
- High Performance Transfer Rate up to 12Gb/s
- Support 4x 2.5" SAS I/II/III & SATA I/II/III HDD/SSD

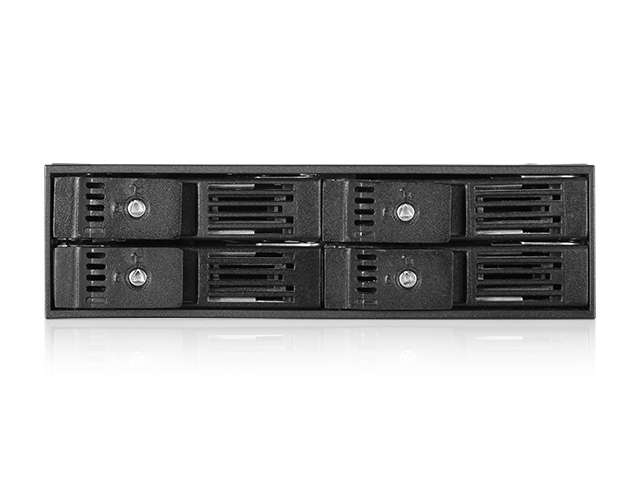

- Constructed with metal body, plastic ABS front panel, and metal latch for heavy use
- Support 2.5" HDD/SSD thickness from 9.5 to 12.5mm
Specifications
Technical specifications.
| Model Number | BPN-124K-HD |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Trayless |
| Host Bay | Hotswap 2.5": 1 · 5.25" Drives: 1 |
| Drive Bays | 2.5" SAS I/II/III & SATA I/II/III |
| Interface | 12Gb/s · SATA 6Gb/s · SAS |
| Indicators | Power On: solid blue/ · HDD Access: blue blinking |
| Security | Key Lock |
| Material of Handle | Plastic with Metal Latch |
| Material of Main Chassis | SECC Steel |
| Color of Main Chassis | Black |
| Dimensions | 5.83" x 1.65" x 5.59" · 148.1 mm x 41.9 mm x 142.0 mm |
| Notes | - not compatible with iStarUSA D Storm chassis on the right side 5.25" drive bays |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" 12Gb/s BP |
Applications
Where the BPN-124K-HD is deployed.
BPN-124K-HD SAS 12Gb/s expansion
Add 2.5" SAS I/II/III & SATA I/II/III at SAS 12Gb/s (SATA 6Gb/s where listed) inside Hotswap 2.5": 1 · 5.25" Drives: 1 for RAID/HBA storage growth.
BPN-124K-HD tool-less insert
Trayless path: the drive seats on the backplane directly, reducing parts count in dense 5.25" stacks.
BPN-124K-HD locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
BPN-124K-HD OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPN-124K-HD to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPN-124K-HD: trayless backplane connector and bezel stack matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
