Drive Cages & Hot-swap Modules / T-35K25V-HD
Trayless 3.5" to 2.5" 12Gb/s HDD SSD Hot-swap Anti-vibration Rack
T-35K25V-HD — Trayless 3.5" to 2.5" 12Gb/s HDD SSD Hot-swap Anti-vibration Rack. Trayless; Hotswap 2.5": 1 · 3.5" host 1; 2.5" SAS I/II/III & SATA I/II/III; 12Gb/s; Key Lock. Listed as Coming Soon on iStarUSA.
Product Overview
What the T-35K25V-HD is built for.

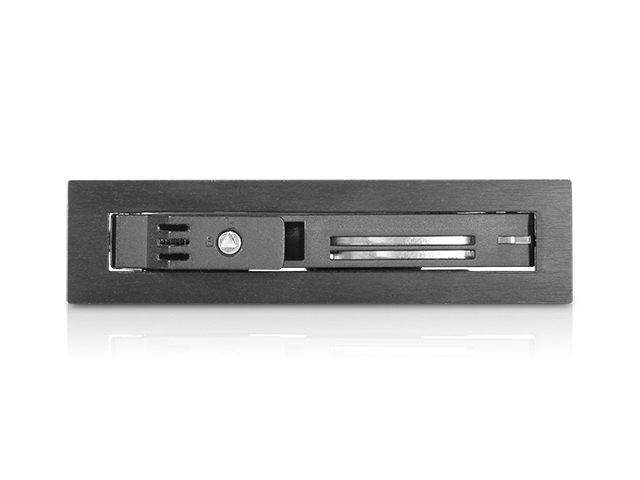

T-35K25V-HD is a stainless steel drive cage with anti-vibration mechanism design that takes a standard 3.5" drive space to give one 2.5" hotswappable and trayless drive bay. The aluminum brush finish front bezel with anti-vibration mechanism provides an unique hot-swappable solution. This device provides flexibility to fully utilize your system chassis. T-35K25V-HD is filed as an Anhsin Internal HDD Cage under Trayless. Host opening: Hotswap 2.5": 1 · 3.5" Drives: 1. Hot-swap map: 2.5" SAS I/II/III & SATA I/II/III. Interface language on the original spec/feature list: 12Gb/s · SATA 6Gb/s · SAS. Security: Key Lock. Envelope (W×H×D): 3.98" x 0.98" x 5.20" · 101.1 mm x 24.9 mm x 132.1 mm. Availability on iStarUSA: Coming Soon.
Key Features
Engineered for reliability and integration.
- High Performance Transfer Rate up to 12Gb/s
- Fit one 3.5" Drive Bay for one 2.5" Hotswap and Trayless Drive Bay
- Energy Saving on Using 2.5" HDD or SSD
- LED Indicators for Power & HDD access
- Security Key Lock
- Constructed with metal body and metal latch for heavy use
- Stainless steel material to avoid rust problem after use
- Anti-vibration Design
- Support 2.5" HDD/SSD from 7mm to 9.5mm thickness
Specifications
Technical specifications.
| Model Number | T-35K25V-HD |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Trayless |
| Host Bay | Hotswap 2.5": 1 · 3.5" Drives: 1 |
| Drive Bays | 2.5" SAS I/II/III & SATA I/II/III |
| Interface | 12Gb/s · SATA 6Gb/s · SAS |
| Indicators | Power On: solid blue/ · HDD Access: amber |
| Security | Key Lock |
| Material of Handle | Plastic with Metal Latch |
| Material of Main Chassis | Stainless Steel |
| Color of Main Chassis | Black |
| Dimensions | 3.98" x 0.98" x 5.20" · 101.1 mm x 24.9 mm x 132.1 mm |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" 12Gb/s BP |
Applications
Where the T-35K25V-HD is deployed.
T-35K25V-HD SAS 12Gb/s expansion
Add 2.5" SAS I/II/III & SATA I/II/III at SAS 12Gb/s (SATA 6Gb/s where listed) inside Hotswap 2.5": 1 · 3.5" Drives: 1 for RAID/HBA storage growth.
T-35K25V-HD tool-less insert
Trayless path: the drive seats on the backplane directly, reducing parts count in dense 5.25" stacks.
T-35K25V-HD locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
T-35K25V-HD OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the T-35K25V-HD to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
T-35K25V-HD: trayless backplane connector and bezel stack matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
