Drive Cages & Hot-swap Modules / BPN-DE230SS
Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
BPN-DE230SS — Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack. Trayless; Hotswap 3.5": 1 · 5.25" host 2; 3.5" SAS I/II & SATA I/II/III; SATA 6Gb/s; Key Lock.
Product Overview
What the BPN-DE230SS is built for.
BPN-DE230SS is iStarUSAs third generation tray-less hot-swap hard drive cage. It features the latest transfer rate technology of 6.0 Gb/s (SATA I/II/III and SAS I/II), and is RAID capable. It also comes with adjustable fans speed and ultra-quiet cooling fans. The LED Display lights features the new blue light by popular demand. Heat dissipation is enhanced by the full aluminum construction and a 70mm fan. SATA power connector increases compatibility with most power supplies. The metal key locks help secure your hard drives and prevent unauthorized access. Converting two standard 5.25" drive bays into three usable hard drive slots, it is economically designed to maximize your investment. BPN-DE230SS is filed as an Anhsin Internal HDD Cage under Trayless. Host opening: Hotswap 3.5": 1 · 5.25" Drives: 2. Hot-swap map: 3.5" SAS I/II & SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s · SAS. Security: Key Lock. Cooling: 1x70mm. Envelope (W×H×D): 5.71" x 3.35" x 7.64" · 145.0 mm x 85.1 mm x 194.1 mm.
Key Features
Engineered for reliability and integration.
- Aluminum Frame, designed for heavy-duty purpose
- Support SAS I/II, SATA I/II/III Hard Drives
- Data Transfer Rate up to 6.0 Gb/s
- Integrative shaping aluminum design for quickest heat sink

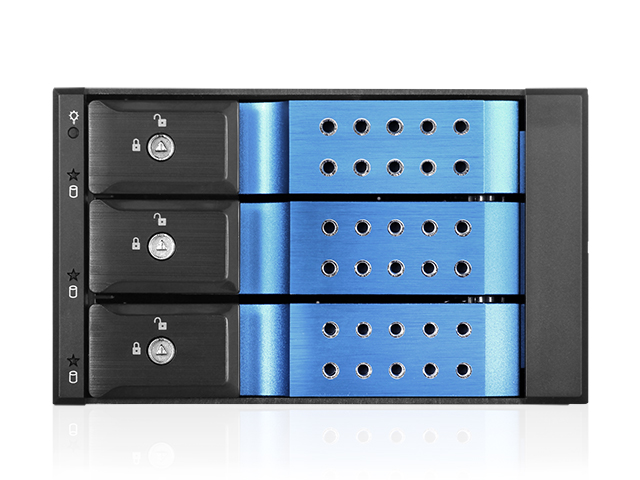

- Aluminum front bezel with metal key lock mechanism for double safety

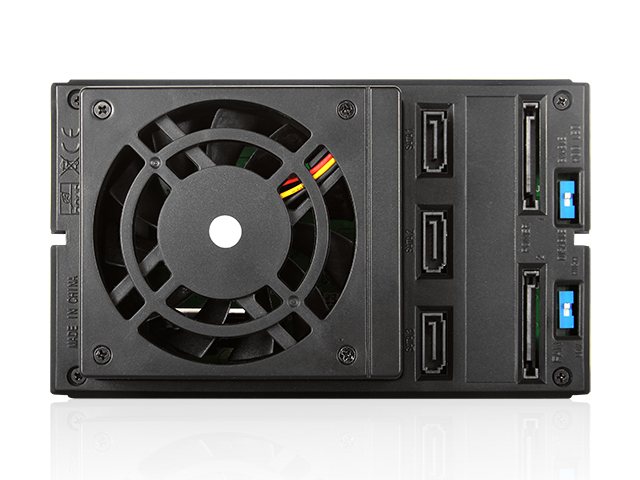

- Removable fan cover for easy maintenance
- Multi-functional LED Indication
- Support Hot-Swap & RAID Configuration (need an additional RAID controller)
- Low-noise Design with Fan-speed Control
- 12TB Hard Drives Compatible
Specifications
Technical specifications.
| Model Number | BPN-DE230SS |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Trayless |
| Host Bay | Hotswap 3.5": 1 · 5.25" Drives: 2 |
| Drive Bays | 3.5" SAS I/II & SATA I/II/III |
| Interface | SATA 6Gb/s · SAS |
| Indicators | Blue for Power on/ · Purple for HDD Access |
| Security | Key Lock |
| Material of Front Bezel | Aluminum |
| Color of Front Bezel | Black/ Blue/ Red/ Silver |
| Material of Handle | Aluminum |
| Material of Main Chassis | Aluminum |
| Color of Main Chassis | Black |
| Cooling Fan | 1x70mm |
| Ordering Information | Black Handle:BPN-DE230SS-BLACK · Blue Handle:BPN-DE230SS-BLUE · Red Handle:BPN-DE230SS-RED · Silver Handle:BPN-DE230SS-SILVER |
| Dimensions | 5.71" x 3.35" x 7.64" · 145.0 mm x 85.1 mm x 194.1 mm |
| Certification | RoHS compliant |
| Drive Size Class | 3.5" |
Applications
Where the BPN-DE230SS is deployed.
BPN-DE230SS SATA/SAS bay conversion
Convert Hotswap 3.5": 1 · 5.25" Drives: 2 into 3.5" SAS I/II & SATA I/II/III hot-swap capacity for workstation and industrial storage.
BPN-DE230SS tool-less insert
Trayless path: the drive seats on the backplane directly, reducing parts count in dense 5.25" stacks.
BPN-DE230SS locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
BPN-DE230SS OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPN-DE230SS to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPN-DE230SS: trayless backplane connector and bezel stack matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Fan option around the published 1x70mm configuration
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The BPN-DE230SS is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the BPN-DE230SS with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the BPN-DE230SS and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
