Drive Cages & Hot-swap Modules / BPU-124DE-SS
5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-124DE-SS — 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack. Tray; Hotswap 2.5": 1 · 5.25" host 1; 2.5" SAS I/II & SATA I/II/III; SATA 6Gb/s; Key Lock.
Product Overview
What the BPU-124DE-SS is built for.
High availability storage in compact design, BPU-124DE-SS adds extra storage and hot-swap capability to satisfy any application needs. The BPU-124DE-SS is constructed of aluminum material that provides best heat dissipation required for high performance 2.5" SATA and SAS drives. The housing is designed with excellent front to back airflow cooling with two 40mm fans. BPU-124DE-SS is an ideal solution for 2.5" HDD RAID and JBOD applications. BPU-124DE-SS is filed as an Anhsin Internal HDD Cage under Tray. Host opening: Hotswap 2.5": 1 · 5.25" Drives: 1. Hot-swap map: 2.5" SAS I/II & SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s · SAS. Security: Key Lock. Cooling: 2x40mm. Envelope (W×H×D): 5.75" x 1.65" x 7.09" · 146.1 mm x 41.9 mm x 180.1 mm.
Key Features
Engineered for reliability and integration.
- High Performance Transfer Rate Up to 6.0 Gb/s
- All Aluminum Material Solid Construction
- Plug & Play, Hot Swappable

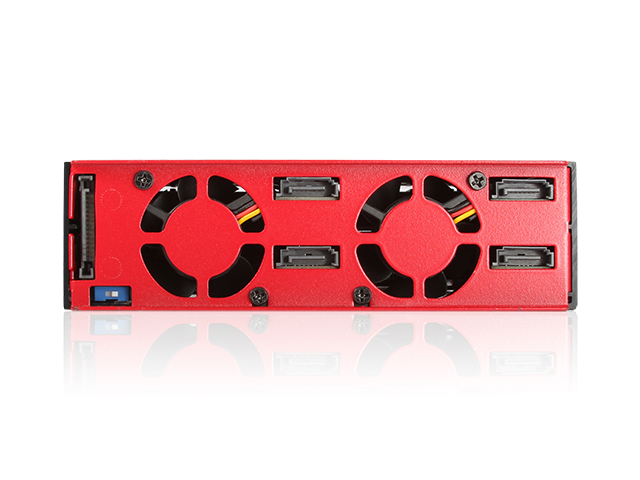

- Built-In 2 x 40mm Cooling Fans
- LEDs for Power & HDD Activity
- Supports 4 x 2.5" SAS I/II (Primary Channel) and SATA I/II/III HDDs
- Support HDD Thickness up to 15 mm
Specifications
Technical specifications.
| Model Number | BPU-124DE-SS |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Tray |
| Host Bay | Hotswap 2.5": 1 · 5.25" Drives: 1 |
| Drive Bays | 2.5" SAS I/II & SATA I/II/III |
| Interface | SATA 6Gb/s · SAS |
| Indicators | Blue:power on. Fast Red Blinking:overheating. Slow Red Blinking:fan failure |
| Security | Key Lock |
| Material of Main Chassis | Aluminum |
| Color of Main Chassis | Black |
| Cooling Fan | 2x40mm |
| Dimensions | 5.75" x 1.65" x 7.09" · 146.1 mm x 41.9 mm x 180.1 mm |
| Notes | - HTS code: 8573.30.5100. ECCN: EAR99 |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" |
Applications
Where the BPU-124DE-SS is deployed.
BPU-124DE-SS SATA/SAS bay conversion
Convert Hotswap 2.5": 1 · 5.25" Drives: 1 into 2.5" SAS I/II & SATA I/II/III hot-swap capacity for workstation and industrial storage.
BPU-124DE-SS serviceable tray
Tray carrier lets a technician extract the drive without opening the host chassis — field-replaceable storage.
BPU-124DE-SS locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
BPU-124DE-SS OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPU-124DE-SS to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPU-124DE-SS: tray / carrier finish and backplane connector matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Fan option around the published 2x40mm configuration
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The BPU-124DE-SS is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the BPU-124DE-SS with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the BPU-124DE-SS and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
