Drive Cages & Hot-swap Modules / BPU-124V2-SS
5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-124V2-SS — 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack. Tray; Hotswap 2.5": 1 · 5.25" host 1; 2.5" SAS I/II & SATA I/II/III; SATA 6Gb/s; Key Lock. Build-to-order on the original listing.
Product Overview
What the BPU-124V2-SS is built for.

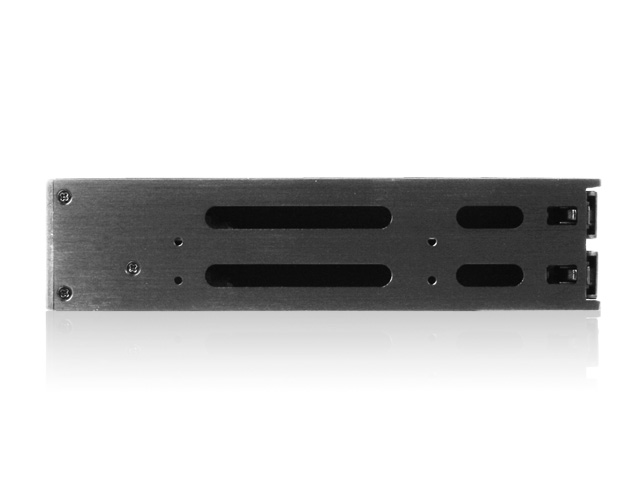

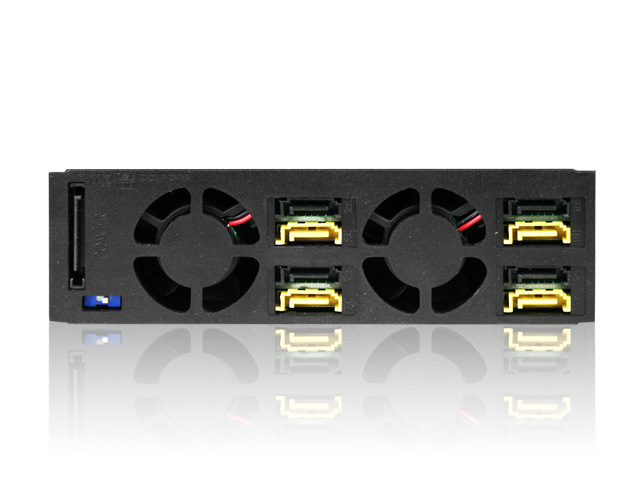

Constructed in light weight durable aluminum, the 2.5" Disk Array BPU-124V2-SS chassis is well ventilated with 2 cooling fans to ensure effective heat dissipation on all 4 drives. The back plane connection include both SAS and SATA connectors and each drive drawer is equipped with power and drive access LEDs. BPU-124V2-SS is filed as an Anhsin Internal HDD Cage under Tray. Host opening: Hotswap 2.5": 1 · 5.25" Drives: 1. Hot-swap map: 2.5" SAS I/II & SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s · SAS. Security: Key Lock. Cooling: 2x40mm. Envelope (W×H×D): 5.75" x 1.65" x 6.81" · 146.1 mm x 41.9 mm x 173.0 mm. Availability on iStarUSA: Build-to-Order.
Key Features
Engineered for reliability and integration.
- All Aluminum Material Solid Construction for Best Heat Dissipation
- Support HDD Thickness from 9.5 to 15mm
- Plug & Play, Hot Swappable
- Built-in 2 x 40mm Cooling Fans

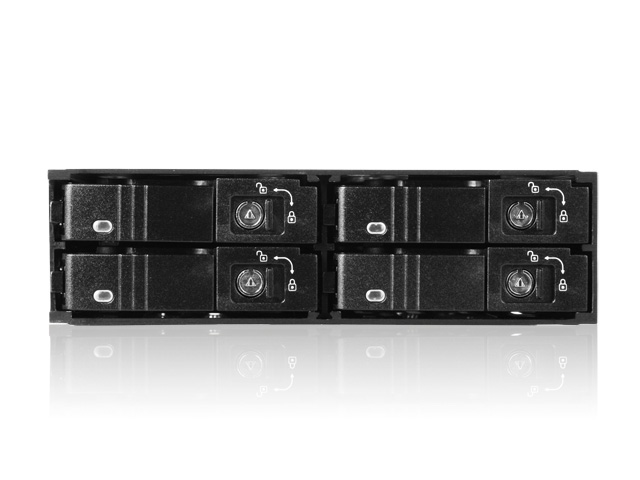

- LED for Power & HDD Activity
- High Performance Transfer Rate up to 6.0 Gb/s
- Support 4 x 2.5" SAS I/II (Dual Channel) & SATA I/II/III HDDs
Specifications
Technical specifications.
| Model Number | BPU-124V2-SS |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Tray |
| Host Bay | Hotswap 2.5": 1 · 5.25" Drives: 1 |
| Drive Bays | 2.5" SAS I/II & SATA I/II/III |
| Interface | SATA 6Gb/s · SAS |
| Indicators | Power On: solid blue/ · HDD Access: blue/red blinking |
| Security | Key Lock |
| Material of Main Chassis | Aluminum |
| Color of Main Chassis | Black |
| Cooling Fan | 2x40mm |
| Dimensions | 5.75" x 1.65" x 6.81" · 146.1 mm x 41.9 mm x 173.0 mm |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" |
Applications
Where the BPU-124V2-SS is deployed.
BPU-124V2-SS SATA/SAS bay conversion
Convert Hotswap 2.5": 1 · 5.25" Drives: 1 into 2.5" SAS I/II & SATA I/II/III hot-swap capacity for workstation and industrial storage.
BPU-124V2-SS serviceable tray
Tray carrier lets a technician extract the drive without opening the host chassis — field-replaceable storage.
BPU-124V2-SS locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
BPU-124V2-SS OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPU-124V2-SS to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPU-124V2-SS: tray / carrier finish and backplane connector matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Fan option around the published 2x40mm configuration
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The BPU-124V2-SS is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the BPU-124V2-SS with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the BPU-124V2-SS and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
