Drive Cages & Hot-swap Modules / BPU-126-SA

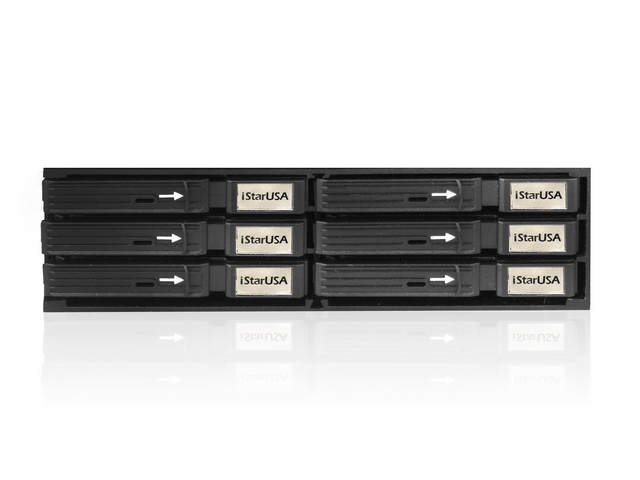

5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SA — 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack. Tray; Hotswap 2.5": 1 · 5.25" host 1; 2.5" SATA I/II/III; SATA 6Gb/s; 2x40mm fan. Special order on the original listing.
Product Overview
What the BPU-126-SA is built for.
The 2.5" Disk Array BPU-126-SA, the Disk Array to be set up in various configurations: as RAID 0, RAID 1, RAID 5 or JBOD, as individual drive, or whatever the mix that best fits the application. The Disk Array can start with as little as one hard drive and then expands as needed. Hard Drive can also be removed or added to the system without turning off your system power or restarting your computer. BPU-126-SA is filed as an Anhsin Internal HDD Cage under Tray. Host opening: Hotswap 2.5": 1 · 5.25" Drives: 1. Hot-swap map: 2.5" SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s. Cooling: 2x40mm. Envelope (W×H×D): 5.75" x 1.65" x 7.00" · 146.1 mm x 41.9 mm x 177.8 mm. Availability on iStarUSA: Special Order.
Key Features
Engineered for reliability and integration.
- All Aluminum Material Solid Construction for Best Heat Dissipation
- Support HDD Thickness 9.5 mm
- Plug & Play, Hot Swappable

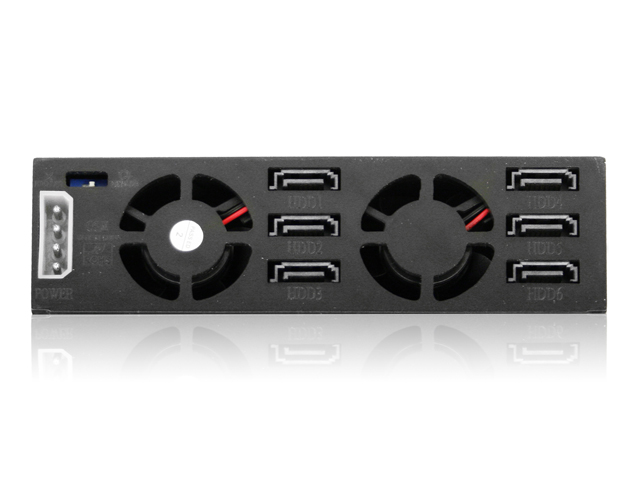

- Built-in 2 x 40mm Cooling Fans
- LED for Power and HDD Accessing
- High Performance Transfer Rate up to 6.0 Gb/s
- Support 6 x 2.5" SATA I/II/III HDDs
Specifications
Technical specifications.
| Model Number | BPU-126-SA |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Tray |
| Host Bay | Hotswap 2.5": 1 · 5.25" Drives: 1 |
| Drive Bays | 2.5" SATA I/II/III |
| Interface | SATA 6Gb/s |
| Indicators | Power, HDD |
| Material of Main Chassis | Aluminum |
| Color of Main Chassis | Black |
| Cooling Fan | 2x40mm |
| Dimensions | 5.75" x 1.65" x 7.00" · 146.1 mm x 41.9 mm x 177.8 mm |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" |
Applications
Where the BPU-126-SA is deployed.
BPU-126-SA SATA/SAS bay conversion
Convert Hotswap 2.5": 1 · 5.25" Drives: 1 into 2.5" SATA I/II/III hot-swap capacity for workstation and industrial storage.
BPU-126-SA serviceable tray
Tray carrier lets a technician extract the drive without opening the host chassis — field-replaceable storage.
BPU-126-SA actively cooled bay
Specified cooling: 2x40mm — keep 12Gb/s or dense 2.5" packs inside the published thermal envelope.
BPU-126-SA OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPU-126-SA to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPU-126-SA: tray / carrier finish and backplane connector matching
Fan option around the published 2x40mm configuration
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The BPU-126-SA is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the BPU-126-SA with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the BPU-126-SA and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
