Industrial Rackmount Chassis / D-200-FS
2U Compact Stylish Rackmount Chassis with Front-mounted ATX Power Supply
A 20.8"-deep 2U chassis that moves the standard ATX power supply to the front — high-wattage builds without the depth penalty, ideal for shallow racks and AV cabinets.
Product Overview
What the D-200-FS is built for.

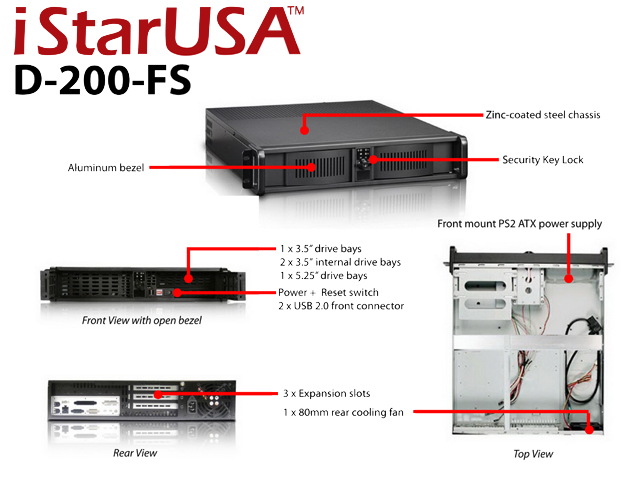

The D-200-FS brings compact and power into balance for 2U rackmount chassis. Compact 2U that is compatible with standard ATX power supply to support system with high power needs. D-200-FS has total of three 3.5 drive storage that supports RAID configuration as well as one 5.25 drive bay space for optical or hot-swap device. Enforced power supply cooling and CoolingFan ball-bearing fans ensure system optimal performance. Optional 6 slots low-profile backplane to support additional expansion cards.
Key Features
Engineered for reliability and integration.

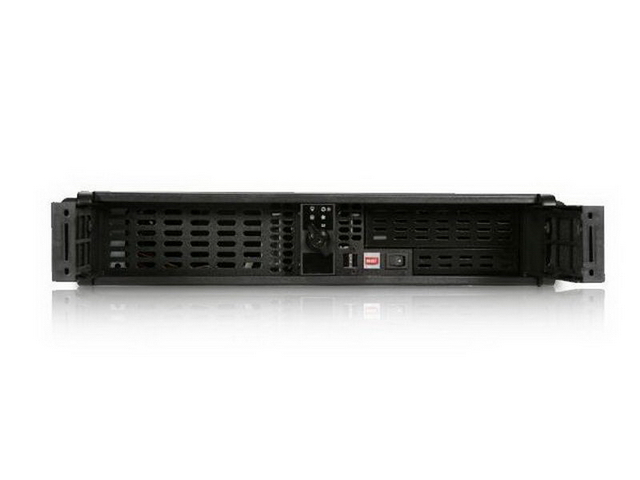

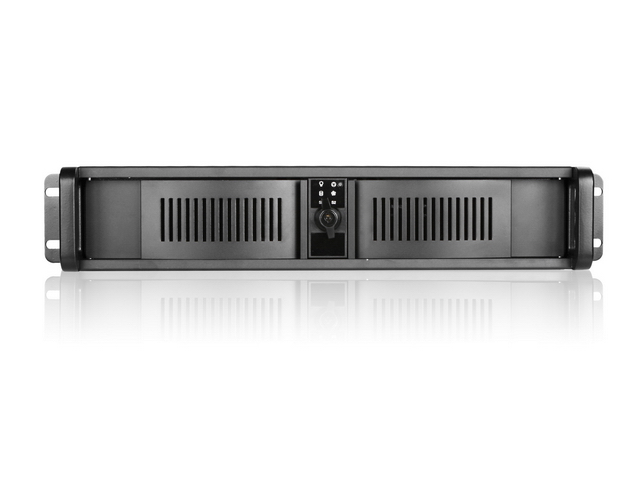

- Three-way aluminum front panel with key locks for secured, service-friendly front access
- Front-access 2 × USB 3.0 for on-site service and commissioning
- 80mm x1 ball-bearing cooling fans for sustained airflow under load

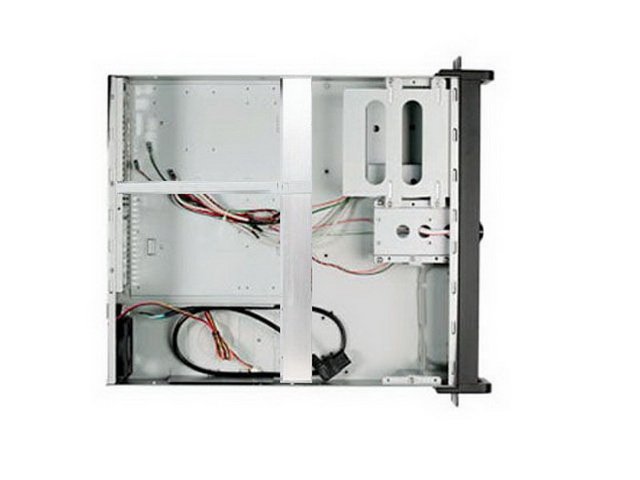

- Front-mounted standard ATX power supply — full wattage without extra rack depth, serviceable from the front
- Removable, washable air filter for dusty industrial environments
- Power / HDD LED indicators (with optional TC-ISF08 sensor board for fan and temperature status)
- Power and alarm-reset switches for field diagnostics
- Optional aluminum chassis body for lower weight and enhanced thermal dissipation
Specifications
Technical specifications.
| Model Number | D-200-FS |
|---|---|
| Product Category | Industrial Rackmount Chassis |
| Form Factor | 2U |
| Motherboard Support | 12 x 9.6 (ATX, microATX, mini-ITX) |
| Drive Bays | 3.5" Drives: 1 · 3.5" Drive (internal): 2 · 5.25" Drives: 1 |

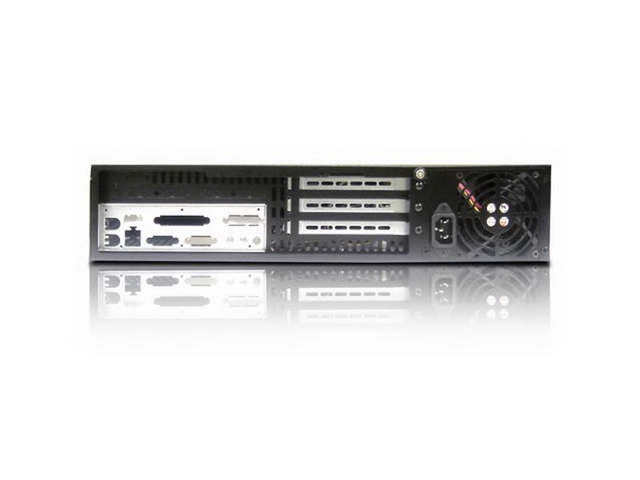

| Expansion Slots | 3 |
| Cooling | 1x80mm, removable & washable air filter |
| PSU Support | PS2 - up to 160mm deep |
| Front Connector | 2x USB 3.0 |
| Security | Front Bezel Key Lock |
| Material | 1.2mm SECC Zinc-Coated Steel (Japan Made), aluminum alloy front bezel |
| Dimensions | 19.00" x 3.50" x 20.80" · 482.6 mm x 88.9 mm x 528.3 mm |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Certification | RoHS compliant |
| Ordering Information | Black Bezel:D-200-FS · Blue Bezel:D-200-FS-BLUE · Red Bezel:D-200-FS-RED · Silver Bezel:D-200-FS-SILVER |
| Notes | compatible with standard ATX PSU with length no more than 160mm |
Downloads
Documentation & drawings.
Applications
Where the D-200-FS is deployed.
Industrial PC
Shallow-depth 2U control servers with full ATX power.
Data Center
High-wattage 2U nodes in 800mm cabinets.
Machine Vision
Three slots for frame grabbers and industrial I/O.
Factory Automation
Filtered front intake for dusty plant-floor racks.
Storage Server
Three 3.5" drives for compact RAID sets.
OEM/ODM Hardware Platform
Front-panel, branding, and PSU-window customization base.
Customization Options
Adapt the D-200-FS to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Storage Configuration
Power Supply Options
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The D-200-FS is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the D-200-FS with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the D-200-FS and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
