Industrial Rackmount Chassis / D-200
2U Compact Stylish Industrial Rackmount Chassis
A 2U full-size-I/O rackmount chassis with a patented lockable aluminum front bezel — built for compact ATX servers, AV racks, and OEM/ODM appliance programs.
Product Overview
What the D-200 is built for.
The D-200 is a 2U compact industrial rackmount chassis from the D Storm platform. Its full-size I/O opening supports standard ATX, microATX, and mini-ITX motherboards, while the front bays accept hot-swap cages for RAID configurations with up to four drives. Three expansion slots host PCI, PCI-X, AGP, or PCI-Express add-on cards. The patented aluminum front bezel with key lock, removable washable air filter, and front-access USB 3.0 make it equally suitable for AV racks, industrial control cabinets, and data-center deployment. An optional aluminum body reduces weight and improves thermal behavior — a common starting point for OEM/ODM branded appliances.
Key Features
Engineered for reliability and integration.

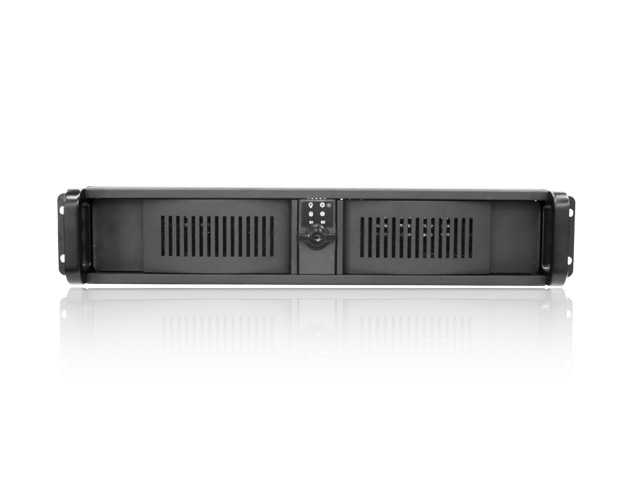

- Patented lockable aluminum front bezel (TW 200281 / 190240, CN 2L01259648.5) — a proven base for custom door, silk-screen, and color programs
- Full-size I/O opening supports ATX, microATX, and mini-ITX motherboards without mechanical rework
- Front bays accept optional hot-swap cages for RAID builds up to four drives

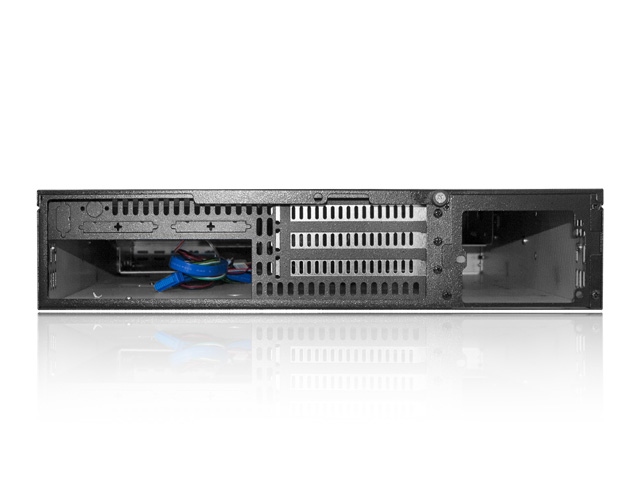

- Three expansion slots for PCI, PCI-X, AGP, or PCI-Express add-on cards
- Front-access 2 × USB 3.0 for on-site service and commissioning
- Removable, washable air filter with 80mm cooling fan for dusty industrial environments
- Power / HDD LEDs plus power and alarm-reset switches for field diagnostics
- Optional aluminum chassis body for lower weight and enhanced thermal dissipation
Specifications
Technical specifications.
| Model Number | D-200 |
|---|---|
| Product Category | Industrial Rackmount Chassis |
| Form Factor | 2U |
| Motherboard Support | 12" × 9.6" — ATX, microATX, mini-ITX |
| Drive Bays | 2 × 3.5" drives, 2 × 5.25" drives (up to 4 drives with hot-swap cage) |
| Expansion Slots | 3 |
| Cooling | 1 × 80mm fan, removable & washable air filter |
| PSU Support | 2U PSU (redundant-capable with DD-200-R2U-BAR cross bar) |
| Front Connector | 2 × USB 3.0 |

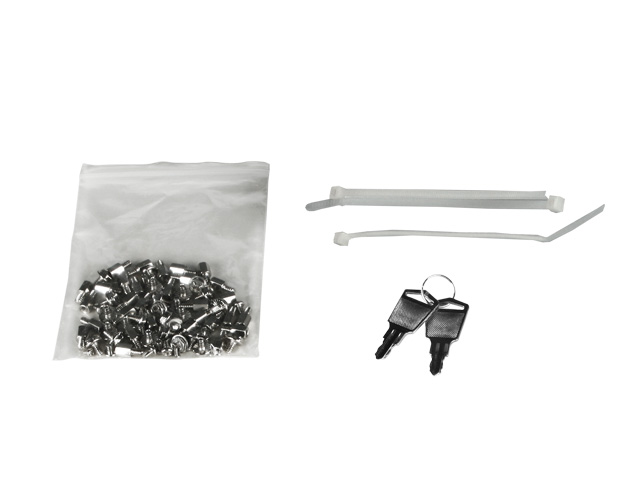

| Security | Front bezel key lock |
| Material | 1.2mm SECC zinc-coated steel (Japan made), aluminum-alloy front bezel; optional aluminum body |
| Dimensions | 19.00" × 3.50" × 20.80" (482.6 × 88.9 × 528.3 mm) |
| Certification | RoHS compliant · ECCN EAR99 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require TC-ISF08 sensor board) |
| Ordering Information | D-200 (black), D-200-BLUE, D-200-RED, D-200-SILVER |
Downloads
Documentation & drawings.
Applications
Where the D-200 is deployed.
Industrial PC
Compact 2U control and automation servers.
Data Center
Space-efficient rack nodes with standard ATX boards.
Machine Vision
Add-on card capacity for frame grabbers and I/O.
Factory Automation
Filtered airflow for dusty plant-floor cabinets.
AV & Broadcast Racks
Stylish aluminum bezel for visible rack installs.
OEM/ODM Hardware Platform
Bezel, branding, and mechanical customization base.
Customization Options
Adapt the D-200 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Storage Configuration
Power Supply Options
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The D-200 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the D-200 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the D-200 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
