Industrial Rackmount Chassis / D-300
3U Compact Stylish Industrial Rackmount Chassis
A 3U rackmount platform with seven full-length expansion slots and four 5.25" bays — engineered for expansion-heavy industrial systems and OEM/ODM appliances.
Product Overview
What the D-300 is built for.
The D-300 is a 3U industrial rackmount chassis in the D Storm platform, designed for systems that need expansion capacity rather than raw drive density. Seven slots accept full-length add-on cards — frame grabbers, motion controllers, GPUs, and network cards — while four 5.25" bays accept optional BPU hot-swap cages for RAID storage. It supports both 1U and 2U power supplies, with PSU lengths up to 250mm when front cages are installed. The patented lockable aluminum bezel, washable air filter, and front USB 3.0 keep it serviceable in the field, and an optional aluminum body (D-300A) reduces weight while improving thermal performance.
Key Features
Engineered for reliability and integration.

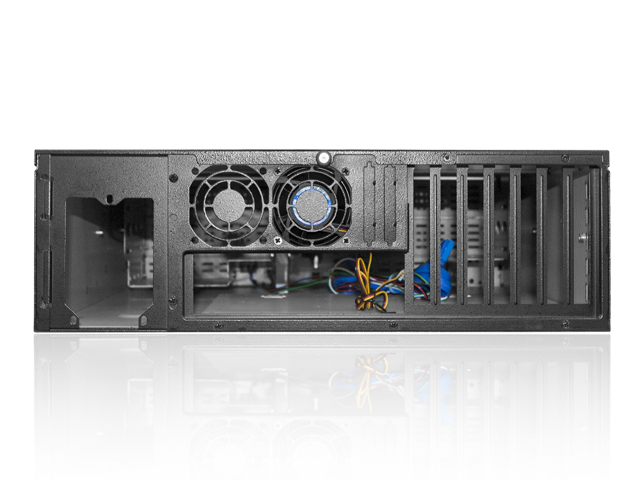

- Seven expansion slots for full-length add-on cards — vision, motion, network, and GPU cards
- Four 5.25" bays accept optional BPU hot-swap cages for RAID storage builds
- Supports both 1U and 2U power supplies, with PSU length up to 250mm when front cages are installed

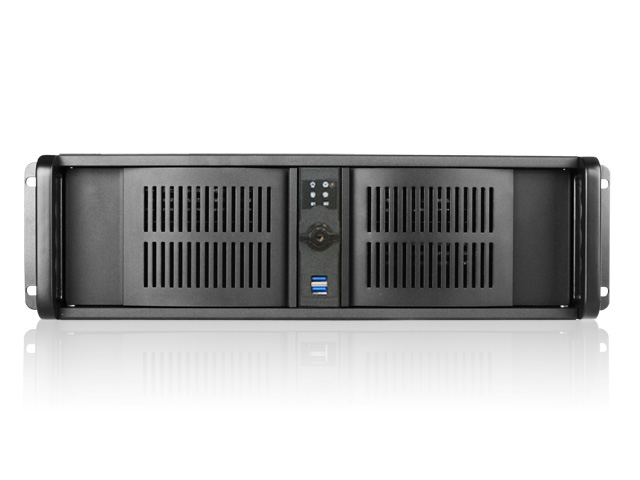

- Patented lockable aluminum front bezel (TW 200281 / 190240, CN 2L01259648.5) ready for custom branding
- Front-access 2 × USB 3.0 for commissioning and on-site maintenance
- Removable, washable air filter with 60mm cooling fan for particulate-heavy environments
- Power / HDD LEDs plus power and alarm-reset switches for rapid field diagnosis
- Optional aluminum body (D-300A) for lighter weight and enhanced heat dissipation
Specifications
Technical specifications.
| Model Number | D-300 |
|---|---|
| Product Category | Industrial Rackmount Chassis |
| Form Factor | 3U |
| Motherboard Support | 12" × 9.6" — ATX, microATX |
| Drive Bays | 2 × 3.5" drives, 1 × internal 3.5", 4 × 5.25" drives |
| Expansion Slots | 7 |
| Cooling | 1 × 60mm fan, removable & washable air filter |
| PSU Support | 1U or 2U PSU (up to 250mm length with front hot-swap cages) |
| Front Connector | 2 × USB 3.0 |
| Security | Front bezel key lock |
| Material | 1.2mm SECC zinc-coated steel (Japan made), aluminum-alloy front bezel; optional aluminum body (D-300A) |
| Dimensions | 19.00" × 5.25" × 20.80" (482.6 × 133.4 × 528.3 mm) |
| Certification | RoHS compliant |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require TC-ISF08 sensor board) |
| Ordering Information | D-300 (black), D-300-BLUE, D-300-RED, D-300-SILVER, D-300A (aluminum) |
Downloads
Documentation & drawings.
Applications
Where the D-300 is deployed.
Machine Vision
Seven slots for frame grabbers and I/O cards.
Industrial PC
Expansion-heavy control and inspection systems.
Factory Automation
Filtered airflow for plant-floor cabinets.
Data Center
3U nodes with flexible PSU and storage options.
Storage Server
Four 5.25" bays convertible to hot-swap cages.
OEM/ODM Hardware Platform
Bezel, slot, and thermal customization base.
Customization Options
Adapt the D-300 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Storage Configuration
Power Supply Options
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The D-300 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the D-300 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the D-300 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
