Industrial Rackmount Chassis / D-200L
2U High Performance Extended-Depth Rackmount Chassis
A 27.9"-deep 2U chassis for Extended-ATX dual-socket boards — three 80mm fans and 2U PSU support for thermally demanding compute nodes.
Product Overview
What the D-200L is built for.
The 2U compact industrial rackmount chassis D Storm D-200L. The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200L support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.
Key Features
Engineered for reliability and integration.

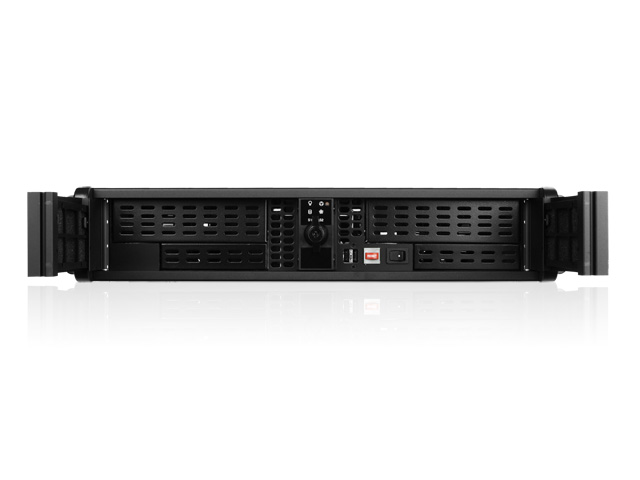

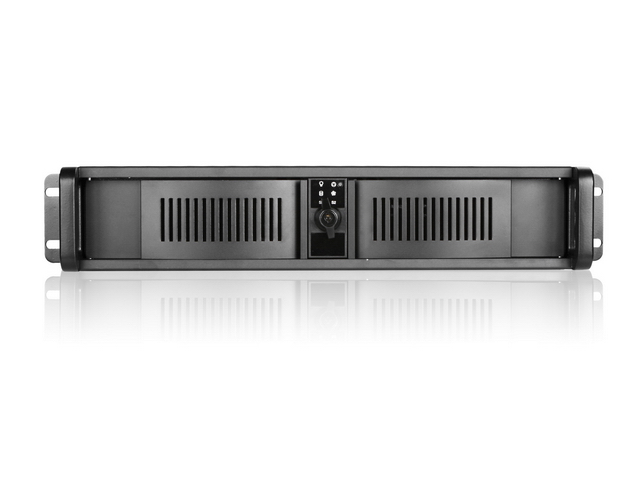

- Patented lockable aluminum front bezel (TW 200281 / 190240, CN 2L01259648.5) — a proven base for custom door, silk-screen, and color programs
- Front-access 2 × USB 2.0 for on-site service and commissioning
- 80mm x3 ball-bearing cooling fans for sustained airflow under load
- Supports Extended-ATX, ATX, and microATX motherboards without mechanical rework
- Removable, washable air filter for dusty industrial environments
- Power / HDD LED indicators (with optional TC-ISF08 sensor board for fan and temperature status)
- Power and alarm-reset switches for field diagnostics
Specifications
Technical specifications.
| Model Number | D-200L |
|---|---|
| Product Category | Industrial Rackmount Chassis |
| Form Factor | 2U |
| Motherboard Support | 12 x 13 (EATX, ATX, microATX) |
| Drive Bays | 3.5" Drives: 2 · 5.25" Drives: 2 |

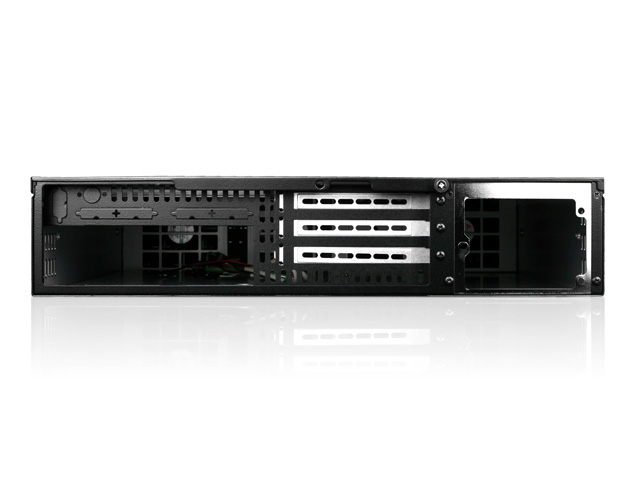

| Expansion Slots | 3 |
| Cooling | 3x80mm, removable & washable air filter |
| PSU Support | 2U |
| Front Connector | 2x USB 2.0 |
| Security | Front Bezel Key Lock |
| Material | 1.2mm SECC Zinc-Coated Steel (Japan Made), aluminum alloy front bezel |
| Dimensions | 19.00" x 3.50" x 27.90" · 482.6 mm x 88.9 mm x 708.7 mm |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Certification | RoHS compliant |
| Ordering Information | Black Bezel:D-200L · Blue Bezel:D-200L-BLUE · Red Bezel:D-200L-RED · Silver Bezel:D-200L-SILVER |
| Notes | low profile backplate option, P/N: DD-200-LP-PCI. · cross bar option for redundant power supplies, P/N: DD-200-R2U-BAR. |
Downloads
Documentation & drawings.
Applications
Where the D-200L is deployed.
Industrial PC
Dual-socket 2U compute in industrial cabinets.
Data Center
High-performance 2U rack nodes with EATX boards.
Machine Vision
Add-on card capacity plus deep-body airflow.
Storage Server
Up to four drives with optional hot-swap cages.
Factory Automation
Washable filter for continuous plant-floor duty.
OEM/ODM Hardware Platform
Patented bezel and mechanical customization base.
Customization Options
Adapt the D-200L to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Storage Configuration
Power Supply Options
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The D-200L is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the D-200L with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the D-200L and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
