Industrial Rackmount Chassis / D-200L-FS
2U High Performance Rackmount Chassis with Front-mounted ATX Power Supply
A deep 2U EATX platform with four 80mm fans and a front-mounted standard ATX PSU — built for sustained high-power, high-airflow workloads.
Product Overview
What the D-200L-FS is built for.
The D-200L-FS brings compact and power into balance for 2U rackmount chassis. High performance 2U rackmount chassis that is compatible with standard ATX power supply to support system with high power needs. D-200L-FS has total of three 3.5 drive storage that supports RAID configuration as well as one 5.25 drive bay space for optical or hot-swap device. Enforced power supply cooling and CoolingFan ball-bearing fans ensure system optimal performance. Optional 6 slots low-profile backplane to support additional expansion cards.
Key Features
Engineered for reliability and integration.

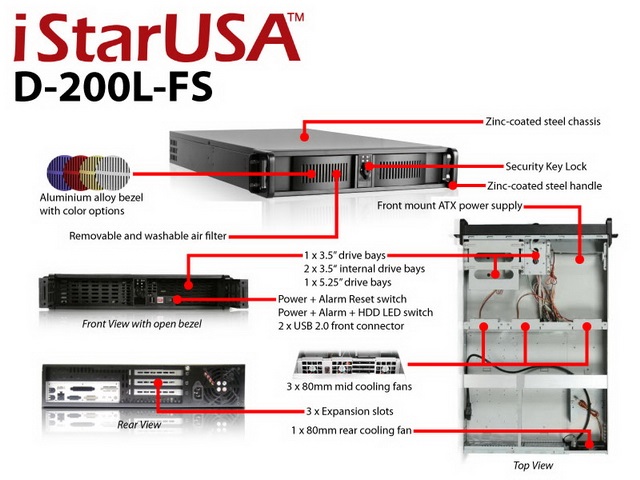

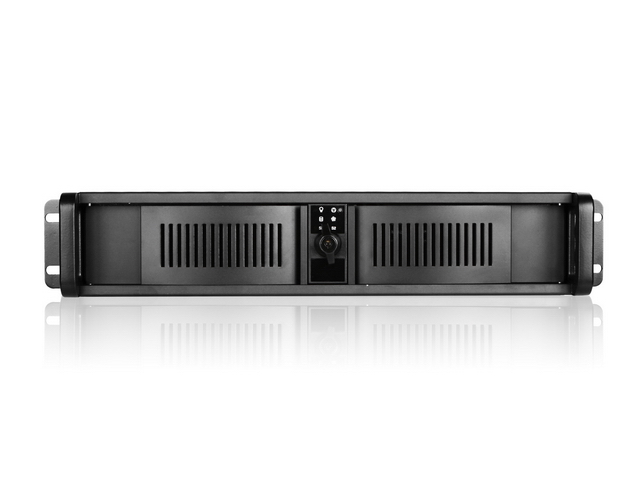

- Three-way aluminum front panel with key locks for secured, service-friendly front access

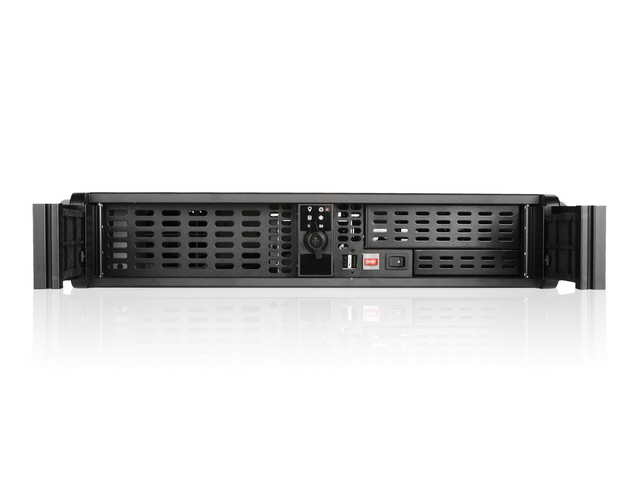

- Front-access 2 × USB 2.0 for on-site service and commissioning
- 80mm x4 ball-bearing cooling fans for sustained airflow under load
- Front-mounted standard ATX power supply — full wattage without extra rack depth, serviceable from the front
- Removable, washable air filter for dusty industrial environments
- Power / HDD LED indicators (with optional TC-ISF08 sensor board for fan and temperature status)
- Power and alarm-reset switches for field diagnostics
Specifications
Technical specifications.
| Model Number | D-200L-FS |
|---|---|
| Product Category | Industrial Rackmount Chassis |
| Form Factor | 2U |
| Motherboard Support | 12 x 13 (EATX, ATX, microATX) |
| Drive Bays | 3.5" Drives: 1 · 3.5" Drive (internal): 2 · 5.25" Drives: 1 |
| Expansion Slots | 3 |
| Cooling | 4x80mm, removable & washable air filter |
| PSU Support | PS2 |
| Front Connector | 2x USB 2.0 |
| Security | Front Bezel Key Lock |
| Material | 1.2mm SECC Zinc-Coated Steel (Japan Made), aluminum alloy front bezel |
| Dimensions | 19.00" x 3.50" x 27.90" · 482.6 mm x 88.9 mm x 708.7 mm |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Certification | RoHS compliant |
| Ordering Information | Black Bezel:D-200L-FS · Blue Bezel:D-200L-FS-BLUE · Red Bezel:D-200L-FS-RED · Silver Bezel:D-200L-FS-SILVER |
Downloads
Documentation & drawings.
Applications
Where the D-200L-FS is deployed.
Data Center
Sustained high-power 2U nodes with standard ATX PSUs.
Industrial PC
Dual-socket automation servers with heavy airflow.
Machine Vision
Three slots plus front-serviceable power.
Storage Server
Three 3.5" drives for RAID configurations.
Factory Automation
Four-fan cooling with washable filter.
OEM/ODM Hardware Platform
Front-panel and thermal customization base.
Customization Options
Adapt the D-200L-FS to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Storage Configuration
Power Supply Options
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The D-200L-FS is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the D-200L-FS with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the D-200L-FS and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
