IPC Rackmount / FS-13280
3U Rackmount Chassis for 2 × Mini-ITX Systems
3U dual Mini-ITX with a removable fan-cage door — 4×60 mm + 2×80 mm — and eight 3.5" hot-swap trays.
Product Overview
What the FS-13280 is built for.

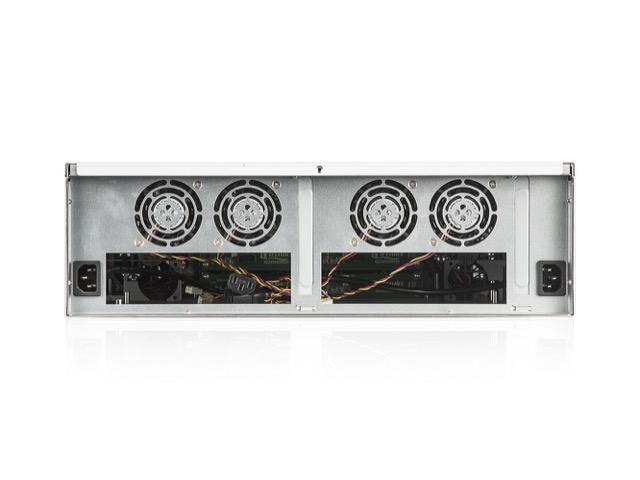

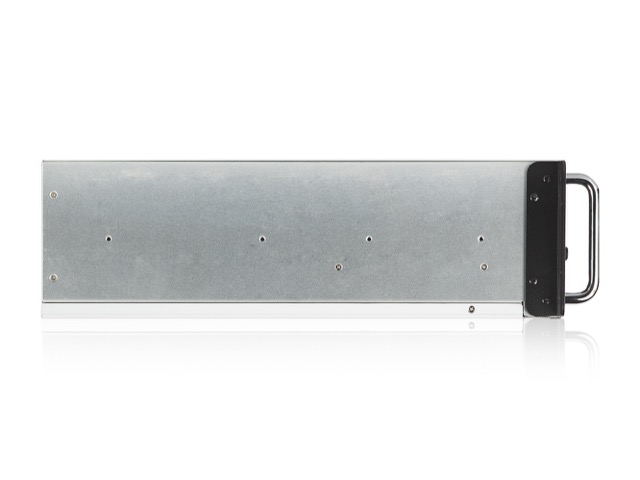

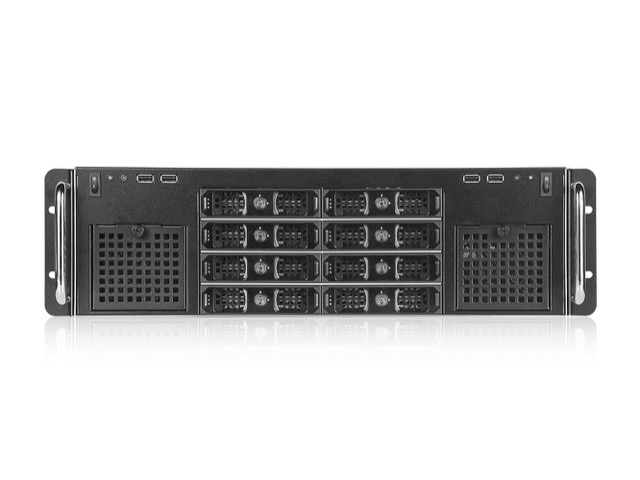

FS-13280 is the 3U twin Mini-ITX industrial chassis: 19.00 × 5.19 × 17.56 inches, two PCI slots, Flex power, four 60 mm plus two 80 mm fans behind a removable cage/filter door, four USB (2×2), two power switches, internal 2 × 2.5" + 2 × 3.5", and eight 3.5" hot-swap trays. Dual-node cooling access is the point of 3U here.
Key Features
Engineered for reliability and integration.
- 3U rackmount server chassis for 2 x Mini-ITX motherboards
- Removable fan cage door and filters; DC cooling fans
- Steel construction for industrial applications.
- Board support: Mini-ITX
- Storage: Internal Drive Bay: 2 x 2.5" and 2 x 3.5" · Hot-swap: 8 x 3.5" HDD Tray
- Expansion: 2 x PCI
- Cooling: 4 x 60mm and 2 x 80mm fan
- PSU: Flex Power Supply
Specifications
Technical specifications.
| Model Number | FS-13280 |
|---|---|
| Product Category | IPC Rackmount |
| Form Factor | 3U |
| Motherboard Support | Mini-ITX |
| Drive Bays | Internal Drive Bay: 2 x 2.5" and 2 x 3.5" · Hot-swap: 8 x 3.5" HDD Tray |
| Expansion Slots | 2 x PCI |
| Cooling | 4 x 60mm and 2 x 80mm fan |
| PSU Support | Flex Power Supply |
| Front Panel | LED: 2 x Activity; 2 x Power · USB: 4 (2 x 2) · Power SW: 2 |
| I/O Shield | Standard I/O |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 30 |
| Mounting | Optional Sliding rails |
| Memory Height | Accepts standard size |
| Dimensions | 19.00" x 5.19" x 17.56" · 482.6 mm x 131.8 mm x 446.0 mm |
| Certification | RoHS compliant |
Applications
Where the FS-13280 is deployed.
Dual-node Gateway
Two Mini-ITX systems in one rack unit for redundant or paired roles.
Split Workloads
Independent power switches and LED pairs where specified.
Industrial Storage Pair
Hot-swap trays shared or split across the two boards.
OEM Twin Cell
FactorySmith dual Mini-ITX program with Flex ATX or DC.
Customization Options
Adapt the FS-13280 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front-panel I/O and LED layout
Hot-swap bay count and backplane
PSU selection (Flex ATX / PS2 / DC)
Fan, filter, and rail kits
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-13280 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-13280 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-13280 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
