Panel PC Chassis / FS-P115
15" Panel PC Chassis for Mini-ITX with Projected Capacitive Touch
15" IP65 Mini-ITX panel PC, 35W TDP, 1024×768 at 300 cd/m², with one 2.5" drive.
Product Overview
What the FS-P115 is built for.
FS-P115 is the first Mini-ITX panel in the set: 15" IP65 PCAP, 1024×768, 300 cd/m², 800:1, 8 ms, ò7H, 35W max TDP, 2.5" HDD ×1, in a 13.09 × 2.08 × 10.64 inch SGCC / aluminum-heatsink chassis. Silent, dust-free operation is the stated cooling model.
Key Features
Engineered for reliability and integration.
- IP65 front bezel
- 15" panel with touch
- Silent, and dust-free
- LCD: Resolution: 1024xRGBx768 · Brightness: 300cd/m2 (typ.) · Color Support: 16.2M/262k · Contrast Ratio: 800:1 (typ.) · Response Time: 8ms (typ.)
- Touch: Touchscreen Type: Projected Capacitive · Surface Hardness: ≥7H · Durability: 100,000,000 times · Transparency: ≥90%
- Board TDP: Max. 35W

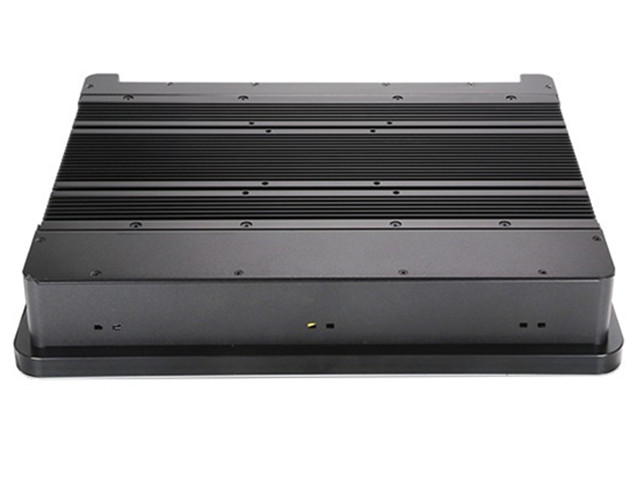

- Silent, dust-free fanless heatsink chassis
- Envelope (W×H×D): 13.09" x 2.08" x 10.64"
Specifications
Technical specifications.
| Model Number | FS-P115 |
|---|---|
| Product Category | Panel PC Chassis |
| Form Factor | Panel PC |
| Drive Bays | 2.5" HDD x 1 |
| Material | SGCC / Anodized aluminum heatsink |
| Surface | Black wet Surface paint with texture coat |
| LCD | Resolution: 1024xRGBx768 · Brightness: 300cd/m2 (typ.) · Color Support: 16.2M/262k · Contrast Ratio: 800:1 (typ.) · Response Time: 8ms (typ.) |
| Touch | Touchscreen Type: Projected Capacitive · Surface Hardness: ≥7H · Durability: 100,000,000 times · Transparency: ≥90% |
| TDP | Max. 35W |
| Dimensions | 13.09" x 2.08" x 10.64" · 332.5 mm x 52.8 mm x 270.3 mm |
| Certification | RoHS compliant |
Applications
Where the FS-P115 is deployed.
Operator HMI
15" IP65 PCAP glass for wash-down or dusty line-side stations.
Machine Vision Review
Projected-capacitive touch for recipe and inspection terminals.
Kiosk / Access Control
Fanless panel with OEM branding on the IP65 bezel.
OEM Panel PC
SBC / Mini-ITX board drop-in under a FactorySmith glass stack.
Customization Options
Adapt the FS-P115 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
LCD / PCAP bonding and bezel finish
Heatsink matching to board TDP

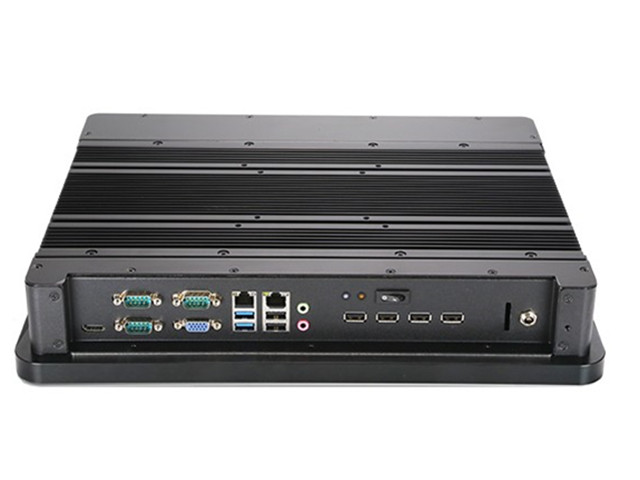

I/O and mounting cutouts
Storage and DC input options
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-P115 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-P115 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-P115 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
