Panel PC Chassis / FS-P117
17" Panel PC Chassis for Mini-ITX with Projected Capacitive Touch
17" IP65 Mini-ITX panel at 37W TDP — 1280×1024, 1000:1, 5 ms, one 2.5" drive.
Product Overview
What the FS-P117 is built for.
FS-P117 is the 17" Mini-ITX panel: IP65 PCAP ò7H, 1280×1024, 250 cd/m², 16.7M/262k, 1000:1, 5 ms, 37W max TDP, 2.5" HDD ×1, 16.80 × 2.15 × 14.10 inches. It shares the P119 pixel format but not the 45W TDP or dual-drive bay of the 19" SKU.
Key Features
Engineered for reliability and integration.
- For MINI-ITX with CPU TDP 37W max.
- IP65 front bezel
- 17" panel with touch
- Silent, and dust-free
- LCD: Resolution: 1280xRGBx1024 · Brightness: 250cd/m2 (typ.) · Color Support: 16.7M/262k · Contrast Ratio: 1000:1 (typ.) · Response Time: 5ms (typ.)
- Touch: Touchscreen Type: Projected Capacitive · Surface Hardness: ≥7H · Durability: 100,000,000 times · Transparency: ≥90%
- Board TDP: Max. 37W

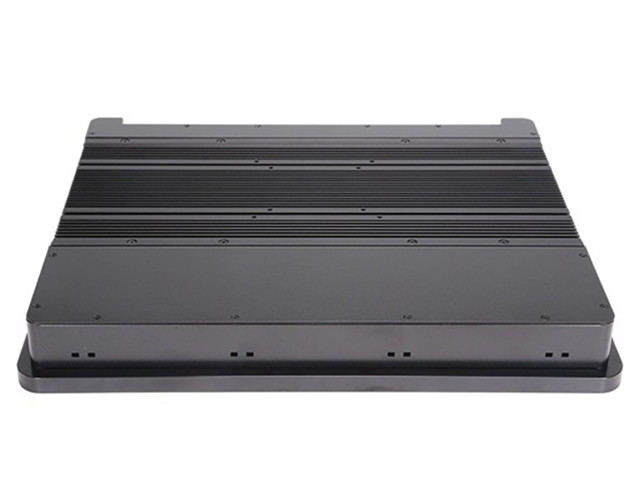

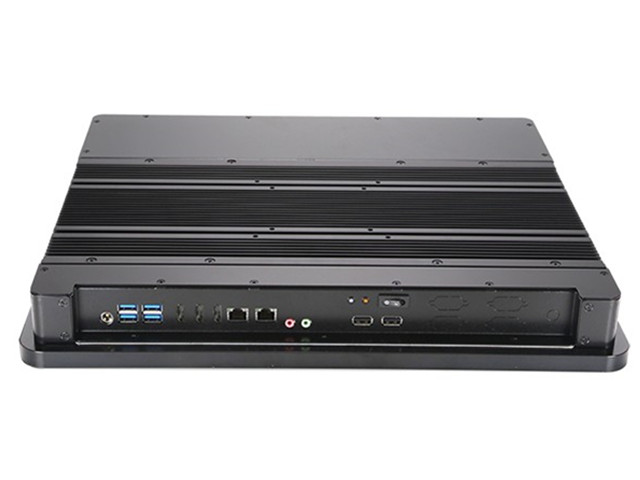

- Silent, dust-free fanless heatsink chassis
Specifications
Technical specifications.
| Model Number | FS-P117 |
|---|---|
| Product Category | Panel PC Chassis |
| Form Factor | Panel PC |
| Drive Bays | 2.5" HDD x 1 |
| Material | SGCC / Anodized aluminum heatsink |
| Surface | Black wet Surface paint with texture coat |
| LCD | Resolution: 1280xRGBx1024 · Brightness: 250cd/m2 (typ.) · Color Support: 16.7M/262k · Contrast Ratio: 1000:1 (typ.) · Response Time: 5ms (typ.) |
| Touch | Touchscreen Type: Projected Capacitive · Surface Hardness: ≥7H · Durability: 100,000,000 times · Transparency: ≥90% |
| TDP | Max. 37W |
| Dimensions | 16.80" x 2.15" x 14.10" · 426.7 mm x 54.6 mm x 358.1 mm |
| Certification | RoHS compliant |
Applications
Where the FS-P117 is deployed.
Operator HMI
17" IP65 PCAP glass for wash-down or dusty line-side stations.
Machine Vision Review
Projected-capacitive touch for recipe and inspection terminals.
Kiosk / Access Control
Fanless panel with OEM branding on the IP65 bezel.
OEM Panel PC
SBC / Mini-ITX board drop-in under a FactorySmith glass stack.
Customization Options
Adapt the FS-P117 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
LCD / PCAP bonding and bezel finish
Heatsink matching to board TDP
I/O and mounting cutouts
Storage and DC input options
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-P117 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-P117 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-P117 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
