2U Redundant / IS-550R2UPD8UC
550W 2U CRPS High Efficiency Redundant Power Supply
A 550W 2U CRPS 1+1 redundant PSU with dual AC, PMBus, and hot-swap modules — the lower-wattage CRPS option when the chassis is 2U, not PS2 Mini or 1U side-by-side.
Product Overview
What the IS-550R2UPD8UC is built for.

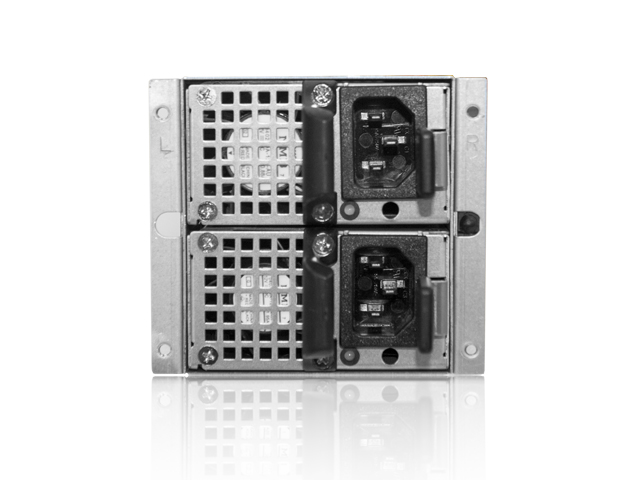

The Xeal IS-550R2UPD8UC is a 2U CRPS redundant supply: 550W 1+1, dual AC, hot-swap modules, load sharing, automatic fan thermal control, and PMBus. +12V is 46A (550W total; +3.3V/+5V combined ≤ 150W). The 75.9 × 83.8 × 229.9 mm CRPS body (specsheet 230 × 76 × 84 mm, 1800 g) is the form-factor split from IX-700 (1U 106 mm) and from IS-600/800 (PS2 Mini). Efficiency 85% typical at 100% load; hold-up ≥12ms at 115Vac / 70% load; peak 660W ≤12ms. DC output connector is specified as ATX.
Specifications
Technical specifications.
| Model Number | IS-550R2UPD8UC |
|---|---|
| Product Category | Redundant Power Supply |
| Brand | Xeal |
| Form Factor | 2U |
| Redundancy | 1+1 hot-swap CRPS |
| Output Wattage | 550W (peak 660W ≤ 12ms; +3.3V/+5V ≤ 150W) |
| Efficiency | 85% typical at 100% load |
| Airflow | Back to front |
| AC Input | 90–264Vac (operation 100–240Vac) · 47–63Hz · dual AC |
| Input Current | 6A @ 115Vac · 3A @ 230Vac (full load) |
| Inrush Current | 30A peak @ 115Vac · 50A peak @ 230Vac |
| Power Factor | ≥ 0.95 at full load |
| AC Inlet | IEC320 C14, 10A/250Vac |

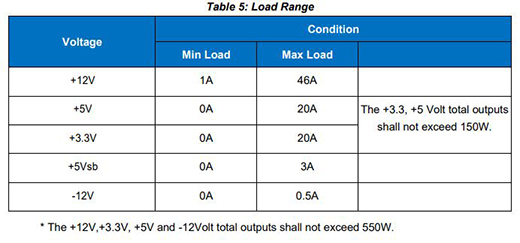

| DC Output | +12V 46A · +5V 20A · +3.3V 20A · +5VSB 3A · −12V 0.5A |
| Hold-up Time | ≥ 12ms @ 115Vac, 70% load |

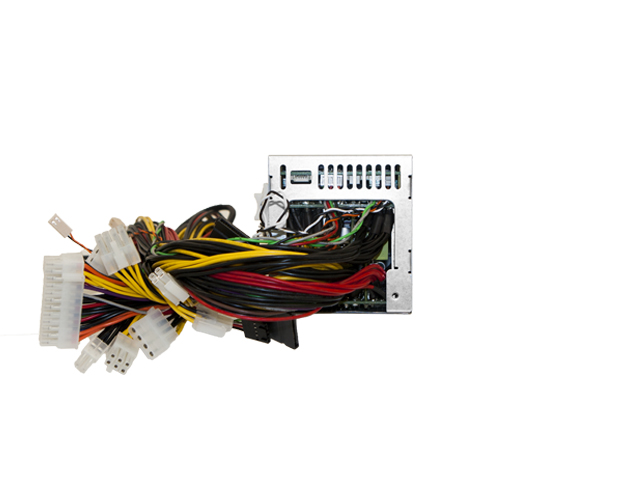

| Connector Type | Main 24 pin · 4+4-pin 12V ×1 · 8-pin EPS 12V ×1 · 6+2-pin PCIe ×2 · Molex ×4 · SATA ×3 · Floppy ×1 |
| DC Output Connector | ATX |
| PMBus | Yes |
| MTBF | > 250,000 hours at 25°C typical load |
| Weight | 1800 g |
| Certification | RoHS · IEC62368-1 |
| Operating Temperature | 0–50°C |

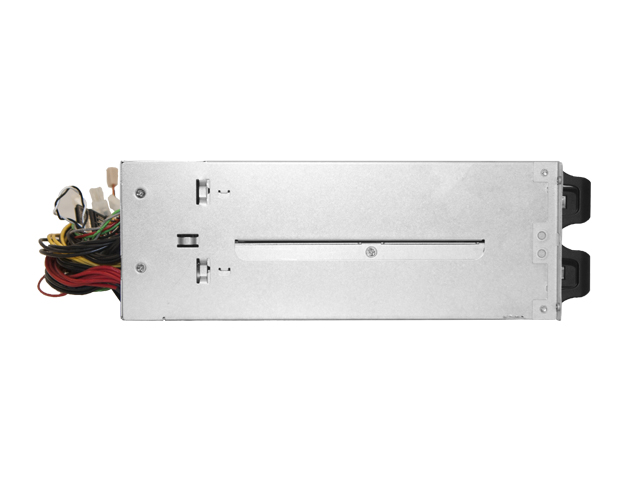

| Dimensions | 2.99" × 3.30" × 9.05" · 75.9 × 83.8 × 229.9 mm |
Key Features
Engineered for reliability and integration.
- 2U CRPS 1+1 redundant, 550W (peak 660W ≤ 12ms)
- Dual AC input, hot-swappable modules, load sharing
- PMBus support
- Active PFC and automatic fan thermal control
- High efficiency 85% typical at 100% load (80 PLUS Platinum on specsheet)
- +12V 46A · +3.3V/+5V combined ≤ 150W
- OPP, OVP, OCP, SCP, UVP, OTP
- Power-failure alarm and signals
- MTBF > 250,000 hours at 25°C typical load
- IEC62368-1 · 0–50°C · altitude 5000 m
Downloads
Documentation & drawings.
Applications
Where the IS-550R2UPD8UC is deployed.
2U CRPS Servers
Standard 76 × 84 × 230 mm CRPS cage — not a PS2 Mini or 1U 106 mm pair.
Storage / Networking 2U
550W with PMBus when 850W headroom is not required.
Dual-feed Racks
Independent AC on each hot-swap CRPS module.
OEM 2U Platforms
Wattage pair with IS-850R2UPD8UC in the same CRPS outline.
Customization Options
Adapt the IS-550R2UPD8UC to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Power Supply Options
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The IS-550R2UPD8UC is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the IS-550R2UPD8UC with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the IS-550R2UPD8UC and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
