1U Redundant / IX-700RSH1UP8UC
700W 1U High Efficiency Redundant Power Supply
A 1U-high 1+1 redundant PSU (106 mm wide modules, side-by-side) delivering 700W with PMBus and 80 PLUS Platinum-class 85% efficiency — for compact 1U servers that still need hot-swap redundancy.
Product Overview
What the IX-700RSH1UP8UC is built for.

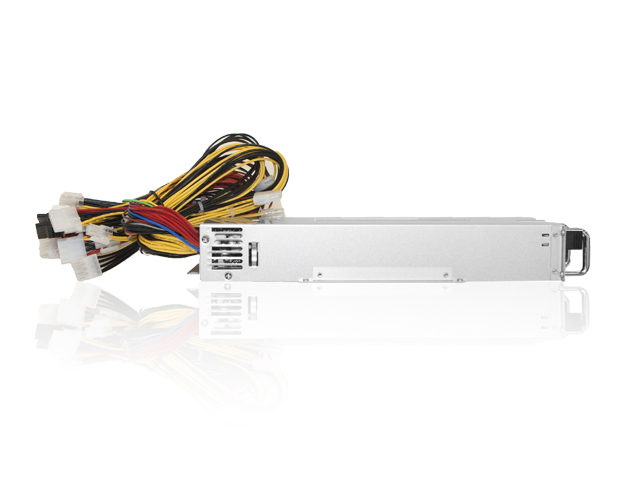

The Xeal IX-700RSH1UP8UC is a 700W 1U 1+1 redundant supply: two modules sit side-by-side in a 105.9 × 41.4 × 260.1 mm (specsheet 260 × 106 × 41.5 mm) 1U envelope, so a 1U chassis can keep redundancy without stepping to a 2U CRPS cage. PMBus, active PFC, back-to-front airflow, and 85% typical efficiency at 100% load (80 PLUS Platinum on the specsheet) distinguish it from the PS2 Mini IS-600/800 pair, which are 4U/ATX form factor and 80% efficient. Output is 700W with +12V to 58.3A; +3.3V and +5V each 20A. Hold-up is ≥12ms at 115Vac / 70% load. Weight 2350g; AC inlet IEC320 C14.
Specifications
Technical specifications.

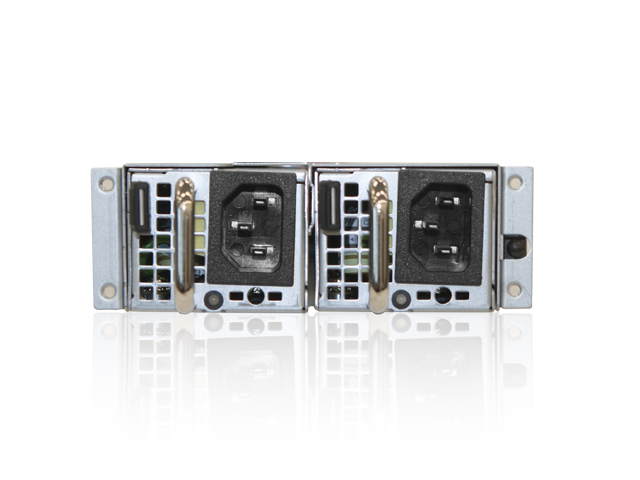

| Model Number | IX-700RSH1UP8UC |
|---|---|
| Product Category | Redundant Power Supply |
| Brand | Xeal |
| Form Factor | 1U |
| Redundancy | 1+1 hot-swap, side-by-side 106 mm modules |
| Output Wattage | 700W |
| Efficiency | 85% typical at 100% load |
| Airflow | Back to front |
| AC Input | 90–264Vac (operation 100–240Vac) · 47–63Hz |
| Input Current | 8.0A @ 115Vac · 4A @ 230Vac (full load) |
| Inrush Current | 30A peak @ 115Vac · 50A peak @ 230Vac |
| Power Factor | ≥ 0.95 at full load |
| AC Inlet | IEC320 C14 |

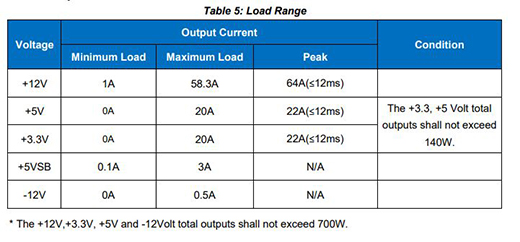

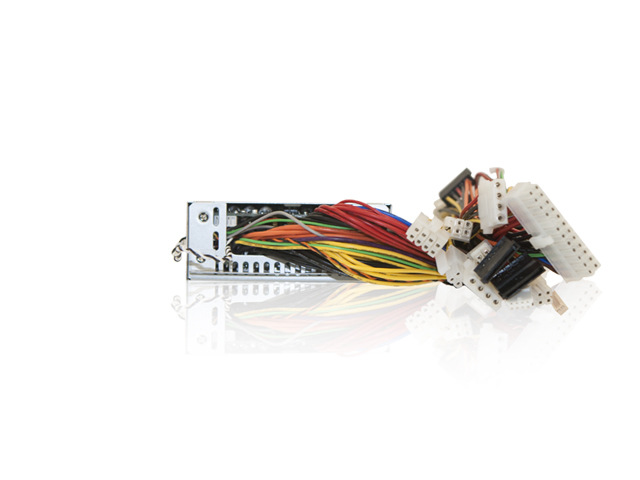

| DC Output | +12V 58.3A · +5V 20A · +3.3V 20A · +5VSB 3A · −12V 0.5A |
| Hold-up Time | ≥ 12ms @ 115Vac, 70% load |
| Connector Type | Main 24 pin · 8-pin EPS 12V ×2 · Molex ×4 · SATA ×3 · Floppy ×1 · 8-pin PCIe ×2 |
| PMBus | Yes |
| MTBF | > 250,000 hours at 25°C typical load |
| Weight | 2350 g |
| Certification | RoHS · IEC62368-1 |
| Operating Temperature | 0–50°C |
| Dimensions | 4.17" × 1.63" × 10.24" · 105.9 × 41.4 × 260.1 mm |
Key Features
Engineered for reliability and integration.
- 1U height, side-by-side 1+1 modules (106 mm class)
- 700W output · +12V 58.3A
- Hot-swap modules with power sharing
- PMBus support
- High efficiency 85% typical at 100% load (80 PLUS Platinum on specsheet)
- Active PFC, PF ≥ 0.95
- Back-to-front airflow
- OTP, OCP, OVP, SCP; power-failure alarm and signals
- MTBF > 250,000 hours at 25°C typical load
- IEC62368-1 · working temperature 0–50°C · altitude 5000 m
Downloads
Documentation & drawings.
Applications
Where the IX-700RSH1UP8UC is deployed.
1U Servers
Redundancy inside a 41.5 mm-high envelope — not a 2U CRPS or PS2 Mini cage.
Compact HPC / IPC
700W and two 8-pin PCIe plus two EPS 12V connectors for dense 1U boards.
Storage / Networking Appliances
PMBus telemetry for remote power management.
OEM 1U Platforms
Hot-swap 1+1 in the most compact Xeal redundant format in this import.
