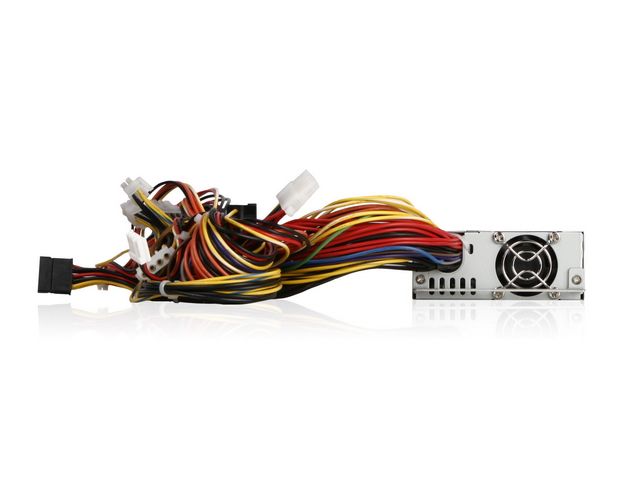

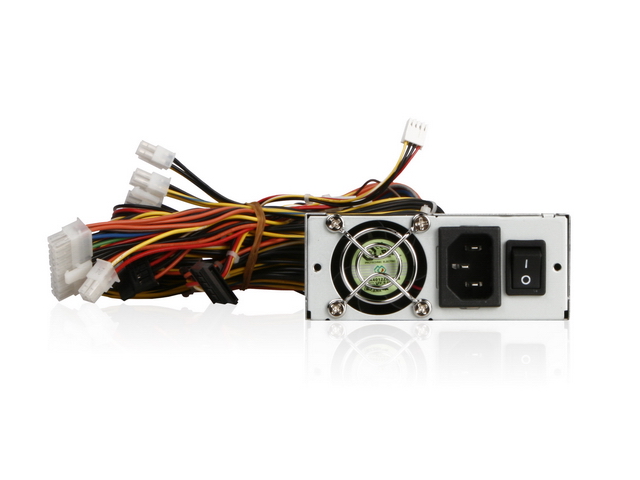

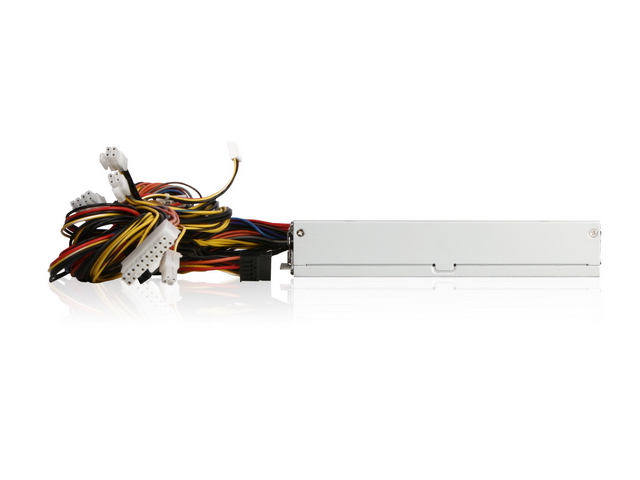

1U Single / TC-1U40PD8UC
1U 400W High Efficiency Switching Power Supply
A single-module 1U 400W 80 PLUS Bronze PSU (100.1 × 40.6 × 190.2 mm) with active PFC and thermal fan control — the compact non-redundant option for 1U rackmount chassis.
Product Overview
What the TC-1U40PD8UC is built for.
The Xeal TC-1U40PD8UC is a 1U 400W single switching PSU (specsheet: 1U 80 PLUS Bronze, IEC62368). It is not redundant: one module, 100.1 × 40.6 × 190.2 mm, designed to sit in a 1U rackmount chassis. Active PFC, thermal fan-speed control, and triple-circuit protections are the published feature set. Rails: +12V 33A, +5V 16A, +3.3V 14A, combined +3.3V/+5V ≤ 90W, total 400W. Hold-up >10ms at 115V/60Hz and >12ms at 230V/50Hz (100% load). Product photography on the official UC detail page is missing; gallery files are the CDN stills published as TC-1U40PD8_*.jpg for this 1U 400W body.
Specifications
Technical specifications.

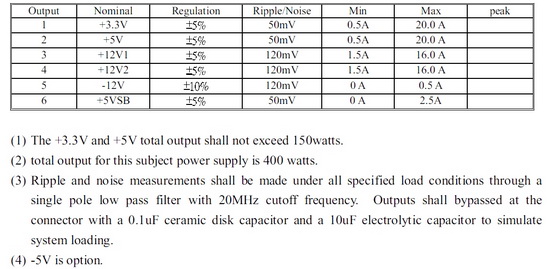

| Model Number | TC-1U40PD8UC |
|---|---|
| Product Category | Switching Power Supply |
| Brand | Xeal |
| Form Factor | 1U |
| Redundancy | Single module |
| Output Wattage | 400W (combined +3.3V/+5V ≤ 90W) |
| Efficiency | 80% |
| AC Input | 90–264Vac · 47–63Hz |
| DC Output | +3.3V 14A · +5V 16A · +12V 33A · −12V 0.3A · +5VSB 3A · −5V 0.1A (optional) |
| Hold-up Time | >10ms @ 115V/60Hz 100% load · >12ms @ 230V/50Hz |
| Connector Type | Main 20+4 pin · 4-pin 12V ×1 · 8-pin EPS 12V ×1 · Molex ×3 · SATA ×5 · Floppy ×1 |
| Protections | OVP · SCP · OPP |
| Certification | RoHS · IEC62368 · 80 PLUS Bronze (specsheet) |
| Dimensions | 3.94" × 1.60" × 7.49" · 100.1 × 40.6 × 190.2 mm |
Key Features
Engineered for reliability and integration.
- Single-module 1U 400W (not redundant)
- 80 PLUS Bronze (specsheet)
- Active PFC, universal 90–264Vac input
- Thermal fan speed control
- +12V 33A · +3.3V/+5V combined ≤ 90W
- Hold-up >10ms @ 115V 100% load · >12ms @ 230V
- OVP, SCP, OPP; IEC62368
- Fits 1U rackmount chassis (40.6 mm height, 190.2 mm depth)
