Drive Cages & Hot-swap Modules / T-C25S

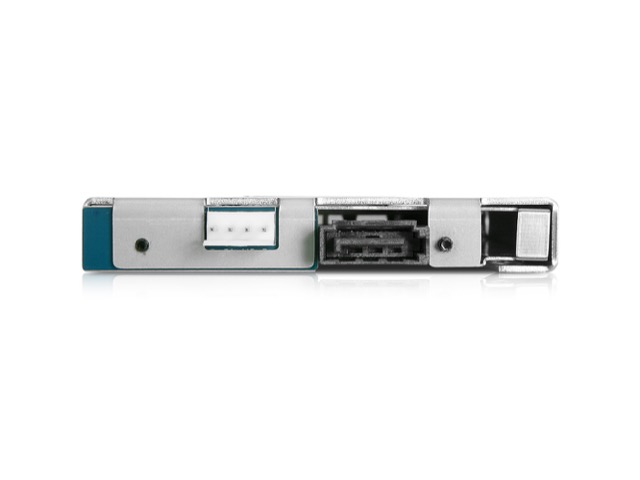

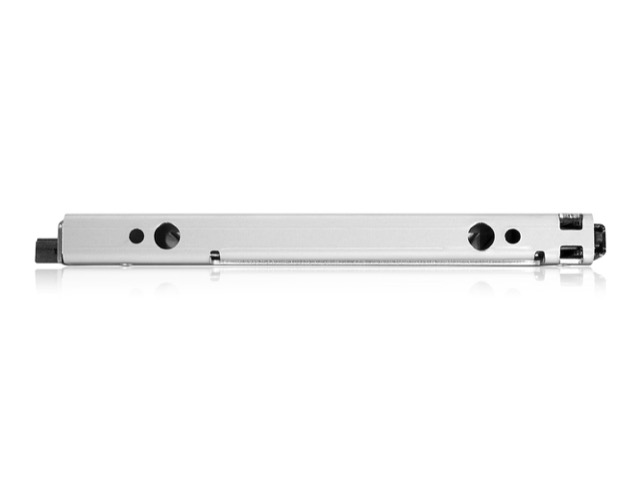

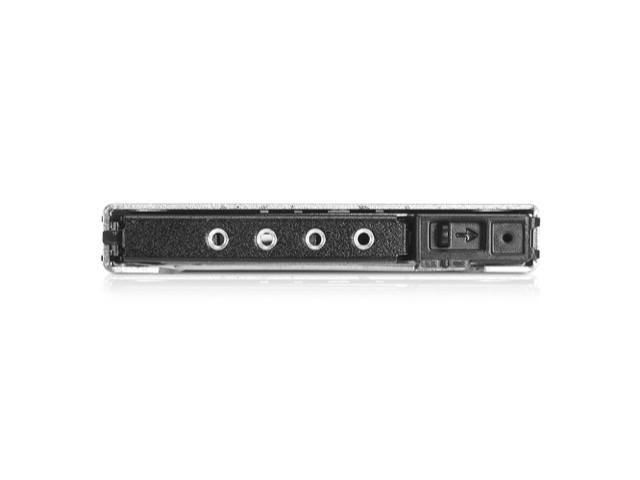

Custom Size Slim 2.5" HDD SSD Hot-swap Rack
T-C25S — Custom Size Slim 2.5" HDD SSD Hot-swap Rack. Custom Size; Hotswap 2.5": 1; 2.5" Slim SATA/ SAS; SAS; 2.90" x 0.50" x 5.50". Special order on the original listing.
Product Overview
What the T-C25S is built for.
T-C25S is a steel drive cage that takes custom size of space to give one slim 2.5" hotswappable SATA/ SAS drive bay. The compact structure is perfect for OEM/ODM projects. T-C25S is filed as an Anhsin Internal HDD Cage under Custom Size. Host opening: Hotswap 2.5": 1. Hot-swap map: 2.5" Slim SATA/ SAS. Interface language on the original spec/feature list: SAS. Envelope (W×H×D): 2.90" x 0.50" x 5.50" · 73.7 mm x 12.7 mm x 139.7 mm. Availability on iStarUSA: Special Order.
Key Features
Engineered for reliability and integration.
- Supports HDD thickness 7mm or Less
- Energy saving on using 2.5" HDDs or SSD
- LED indicators for power and HDD access
- Custom size
- Hot-swappable ability
- Supports slim 2.5" SATA SAS drives
Specifications
Technical specifications.
| Model Number | T-C25S |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Custom Size |
| Host Bay | Hotswap 2.5": 1 |
| Drive Bays | 2.5" Slim SATA/ SAS |
| Interface | SAS |
| Indicators | Power, HDD |
| Material of Handle | Steel |
| Material of Main Chassis | Steel |
| Dimensions | 2.90" x 0.50" x 5.50" · 73.7 mm x 12.7 mm x 139.7 mm |
| Notes | custom size; will not fit in a standard 3.5" bay |
| Certification | RoHS compliant |
| Drive Size Class | 2.5" |
Applications
Where the T-C25S is deployed.
T-C25S SATA/SAS bay conversion
Convert Hotswap 2.5": 1 into 2.5" Slim SATA/ SAS hot-swap capacity for workstation and industrial storage.
T-C25S OEM custom envelope
Custom-size module for chassis that do not use a standard 5.25" or 3.5" optical bay — match the host opening on the drawing.
T-C25S industrial storage cell
Metal chassis (Steel) for 24×7 hot-swap in industrial PCs and storage servers.
T-C25S OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the T-C25S to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
T-C25S: custom envelope and mounting to the host opening (not a standard 5.25"/3.5" drop-in unless the drawing says so)
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The T-C25S is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the T-C25S with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the T-C25S and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
