2U Single / TC-2U70PD8UC
700W 2U High Efficiency Switching Power Supply
A current 2U 700W single (non-redundant) 80 PLUS Bronze PSU, 100.1 × 70.1 × 240.3 mm, with +12V 58A, two 6+2 PCIe connectors, and EuP Lot 6 5Vsb — the wattage step above the EOL TC-2U50PD8 in the same EPS 2U envelope.
Product Overview
What the TC-2U70PD8UC is built for.

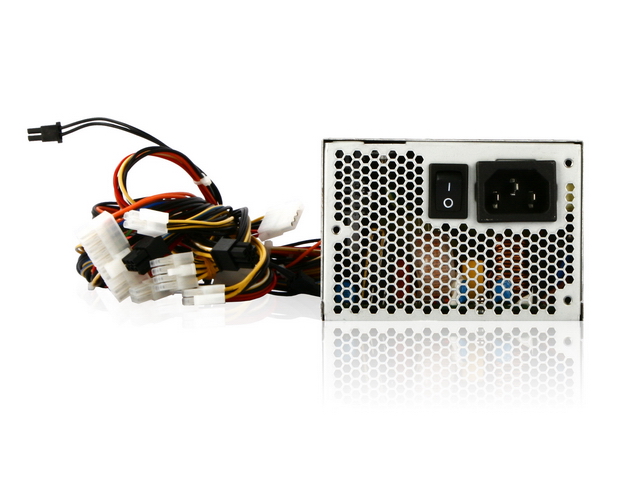

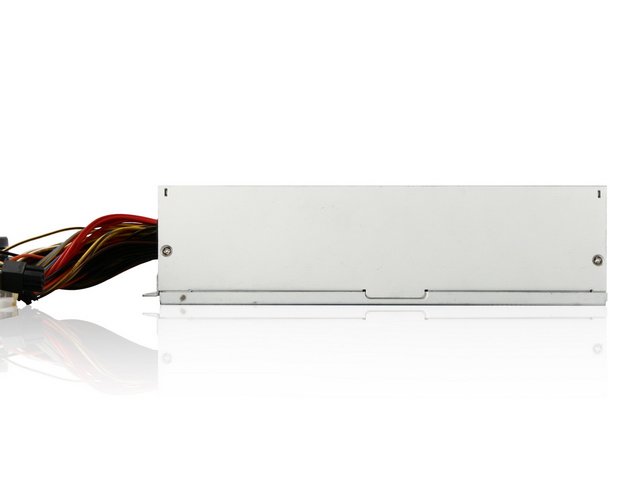

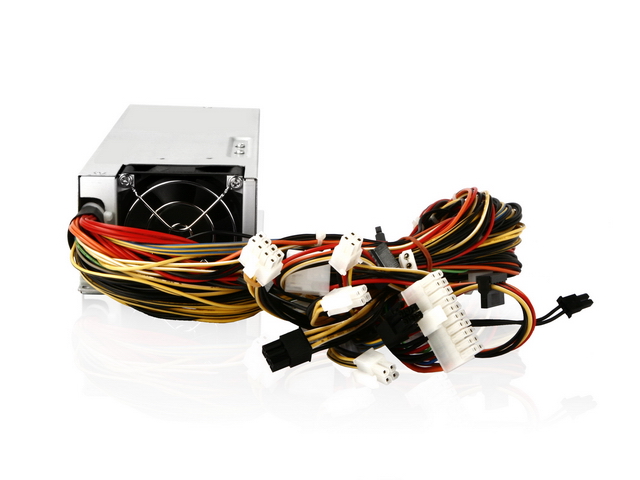

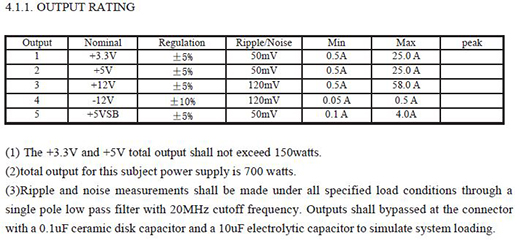

The Xeal TC-2U70PD8UC is a 2U 700W single switching PSU (specsheet: 2U 80 PLUS Bronze, IEC62368). Compared with TC-2U50PD8 it keeps the ~100 × 70 × 240 mm EPS 2U body but raises total output to 700W, uses a single +12V rail to 58A (not triple 15A rails), adds two 6+2 PCIe connectors and seven SATA, and states 5Vsb <1W in power-off (EuP Lot 6). Efficiency 82% minimum; hold-up 16ms at 80% load; +3.3V/+5V combined ≤ 150W. Official UC product page has no photography; gallery stills are the CDN files published as TC-2U70PD8_*.jpg plus this SKU’s unique output diagram.
Specifications
Technical specifications.
| Model Number | TC-2U70PD8UC |
|---|---|
| Product Category | Switching Power Supply |
| Brand | Xeal |
| Form Factor | 2U |
| Redundancy | Single module |
| Output Wattage | 700W (combined +3.3V/+5V ≤ 150W) |
| Efficiency | 82% minimum |
| AC Input | 90–264Vac |
| DC Output | +3.3V 25A · +5V 25A · +12V 58A · −12V 0.5A · +5VSB 4.0A |
| Hold-up Time | 16ms minimum @ 80% load (115V/60Hz and 230V/50Hz) |
| Connector Type | Main 20+4 pin · 4+4-pin 12V ×1 · 8-pin EPS 12V ×1 · 6+2-pin PCIe ×2 · Molex ×4 · SATA ×7 · Floppy ×1 |
| Protections | OCP · OVP · OPP · SCP |
| Standby | 5Vsb <1W at power-off (EuP Lot 6) |
| Certification | RoHS · IEC62368 · 80 PLUS Bronze (specsheet) |
| Altitude | 5000 m |
| Dimensions | 3.94" × 2.76" × 9.46" · 100.1 × 70.1 × 240.3 mm |
Key Features
Engineered for reliability and integration.
- Single-module 2U 700W EPS (not redundant)
- 80 PLUS Bronze (specsheet) · 82% minimum efficiency
- Universal AC input, active PFC
- +12V 58A · +3.3V/+5V combined ≤ 150W
- Hold-up 16ms at 80% load (115V and 230V)
- Two 6+2-pin PCIe connectors · 7× SATA
- 5Vsb <1W at power-off (EuP Lot 6 year 2010)
- OCP, OVP, OPP, SCP; IEC62368; altitude 5000 m
