Simple Portable Racks / WD-460
4U 600mm Depth Simple Server Rack
The smallest Claytek WD portable rack: 4U high and 600 mm deep, for countertop or under-desk 19" gear that still needs casters.
Product Overview
What the WD-460 is built for.
WD-460 is the compact Claytek WD simple portable rack — 4U high and 600 mm deep, 20.28" × 13.50" × 23.60" (515.1 × 342.9 × 599.4 mm). Supported chassis depth is 23" and under. Loading is 220 lbs (not the 2200 lb WN enclosed cabinets). It is an open, flat-pack SPCC 2.0mm steel rack with casters for small offices, labs, and studios. Optional wood top is WA-WJW600. Compatible with HP/Dell/IBM sliding-rail servers.
Key Features
Engineered for reliability and integration.

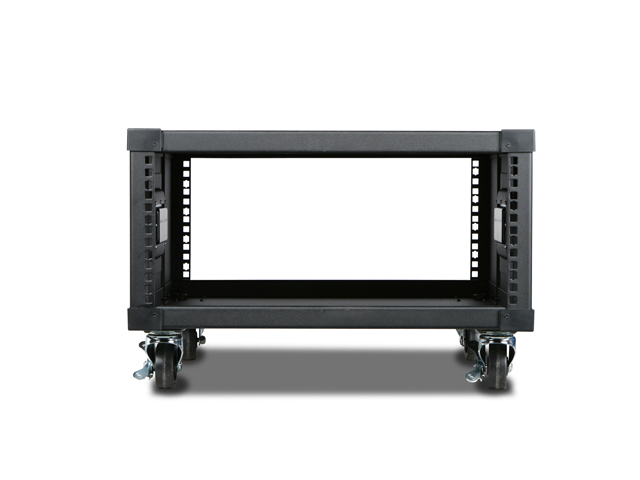

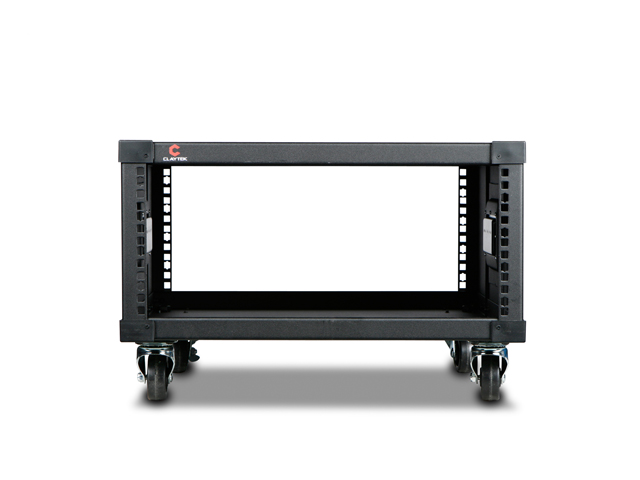

- 4U open portable rack — 600 mm (23.60") deep
- Fits chassis 23" and under
- Overall size 20.28" W × 13.50" H × 23.60" D (515.1 × 342.9 × 599.4 mm)
- Lowest WD height in this import — countertop / under-desk 4U
- 220 lbs loading · SPCC 2.0mm steel · black (special color on request)
- Optional wood top p/n WA-WJW600

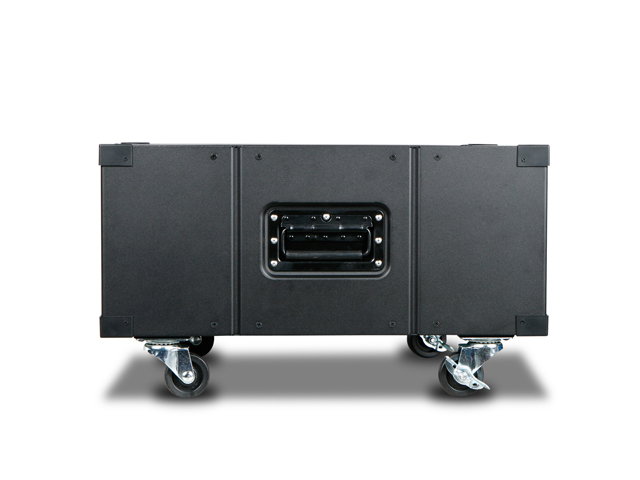

- Lightweight open rack with casters for moving equipment
- Open structure for room / HVAC airflow and quick access
- Compatible with HP/Dell/IBM sliding-rail servers

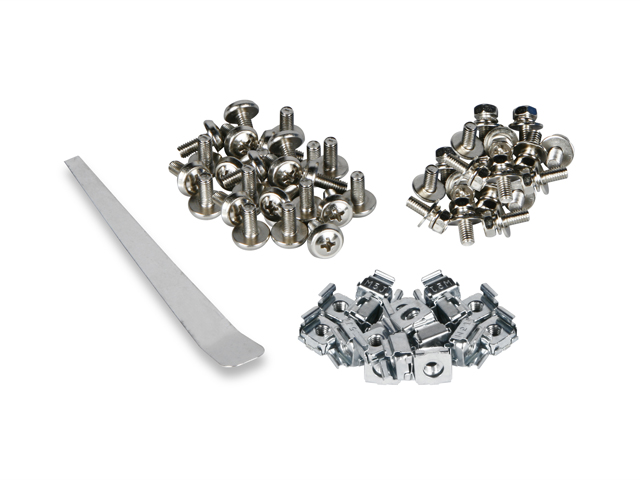

- M5 mounting screws and cage nuts included
- Ships flat-pack (unassembled) for faster install
- Optional LCD monitor arm (p/n WA-LCDARM) and feet (p/n WA-FEET)
Specifications
Technical specifications.
| Model Number | WD-460 |
|---|---|
| Product Category | Simple Portable Rack |
| Brand | Claytek |
| Series | WD — Simple Portable Rack |
| Form Factor | 4U |
| Cabinet Depth | 600 mm (23.60") |
| Supported Chassis Depth | 23" and under |
| Loading Capacity | 220 lbs |
| Material | Steel SPCC 2.0mm |
| Color | Black (special color on request) |
| Packaging | Flat pack — unassembled |
| Certification | RoHS compliant |
| Dimensions | 20.28" × 13.50" × 23.60" · 515.1 mm × 342.9 mm × 599.4 mm |
| Notes | Optional wood top WA-WJW600, LCD arm WA-LCDARM, feet WA-FEET. HTS 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WD-460 is deployed.
Countertop / Under Desk
4U × 600 mm open rack for a short stack of 19" gear beside a desk.
Small Office / Lab
Caster-ready portable rack; 220 lbs loading.
Studio Utility
Open airflow via room HVAC; optional LCD arm and wood top.
OEM/ODM
Special color on request; ships flat-pack.
Customization Options
Adapt the WD-460 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WD-460 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WD-460 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WD-460 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
Related Products
Explore adjacent options.
Design-In Center
Take WD-460 into your next project.
Request a quotation on the standard SKU, or start a Design-In conversation around customization, lifecycle, and integration.
