Simple Portable Racks / WD-1560

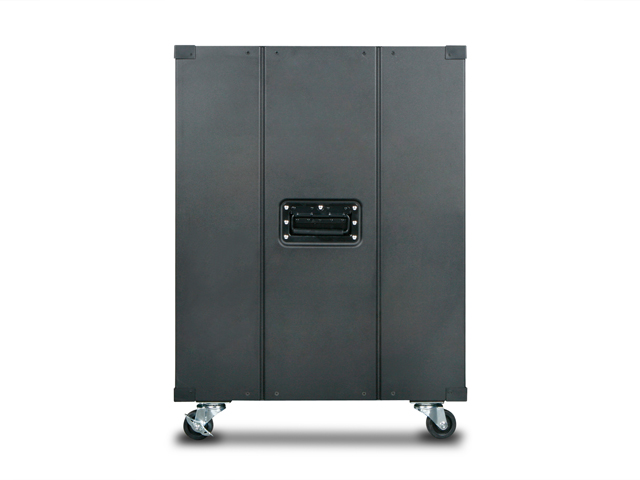

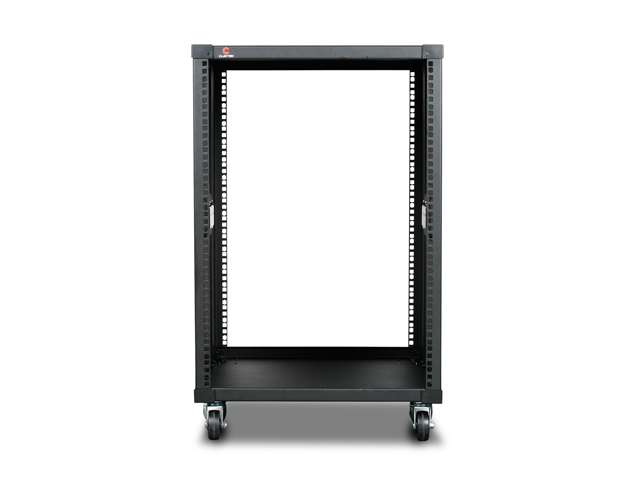

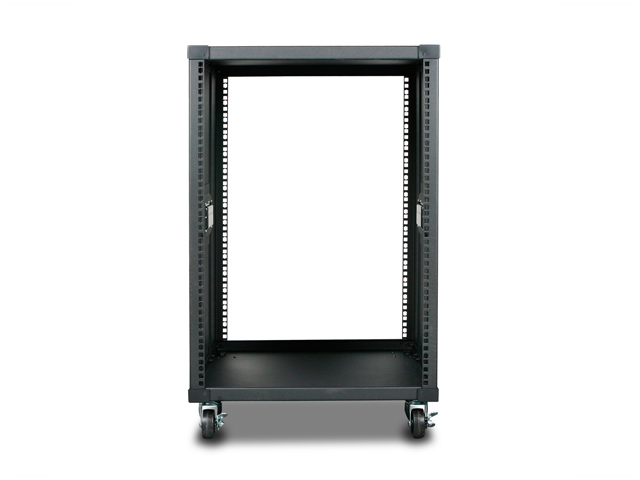

15U 600mm Depth Simple Server Rack
A 15U × 600 mm Claytek WD portable rack — the tallest 600 mm WD in this import, still open and rated 220 lbs.
Product Overview
What the WD-1560 is built for.
WD-1560 is the 15U Claytek WD simple portable rack at 600 mm depth — 20.28" × 32.70" × 23.60" (515.1 × 830.6 × 599.4 mm). Supported chassis depth is 23" and under (same as WD-460/WD-960). Loading 220 lbs. Optional wood top WA-WJW600. Open SPCC 2.0mm steel, flat-pack, casters. Use it when you need 15U in a portable 600 mm frame rather than stepping up to the 800 mm WD-1880.
Key Features
Engineered for reliability and integration.
- 15U open portable rack — 600 mm (23.60") deep
- Fits chassis 23" and under
- Overall size 20.28" W × 32.70" H × 23.60" D (515.1 × 830.6 × 599.4 mm)
- Tallest 600 mm WD here — 6 more RU than WD-960
- 220 lbs loading · SPCC 2.0mm steel
- Optional wood top p/n WA-WJW600
- Lightweight open rack with casters for moving equipment
- Open structure for room / HVAC airflow and quick access
- Compatible with HP/Dell/IBM sliding-rail servers

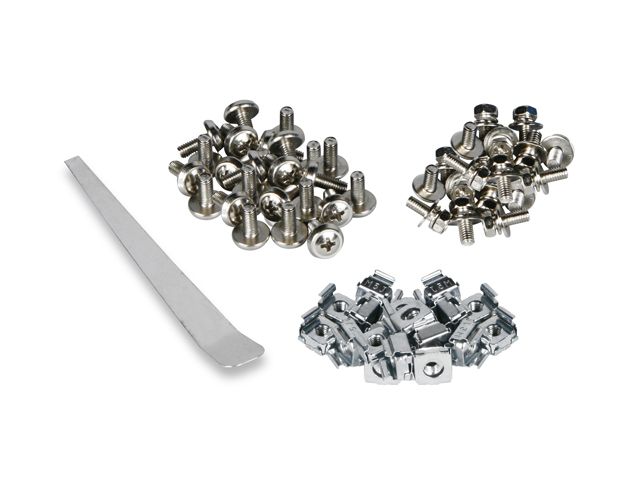

- M5 mounting screws and cage nuts included
- Ships flat-pack (unassembled) for faster install
- Optional LCD monitor arm (p/n WA-LCDARM) and feet (p/n WA-FEET)
Specifications
Technical specifications.
| Model Number | WD-1560 |
|---|---|
| Product Category | Simple Portable Rack |
| Brand | Claytek |
| Series | WD — Simple Portable Rack |
| Form Factor | 15U |
| Cabinet Depth | 600 mm (23.60") |
| Supported Chassis Depth | 23" and under |
| Loading Capacity | 220 lbs |
| Material | Steel SPCC 2.0mm |
| Color | Black (special color on request) |
| Packaging | Flat pack — unassembled |
| Certification | RoHS compliant |
| Dimensions | 20.28" × 32.70" × 23.60" · 515.1 mm × 830.6 mm × 599.4 mm |
| Notes | Optional wood top WA-WJW600, LCD arm WA-LCDARM, feet WA-FEET. HTS 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WD-1560 is deployed.
Taller Portable Stacks
15U at 600 mm / 23" chassis without going to 800 mm depth.
Studio / Lab
Open rack, casters, optional LCD arm and wood top.
Small Office
220 lbs loading — not a 2200 lb enclosed WN cabinet.
OEM/ODM
Special color on request; ships flat-pack.
Customization Options
Adapt the WD-1560 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WD-1560 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WD-1560 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WD-1560 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
