18U 800mm Depth Simple Server Rack
The deepest Claytek WD portable rack in this import: 18U high and 800 mm deep, for chassis 31" and under.
Product Overview
What the WD-1880 is built for.

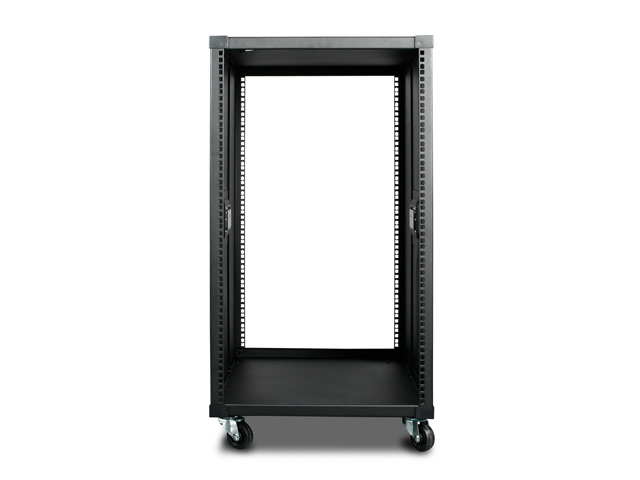

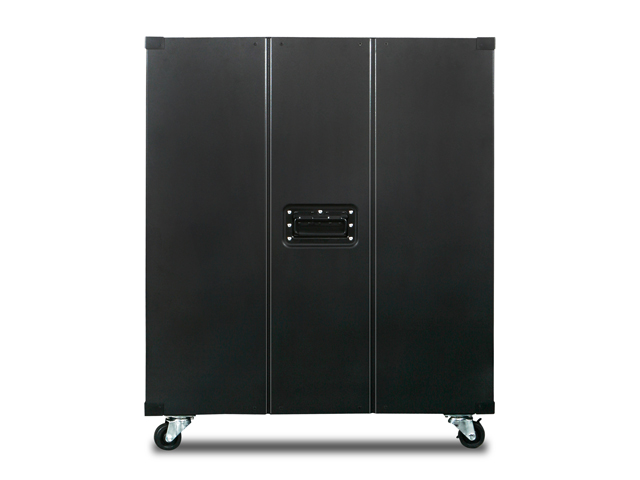

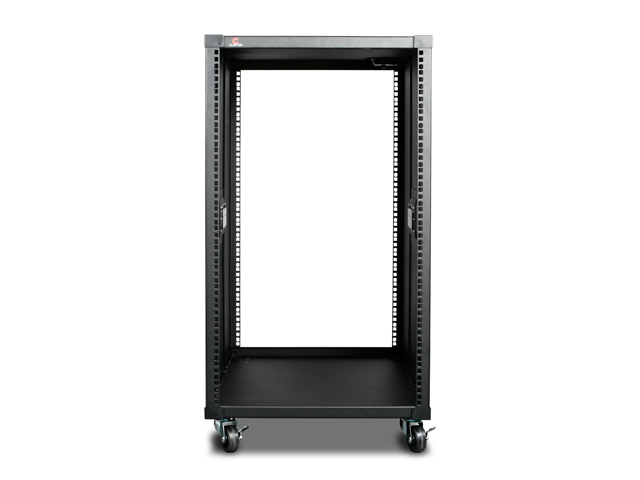

WD-1880 is the 18U × 800 mm Claytek WD simple portable rack — 20.28" × 38.00" × 31.50" (515.1 × 965.2 × 800.1 mm). Supported chassis depth is 31" and under — deeper than the 23" 600 mm and 17" 450 mm WD models. Loading remains 220 lbs. Optional wood top is WA-WJW800. Open SPCC 2.0mm steel, flat-pack, casters. Use it for longer 19" chassis in a portable open rack, not as a substitute for a 2200 lb WN enclosed cabinet.
Key Features
Engineered for reliability and integration.
- 18U open portable rack — 800 mm (31.50") deep
- Fits chassis 31" and under — the deepest WD chassis class here
- Overall size 20.28" W × 38.00" H × 31.50" D (515.1 × 965.2 × 800.1 mm)
- Tallest and deepest WD in this import
- 220 lbs loading · SPCC 2.0mm steel
- Optional wood top p/n WA-WJW800
- Lightweight open rack with casters for moving equipment
- Open structure for room / HVAC airflow and quick access
- Compatible with HP/Dell/IBM sliding-rail servers
- M5 mounting screws and cage nuts included
- Ships flat-pack (unassembled) for faster install

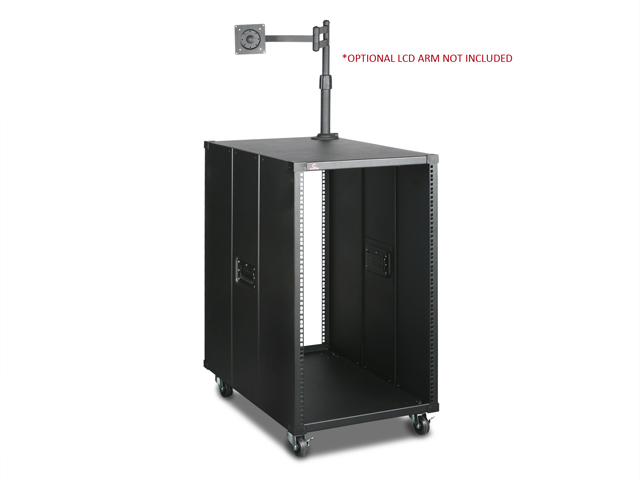

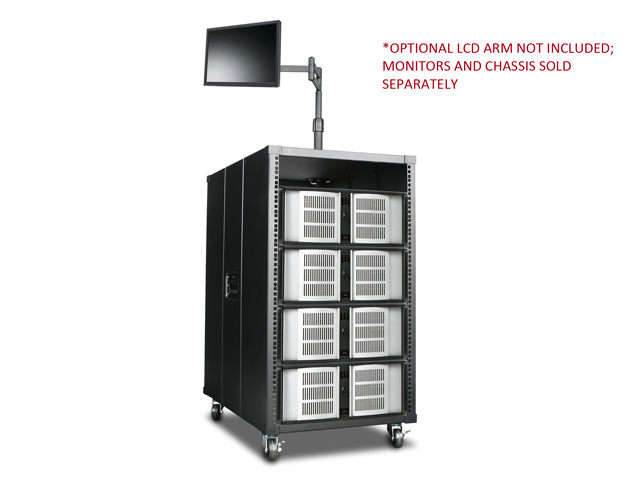

- Optional LCD monitor arm (p/n WA-LCDARM) and feet (p/n WA-FEET)
Specifications
Technical specifications.
| Model Number | WD-1880 |
|---|---|
| Product Category | Simple Portable Rack |
| Brand | Claytek |
| Series | WD — Simple Portable Rack |
| Form Factor | 18U |
| Cabinet Depth | 800 mm (31.50") |
| Supported Chassis Depth | 31" and under |
| Loading Capacity | 220 lbs |
| Material | Steel SPCC 2.0mm |
| Color | Black (special color on request) |
| Packaging | Flat pack — unassembled |
| Certification | RoHS compliant |
| Dimensions | 20.28" × 38.00" × 31.50" · 515.1 mm × 965.2 mm × 800.1 mm |
| Notes | Optional wood top WA-WJW800, LCD arm WA-LCDARM, feet WA-FEET. HTS 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WD-1880 is deployed.
Longer Portable Chassis
31" chassis class / 800 mm depth vs 17" or 23" on shorter WD racks.
18U Open Stacks
Most RU in the WD portable line imported here.
Studio / Lab Mobility
Casters, flat-pack, optional LCD arm and 800 mm wood top.
OEM/ODM
Special color on request.
Customization Options
Adapt the WD-1880 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WD-1880 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WD-1880 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WD-1880 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
