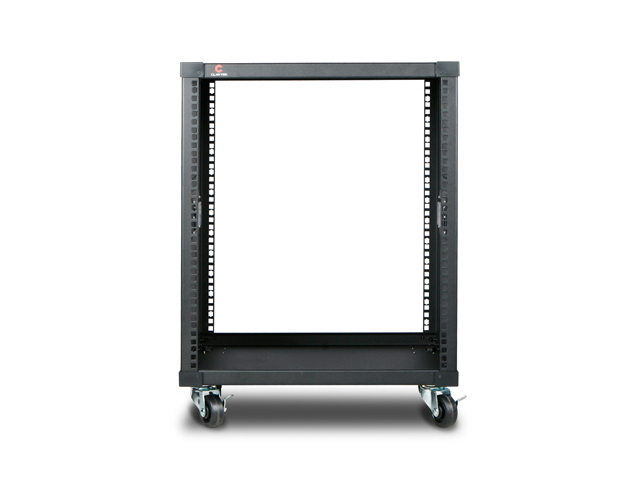

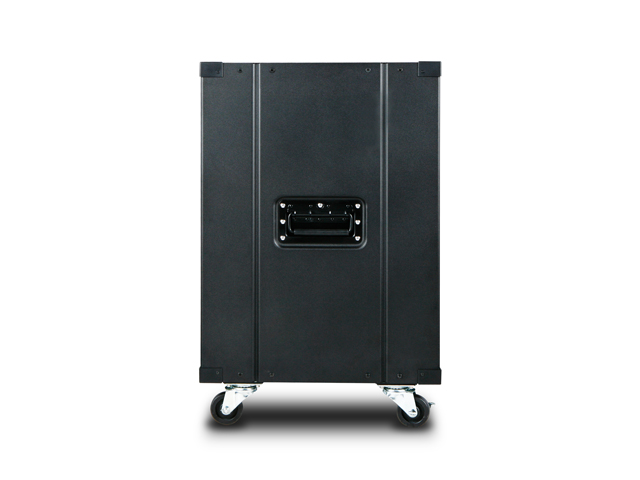

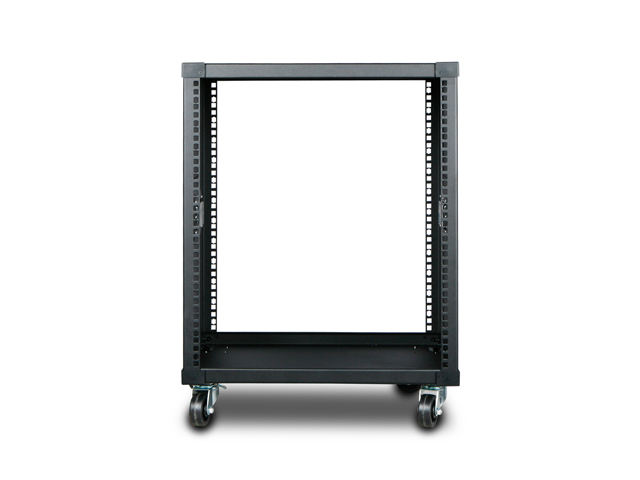

12U 450mm Depth Simple Server Rack
A 12U × 450 mm Claytek WD portable rack — more RU than WD-1045 at the same short 17" chassis class.
Product Overview
What the WD-1245 is built for.
WD-1245 is the 12U Claytek WD simple portable rack at 450 mm depth — 20.28" × 27.50" × 17.70" (515.1 × 698.5 × 449.6 mm). Supported chassis depth is 17" and under (same shallow class as WD-1045). Loading 220 lbs. Optional wood top WA-WJW450. Open SPCC 2.0mm steel, flat-pack, casters. Choose it over WD-1045 when you need two more RU without adding depth.
Key Features
Engineered for reliability and integration.
- 12U open portable rack — 450 mm (17.70") deep
- Fits chassis 17" and under
- Overall size 20.28" W × 27.50" H × 17.70" D (515.1 × 698.5 × 449.6 mm)
- Same 450 mm depth as WD-1045, 2 more RU
- 220 lbs loading · SPCC 2.0mm steel
- Optional wood top p/n WA-WJW450
- Lightweight open rack with casters for moving equipment
- Open structure for room / HVAC airflow and quick access
- Compatible with HP/Dell/IBM sliding-rail servers
- M5 mounting screws and cage nuts included
- Ships flat-pack (unassembled) for faster install
- Optional LCD monitor arm (p/n WA-LCDARM) and feet (p/n WA-FEET)
Specifications
Technical specifications.
| Model Number | WD-1245 |
|---|---|
| Product Category | Simple Portable Rack |
| Brand | Claytek |
| Series | WD — Simple Portable Rack |
| Form Factor | 12U |
| Cabinet Depth | 450 mm (17.70") |
| Supported Chassis Depth | 17" and under |
| Loading Capacity | 220 lbs |
| Material | Steel SPCC 2.0mm |
| Color | Black (special color on request) |
| Packaging | Flat pack — unassembled |
| Certification | RoHS compliant |
| Dimensions | 20.28" × 27.50" × 17.70" · 515.1 mm × 698.5 mm × 449.6 mm |
| Notes | Optional wood top WA-WJW450, LCD arm WA-LCDARM, feet WA-FEET. HTS 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WD-1245 is deployed.
Shallow 12U Stacks
450 mm depth / 17" chassis with more RU than WD-1045.
Small Office / Studio
Open portable rack, 220 lbs, casters.
Under-Desk / Counter
Short depth where 600 mm WD racks will not fit.
OEM/ODM
Special color on request; ships flat-pack.
Customization Options
Adapt the WD-1245 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WD-1245 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WD-1245 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WD-1245 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
