Adjustable Open Racks with Casters / WOR-2740C
Build-to-Order — 27U 40-inch Adjustable Open-frame Server Rack with Casters
Build-to-order 27U adjustable open-frame rack with casters: 22"–40" depth, 790 lbs static.
Product Overview
What the WOR-2740C is built for.

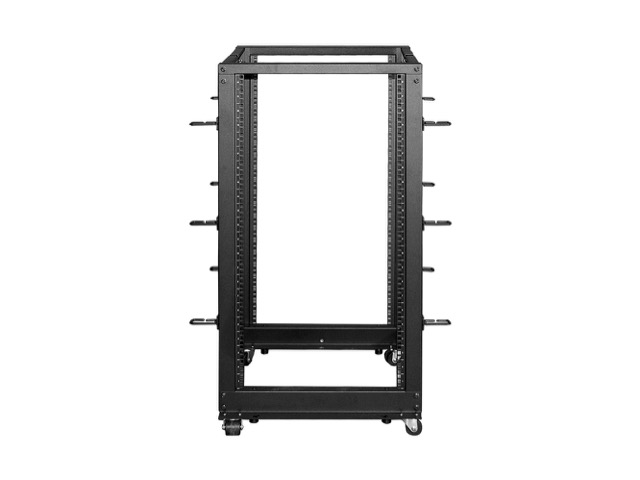

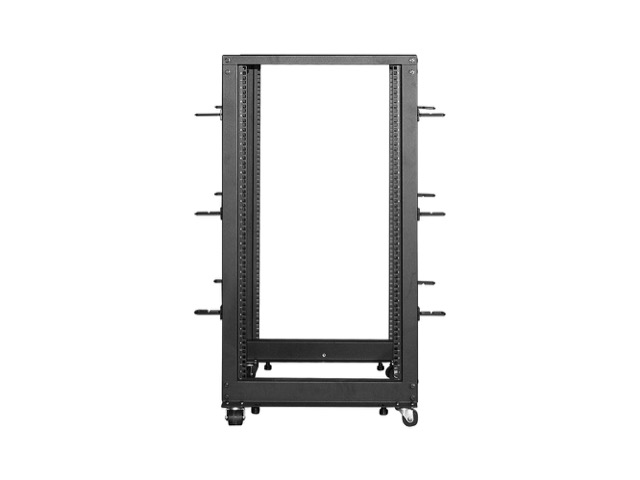

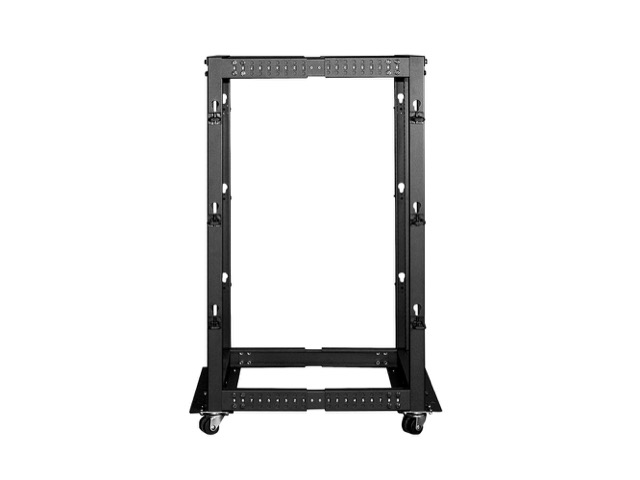

WOR-2740C is a build-to-order 27U 40-inch adjustable open-frame server rack with casters — 23.62" × 63.17" × 22.00" (599.9 × 1,604.5 × 558.8 mm) at the published envelope. Depth adjusts from 22" to 40" in 1-inch increments; supported chassis depth is 40" and under. Static loading 790 lbs. Black RAL9005, SPCC and aluminum, EIA-310, flat-pack. Wider than the WOR-xx11 line (23.62" vs 20.91") and rated higher (790 vs 375 lbs). C suffix = with casters.
Key Features
Engineered for reliability and integration.
- BTO 27U open-frame rack with casters
- Adjustable depth 22" to 40" (1-inch steps) · chassis 40" and under
- Overall size 23.62" W × 63.17" H × 22.00" D (599.9 × 1,604.5 × 558.8 mm)
- Static loading 790 lbs · black RAL9005
- Adjustable depth 22" to 40" in 1-inch increments
- Includes casters (C suffix)
- SPCC cold-rolled steel and aluminum
- Open-frame construction for quick access
- Easy assemble / disassemble · ships flat-pack
- Build-to-order
Specifications
Technical specifications.
| Model Number | WOR-2740C |
|---|---|
| Product Category | Adjustable Open Rack with Casters |
| Brand | Claytek |
| Series | WOR — Adjustable Open Rack |
| Form Factor | 27U |
| Industry Standard | EIA-310 |
| Cabinet Depth | Adjustable 22"–40" (1-inch increments) |
| Supported Chassis Depth | 40" and under |
| Loading Capacity | Static 790 lbs |
| Material | SPCC and aluminum |
| Color | Black (RAL9005) |
| Availability | Build-to-order |
| Packaging | Flat pack |
| Certification | RoHS compliant |
| Dimensions | 23.62" × 63.17" × 22.00" · 599.9 mm × 1,604.5 mm × 558.8 mm |
| Notes | C = with casters. Adjustable 22" to 40" in 1-inch increments. |
Downloads
Documentation & drawings.
Applications
Where the WOR-2740C is deployed.
Mobile 27U Open Frame
Casters plus 790 lb static rating vs 375 lb WOR-xx11.
22–40" Chassis
1-inch increment depth vs 27.56–43.3" on WOR-xx11.
BTO
Build-to-order; confirm lead time with sales.
Vs 45U Caster SKU
Same 40" class as WOR-4540C, 18 fewer RU.
Customization Options
Adapt the WOR-2740C to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WOR-2740C is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WOR-2740C with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WOR-2740C and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
