4-Post Open Racks / WOS-490
4U 900mm Open Frame Rack
The compact Claytek WOS 4-post open rack: 4U high and 900 mm deep, 440 lbs, with locking casters.
Product Overview
What the WOS-490 is built for.

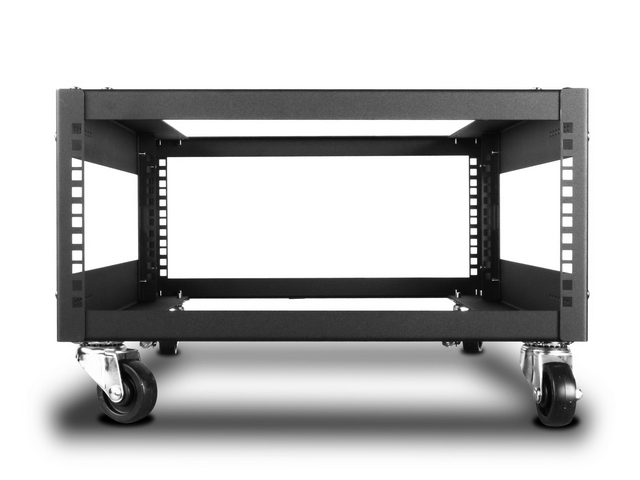

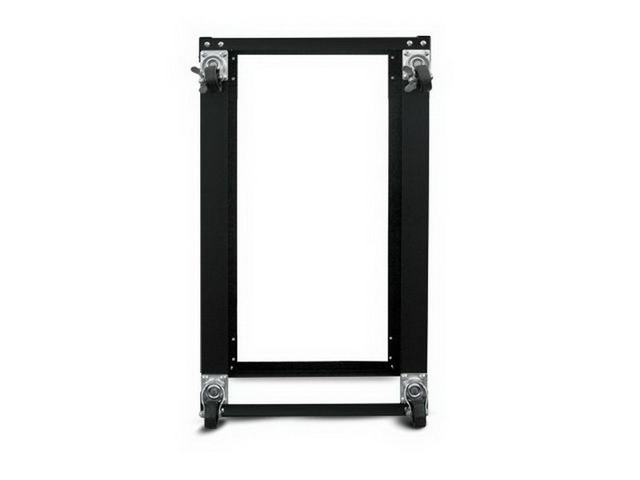

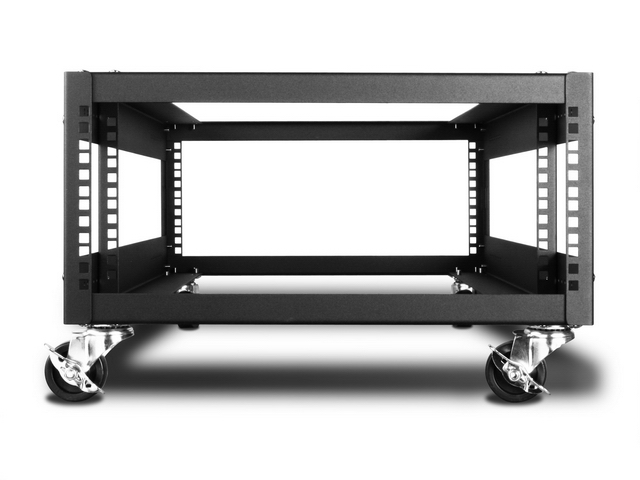

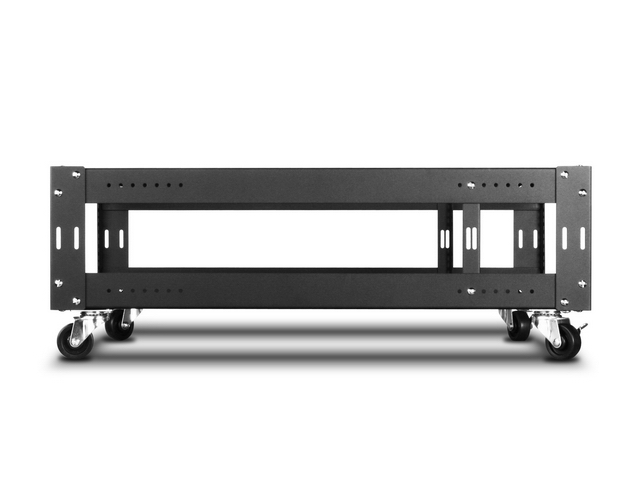

WOS-490 is the 4U × 900 mm Claytek WOS 4-post open frame rack — 20.00" × 12.70" × 35.40" (508.0 × 322.6 × 899.2 mm). Supported chassis depth is 35" and under. Loading is 440 lbs (double the 220 lb WD portable racks; far below enclosed WN cabinets). SPCC 2.0mm, black, locking casters, sliding-rail compatible. Lowest WOS height in this import.
Key Features
Engineered for reliability and integration.

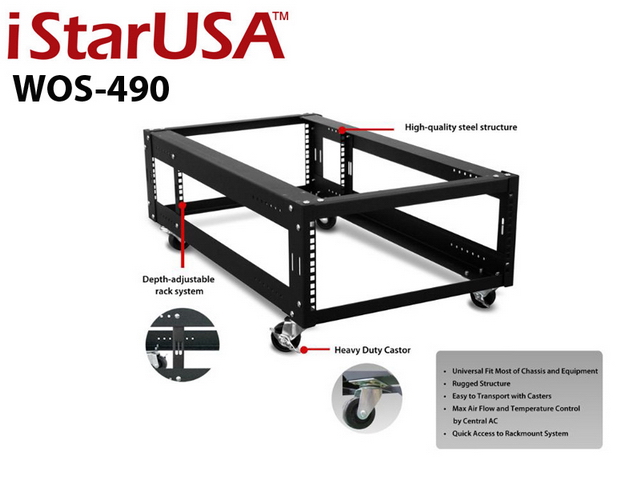

- 4U 4-post open frame — 900 mm (35.40") deep
- Fits chassis 35" and under
- Overall size 20.00" W × 12.70" H × 35.40" D (508.0 × 322.6 × 899.2 mm)
- 440 lbs loading · SPCC 2.0mm · black

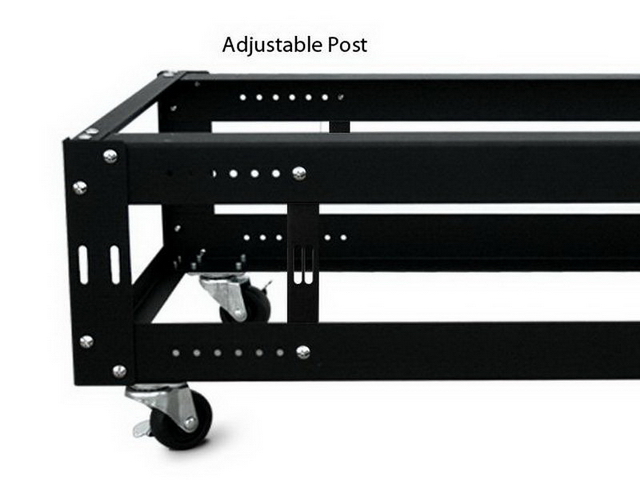

- Open-frame construction for airflow and quick access

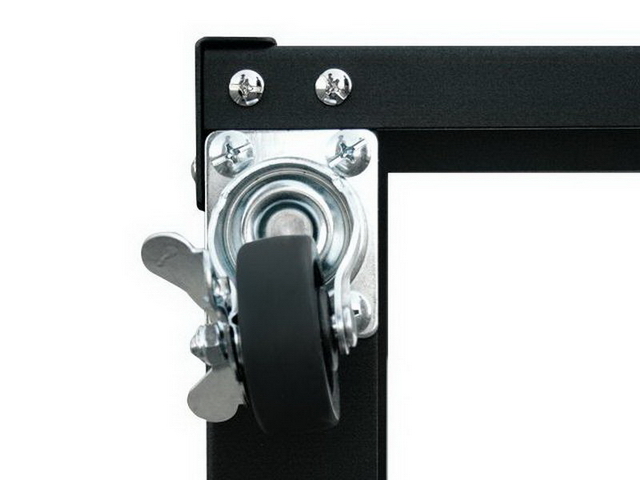

- Ultra-lightweight with locking casters
- Compatible with HP/Dell/IBM sliding-rail servers
- M5 mounting screws and cage nuts included
- Cost-effective 19" open-frame solution
Specifications
Technical specifications.
| Model Number | WOS-490 |
|---|---|
| Product Category | 4-Post Open Rack |
| Brand | Claytek |
| Series | WOS — 4 Post Rack |
| Form Factor | 4U |
| Cabinet Depth | 900 mm (35.40") |
| Supported Chassis Depth | 35" and under |
| Loading Capacity | 440 lbs |
| Material | SPCC 2.0mm |
| Color | Black |
| Certification | RoHS compliant |
| Dimensions | 20.00" × 12.70" × 35.40" · 508.0 mm × 322.6 mm × 899.2 mm |
| Notes | Locking casters. HTS 8473.30.5100. |
Downloads
Documentation & drawings.
Applications
Where the WOS-490 is deployed.
Compact Open 4U
4U × 900 mm open frame for a short 19" stack with 35" chassis clearance.
Lab / Test
Open access, locking casters, 440 lbs.
Sliding-Rail Servers
Compatible with HP/Dell/IBM sliding rails.
Cost-Effective 19"
Open frame vs enclosed WN or quiet WQ cabinets.
Customization Options
Adapt the WOS-490 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front Panel Customization
Mechanical Modification
Cooling Design
Branding / Labeling
Long Lifecycle Planning
Two Ways to Buy
Order the standard model — or use it as a platform.
The WOS-490 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the WOS-490 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the WOS-490 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
