Drive Cages & Hot-swap Modules / BPU-340SATA
3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-340SATA — 3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack. Tray; Hotswap 3.5": 1 · 5.25" host 3; 3.5" SAS I/II & SATA I/II/III; SATA 6Gb/s; 1x80mm fan.
Product Overview
What the BPU-340SATA is built for.
High level Raid and high availability storage in compact design, BPU-340SATA series adds extra storage and hot-swap capability to satisfy any application needs. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation. High density multi-disk storage backplane that allows multiple four 3.5" SAS/SATA hard drives to be mounted into three standard 5.25" drive bays. BPU-340SATA supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. Aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, is designed with excellent front to back vent airflow. Applications: Digital Audio Editing,Video Editing (SD or HD), Security System, SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup. BPU-340SATA is filed as an Anhsin Internal HDD Cage under Tray. Host opening: Hotswap 3.5": 1 · 5.25" Drives: 3. Hot-swap map: 3.5" SAS I/II & SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s · SAS. Cooling: 1x80mm. Envelope (W×H×D): 5.75" x 4.96" x 8.03" · 146.1 mm x 126.0 mm x 204.0 mm.
Key Features
Engineered for reliability and integration.
- Stylish aluminum color handle and heat-sink body
- Support Hot-Swap & RAID Configuration (need an additional RAID controller)

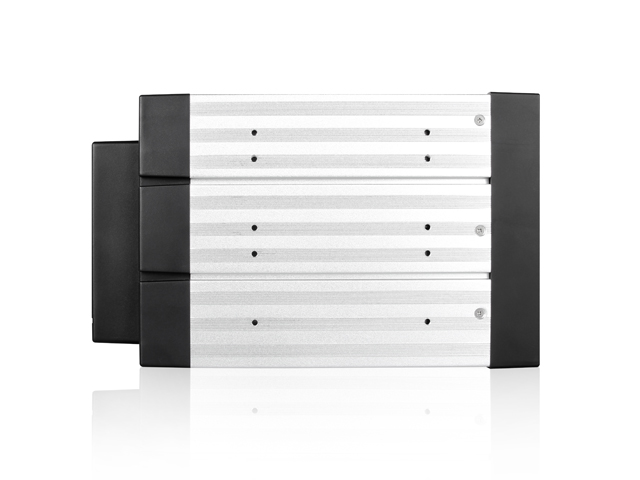

- Aluminum Design with Conductive Dissipation Grooves

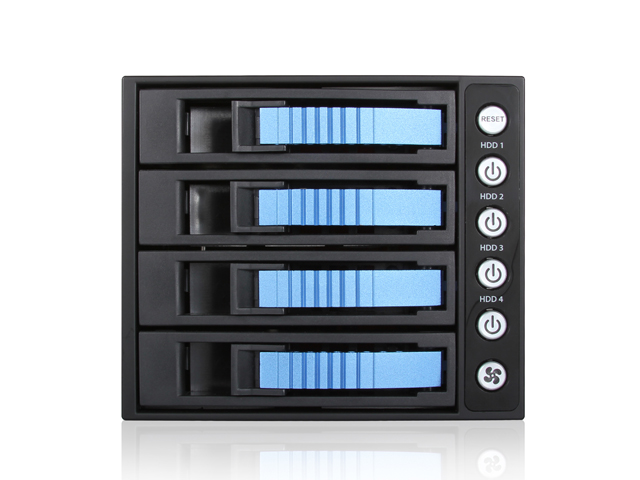

- Power, fan and high temperature LED indicators
- High Performance Transfer Rate up to 6.0 Gb/s
- Supports Both 2.5" and 3.5" SAS I/II & SATA I/II/III HDDs
- Equipped with Fan Speed Control Switch
- 12TB Hard Drives Compatible
Specifications
Technical specifications.
| Model Number | BPU-340SATA |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Tray |
| Host Bay | Hotswap 3.5": 1 · 5.25" Drives: 3 |
| Drive Bays | 3.5" SAS I/II & SATA I/II/III |
| Interface | SATA 6Gb/s · SAS |
| Indicators | Power, HDD, fan, and high temperature |
| Material of Front Bezel | Aluminum |
| Color of Front Bezel | Black/ Blue/ Red/ Silver |
| Material of Handle | Aluminum |
| Material of Main Chassis | Aluminum Design with Conductive Dissipation Grooves |
| Color of Main Chassis | Black |

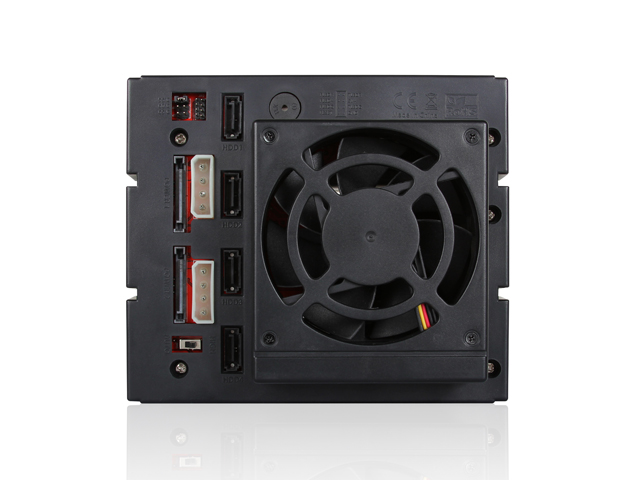

| Cooling Fan | 1x80mm |
| Package Content | SATA Cable Included (4pcs) |
| Ordering Information | Black Tray:BPU-340SATA-BLACK · Blue Tray:BPU-340SATA-BLUE · Red Tray:BPU-340SATA-RED · Silver Tray:BPU-340SATA-SILVER · Lockable Tray:BPU-340SATA-BPL |
| Dimensions | 5.75" x 4.96" x 8.03" · 146.1 mm x 126.0 mm x 204.0 mm |
| Certification | RoHS compliant |
| Drive Size Class | 3.5" |
Applications
Where the BPU-340SATA is deployed.
BPU-340SATA SATA/SAS bay conversion
Convert Hotswap 3.5": 1 · 5.25" Drives: 3 into 3.5" SAS I/II & SATA I/II/III hot-swap capacity for workstation and industrial storage.
BPU-340SATA serviceable tray
Tray carrier lets a technician extract the drive without opening the host chassis — field-replaceable storage.
BPU-340SATA actively cooled bay
Specified cooling: 1x80mm — keep 12Gb/s or dense 2.5" packs inside the published thermal envelope.
BPU-340SATA OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the BPU-340SATA to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
BPU-340SATA: tray / carrier finish and backplane connector matching
Fan option around the published 1x80mm configuration
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The BPU-340SATA is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the BPU-340SATA with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the BPU-340SATA and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
