Drive Cages & Hot-swap Modules / T-G525-SS
Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
T-G525-SS — Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack. Tray; Hotswap 3.5": 1 · 5.25" host 1; 3.5" SAS I/II & SATA I/II/III; SATA 6Gb/s; Key Lock.
Product Overview
What the T-G525-SS is built for.

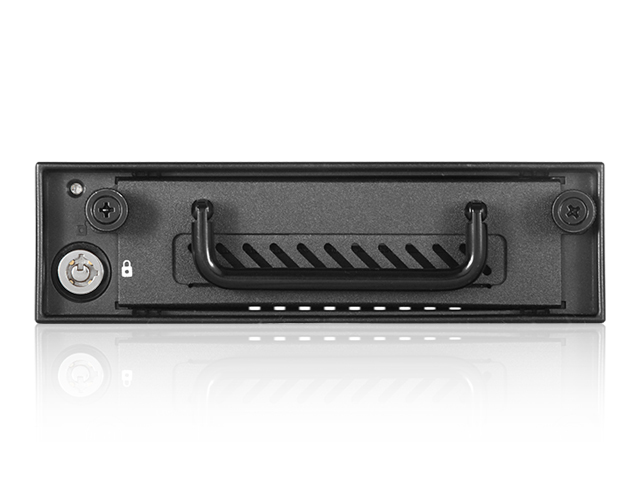

Industrial design iStarUSA T-G525-SS hotswap hard drive cage. With unique screwless HDD mounting patented design, high performance SAS/SATA 6.0Gb/s interface, and easy swap tray design, T-G525-SS is tough in strength but flexible in functionality. By popular demand, the LED display light features blue light to show hard drive power and red light for HDD accessing. Heat dissipation is enhanced by 30mm fan. And the metal security key lock prevents unauthorized access to your important hard drives. T-G525-SS is filed as an Anhsin Internal HDD Cage under Tray. Host opening: Hotswap 3.5": 1 · 5.25" Drives: 1. Hot-swap map: 3.5" SAS I/II & SATA I/II/III. Interface language on the original spec/feature list: SATA 6Gb/s · SAS. Security: Key Lock. Envelope (W×H×D): 5.75" x 1.63" x 6.81" · 146.1 mm x 41.4 mm x 173.0 mm.
Key Features
Engineered for reliability and integration.
- Patented Screw-less HDD Mounting Design for Standard 3.5" HDDs

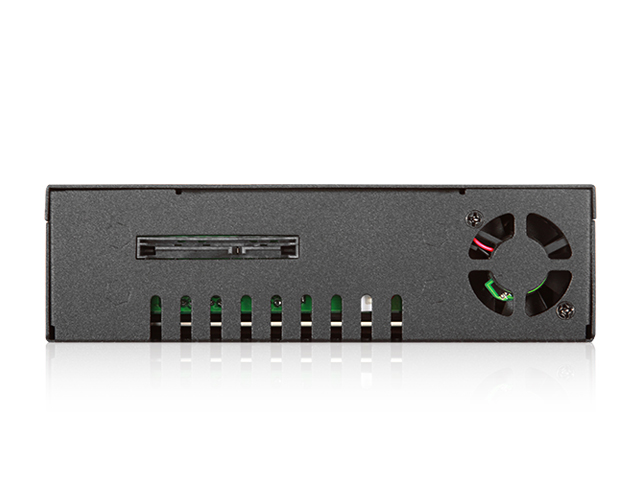

- Best Air Ventilation with Metal Body and 30mm Cooling Fan
- High Performance Transfer Rate up to 6.0 Gb/s
- Support Both 2.5" and 3.5" SAS I/II & SATA I/II/III HDDs
- Thumbscrews for Easy HDD Swaps
- Supports 2.5" HDD/SSD
Specifications
Technical specifications.
| Model Number | T-G525-SS |
|---|---|
| Product Category | Drive Cages & Hot-swap Modules |
| Original Brand | Anhsin |
| Original Series | Internal HDD Cage |
| Hot-swap Type | Tray |
| Host Bay | Hotswap 3.5": 1 · 5.25" Drives: 1 |
| Drive Bays | 3.5" SAS I/II & SATA I/II/III |
| Interface | SATA 6Gb/s · SAS |
| Indicators | Power and HDD activity |
| Security | Key Lock |
| Material of Front Bezel | Plastic |
| Color of Front Bezel | Black |
| Material of Handle | Stainless Steel |
| Material of Main Chassis | Metal |
| Color of Main Chassis | Black |
| Dimensions | 5.75" x 1.63" x 6.81" · 146.1 mm x 41.4 mm x 173.0 mm |
| Notes | - screwless 3.5" HDD tray is not compatible with slim 3.5" HDDs · - screwless 3.5" HDD tray is not compatible with 2.5" HDDs. screws are still needed for 2.5" HDDs |
| Certification | RoHS compliant |
| Drive Size Class | 3.5" |
Applications
Where the T-G525-SS is deployed.
T-G525-SS SATA/SAS bay conversion
Convert Hotswap 3.5": 1 · 5.25" Drives: 1 into 3.5" SAS I/II & SATA I/II/III hot-swap capacity for workstation and industrial storage.
T-G525-SS serviceable tray
Tray carrier lets a technician extract the drive without opening the host chassis — field-replaceable storage.
T-G525-SS locked drive bay
Original spec lists Key Lock — use in labs and shared racks where the drive must stay in the carrier.
T-G525-SS OEM / Design-In
Anhsin Internal HDD Cage under iStarUSA — bezel, fan, and envelope options follow the published spec; inquire for drawing-matched revisions.
Customization Options
Adapt the T-G525-SS to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
T-G525-SS: tray / carrier finish and backplane connector matching
Lock hardware as specified (Key Lock) — cylinder/key matching on OEM lots
Bezel color, silk-screen, and logo
OEM labeling and long-lifecycle Anhsin / iStarUSA supply
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The T-G525-SS is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the T-G525-SS with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the T-G525-SS and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
