Fanless Enclosure / FS-1017
1U Fanless Enclosure for Mini-ITX
A 17.00 × 1.75 × 9.40 inch 1U fanless Mini-ITX with C7 80W or C4 150W converters and one slot-card.
Product Overview
What the FS-1017 is built for.
FS-1017 is the short-depth 1U fanless Mini-ITX: 17.00 × 1.75 × 9.40 inches, one internal 2.5" bay, a list-page hot-swap 2.5" tray, and one rear slot-card. Converter options on the product page are C7 80W 12V or C4 150W 19–24V — pick at Design-In, not in the field.
Key Features
Engineered for reliability and integration.

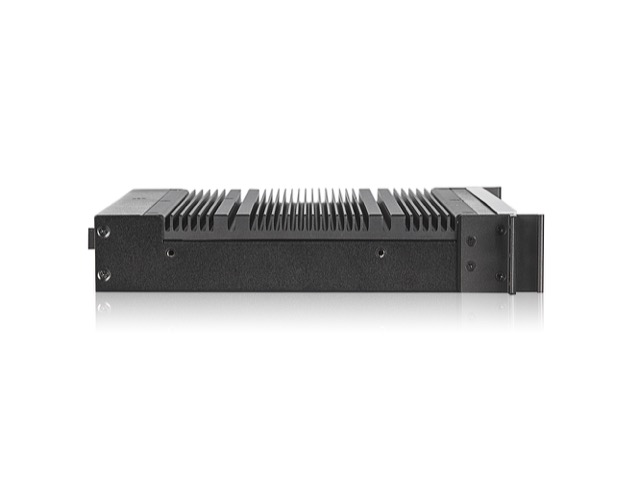

- Fanless, dust-resistant operation — no system fans in the enclosure
- Motherboard window: Mini-ITX
- Drive map: Internal Drive Bay: 2.5" HDD x 1 · Hot-swap: SATA 2.5" HDD tray x1 (Hot-swap)
- Expansion: Solt-card x1
- Power: 1. C7(80W) 12 DCVin Converter · 2.C4(150W) 19V-24V Cnverter
- Envelope (W×H×D): 17.00" x 1.75" x 9.40"
- Front power, LED, and USB service cluster as specified
Specifications
Technical specifications.
| Model Number | FS-1017 |
|---|---|
| Product Category | Fanless Enclosure |
| Form Factor | 1U |
| Motherboard Support | Mini-ITX |
| Drive Bays | Internal Drive Bay: 2.5" HDD x 1 · Hot-swap: SATA 2.5" HDD tray x1 (Hot-swap) |
| Expansion Slots | Solt-card x1 |
| Cooling | Fanless |
| PSU Support | 1. C7(80W) 12 DCVin Converter · 2.C4(150W) 19V-24V Cnverter |

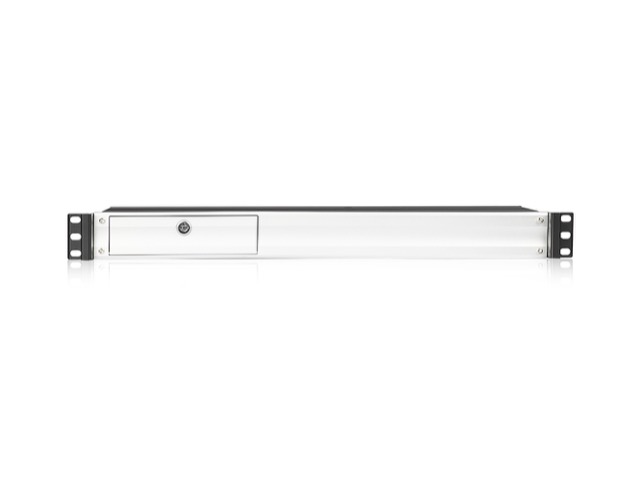

| Front Panel | Power SW x1 + LED + HDD LCD · USB x2 (USB3.0 optional) |

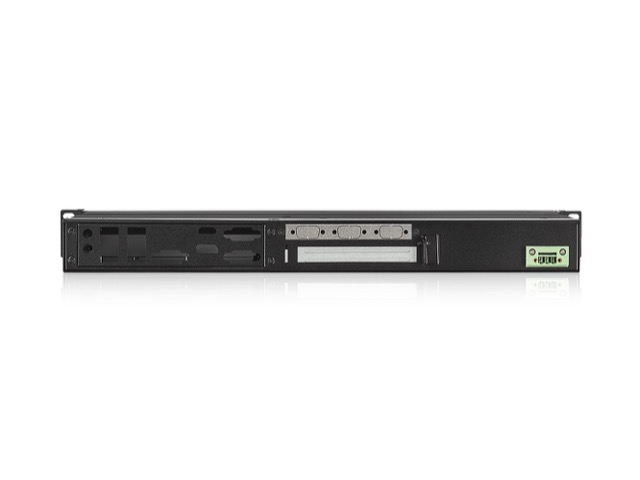

| Rear Panel | Standard I/O shield · Solt-card x1 |
| Dimensions | 17.00" x 1.75" x 9.40" · 431.8 mm x 44.5 mm x 238.8 mm |
| Certification | RoHS compliant |
Applications
Where the FS-1017 is deployed.
Silent Rack Cell
1U fanless Mini-ITX for control rooms that cannot take fan noise.
Dusty Factory Node
No system fans — storage and slots as specified per SKU.
DC-Powered Edge
1. C7(80W) 12 DCVin Converter · 2.C4(150W) 19V-24V Cnverter
OEM Fanless Rack
FactorySmith 19" fanless program with optional rails.
Customization Options
Adapt the FS-1017 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Heatsink and DC-converter matching to the selected board
I/O cutout and front-panel layout
Drive-bay and slot-card options
Color, silk-screen, and logo
Mounting brackets and OEM labeling
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-1017 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-1017 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-1017 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
