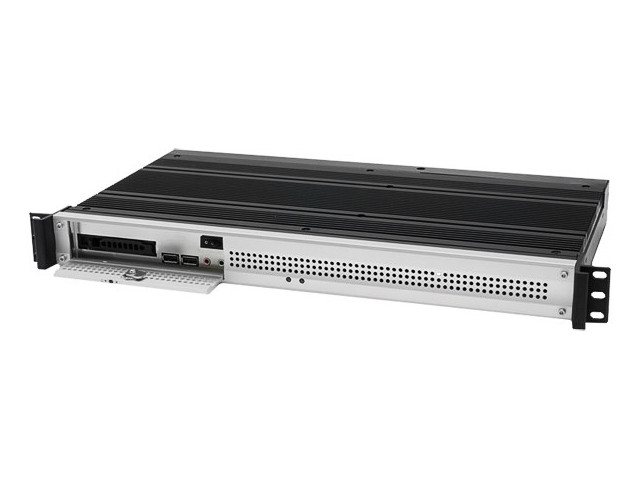

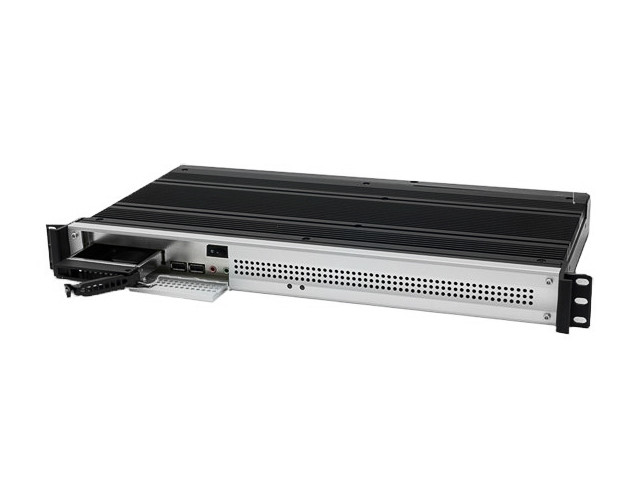

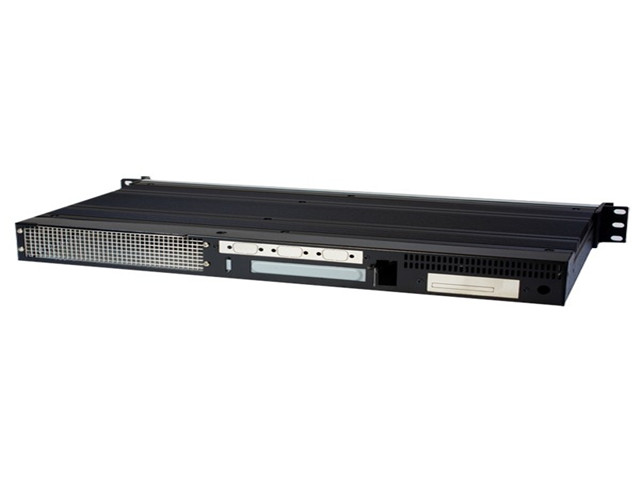

Fanless Enclosure / FS-11100
1U Rackmount Fanless Chassis for Mini-ITX
Aluminum 1U fanless Mini-ITX, 9.90 inches deep, one PCI slot, TDP 50W, with an included internal DC board.
Product Overview
What the FS-11100 is built for.
FS-11100 is the shallow aluminum 1U fanless Mini-ITX: 19.00 × 1.73 × 9.90 inches, stylish extruded front bezel, one PCI slot, and a stated CPU TDP of 50W. Drive options are 1 × 3.5" or 2 × 2.5" internal; a DC board is included with AC 100–240V adapter input. Sliding rails and rear/center brackets are optional.
Key Features
Engineered for reliability and integration.
- Stylish design with aluminum extruded front panel
- Silent, dust-free & energy-efficient operation
- Supports 1 x Expansion slot; CPU TDP 50W
- Fanless, dust-resistant operation — no system fans in the enclosure
- Motherboard window: Mini-ITX
- Drive map: Internal Drive Bay: 1 x 3.5" OR 2 x 2.5"
- Expansion: 1 x PCI
- Power: DC Solutions · AC 100V - 240V · Internal DC board: Included
Specifications
Technical specifications.
| Model Number | FS-11100 |
|---|---|
| Product Category | Fanless Enclosure |
| Form Factor | 1U |
| Motherboard Support | Mini-ITX |
| Drive Bays | Internal Drive Bay: 1 x 3.5" OR 2 x 2.5" |
| Expansion Slots | 1 x PCI |
| Cooling | Fanless |
| PSU Support | DC Solutions · AC 100V - 240V · Internal DC board: Included |
| Front Panel | LED: 1 x Activity; 1 x Power · USB: 2 · Power SW: 1 · Audio: 1 x Line Out · MIC: 1 |
| I/O Shield | 2 x Universal I/O |
| Material | Aluminum chassis with stylish aluminum front bezel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 10 |
| Mounting | Optional sliding rail, rear/center mount brackets |
| Memory Height | Accepts standard size |
| Compact Flash | 1 x CF Cutoff |
| DB9 Cutoff | 3 |
| Dimensions | 19.00" x 1.73" x 9.90" · 482.6 mm x 43.9 mm x 251.5 mm |
| Certification | RoHS compliant |
Applications
Where the FS-11100 is deployed.
Silent Rack Cell
1U fanless Mini-ITX for control rooms that cannot take fan noise.
Dusty Factory Node
No system fans — storage and slots as specified per SKU.
DC-Powered Edge
DC Solutions · AC 100V - 240V · Internal DC board: Included
OEM Fanless Rack
FactorySmith 19" fanless program with optional rails.
Customization Options
Adapt the FS-11100 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Heatsink and DC-converter matching to the selected board
I/O cutout and front-panel layout
Drive-bay and slot-card options
Color, silk-screen, and logo
Mounting brackets and OEM labeling
Long-lifecycle FactorySmith program
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-11100 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-11100 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-11100 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
Product quotation
Request a quote for this model.
Standard or slightly modified builds of FS-11100 can be quoted on this page. For OEM/ODM manufacturing, system build and integration, or data center planning and deployment, start a project.
