Fanless Enclosure / FS-1018
1U Fanless Enclosure for Mini-ITX
Deeper 1U fanless Mini-ITX (17.00 × 1.70 × 15.00 inches) with two 2.5" bays and a front hot-swap 2.5" tray.
Product Overview
What the FS-1018 is built for.
FS-1018 stretches the 1U fanless Mini-ITX to 15.00 inches deep so two internal 2.5" drives and a front-panel hot-swap 2.5" tray fit beside the slot-card opening. Converter choice is the same C7 80W / C4 150W pair as FS-1017; depth is the reason to step up.
Key Features
Engineered for reliability and integration.
- Fanless, dust-resistant operation — no system fans in the enclosure
- Motherboard window: Mini-ITX
- Drive map: Internal Drive Bay: 2.5" HDD x 2
- Expansion: Solt-card x1
- Power: 1. C7(80W) 12 DCVin Converter · 2.C4(150W) 19V-24V Cnverter
- Envelope (W×H×D): 17.00" x 1.70" x 15.00"
- Front power, LED, and USB service cluster as specified
Specifications
Technical specifications.
| Model Number | FS-1018 |
|---|---|
| Product Category | Fanless Enclosure |
| Form Factor | 1U |
| Motherboard Support | Mini-ITX |
| Drive Bays | Internal Drive Bay: 2.5" HDD x 2 |
| Expansion Slots | Solt-card x1 |
| Cooling | Fanless |
| PSU Support | 1. C7(80W) 12 DCVin Converter · 2.C4(150W) 19V-24V Cnverter |

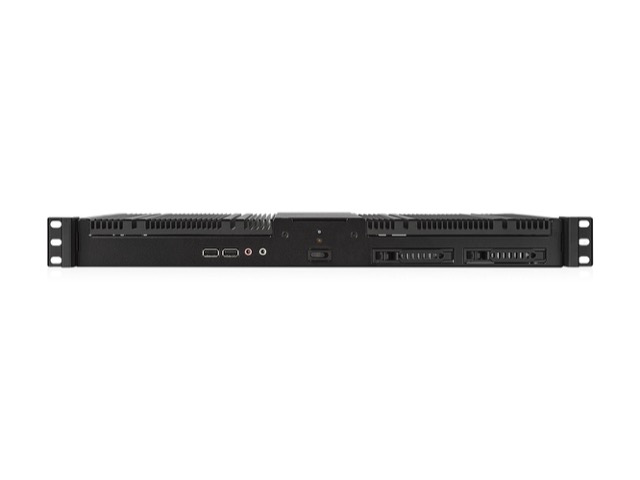

| Front Panel | Power SW x1 + LED + HDD LCD · USB x2 (USB3.0 optional) · SATA 2.5" HDD tray x1 (Hot-swap) |

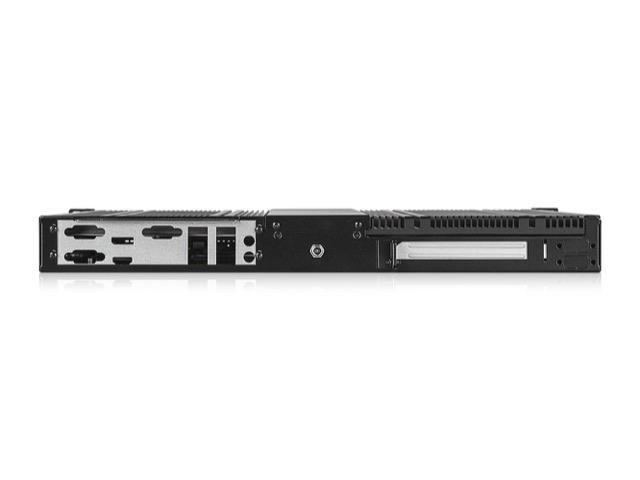

| Rear Panel | Standard I/O shield · Solt-card x1 |
| Dimensions | 17.00" x 1.70" x 15.00" · 431.8 mm x 43.2 mm x 381.0 mm |
| Certification | RoHS compliant |
Applications
Where the FS-1018 is deployed.
Silent Rack Cell
1U fanless Mini-ITX for control rooms that cannot take fan noise.
Dusty Factory Node
No system fans — storage and slots as specified per SKU.
DC-Powered Edge
1. C7(80W) 12 DCVin Converter · 2.C4(150W) 19V-24V Cnverter
OEM Fanless Rack
FactorySmith 19" fanless program with optional rails.
Customization Options
Adapt the FS-1018 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Heatsink and DC-converter matching to the selected board
I/O cutout and front-panel layout
Drive-bay and slot-card options
Color, silk-screen, and logo
Mounting brackets and OEM labeling
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-1018 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-1018 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-1018 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
