IPC Rackmount / FS-12341

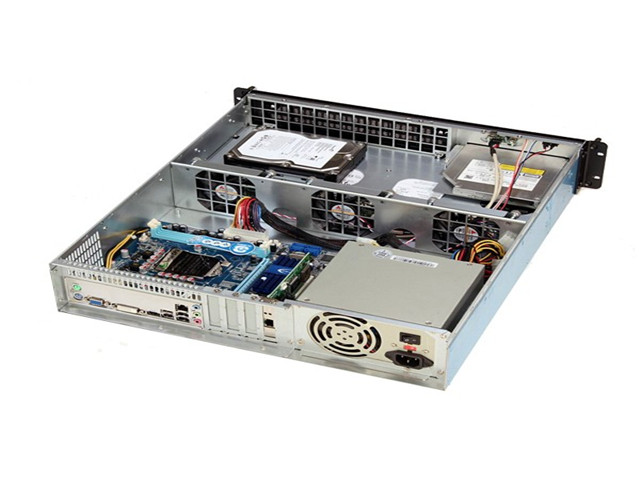

2U Rackmount Chassis for Micro-ATX Systems
Deeper 2U microATX (19.96 inches) with slim optical, four low-profile slots, and four 3.5" hot-swap.
Product Overview
What the FS-12341 is built for.
FS-12341 is FS-12340’s longer 2U microATX cousin: 19.96 inches deep, slim optical bay, internal 1 × 3.5" or 1 × 2.5", four front 3.5" hot-swap, four low-profile slots, CF, three 80 mm fans, PSII. Choose it when the 2U microATX build needs an optical slot rather than dual internal 3.5".
Key Features
Engineered for reliability and integration.
- 2U industrial rackmount platform for Micro-ATX motherboards (9.6" x 9.6")
- Supports: 2 x hot-swap, 4 x low profile expansion, front access slim type disk drive slot
- Board support: Micro-ATX
- Storage: Internal Drive Bay: 1 x 3.5" OR 1 x 2.5" · Optical Drive Bay: 1 (Slim) · Hot-swap: 4 x 3.5" HDD Tray (Front)
- Expansion: 4 x Low Profile
- Cooling: 3 x 80mm fan
- PSU: PSII
- Chassis: Heavy duty cold-rolled steel
Specifications
Technical specifications.
| Model Number | FS-12341 |
|---|---|
| Product Category | IPC Rackmount |
| Form Factor | 2U |
| Motherboard Support | Micro-ATX |
| Drive Bays | Internal Drive Bay: 1 x 3.5" OR 1 x 2.5" · Optical Drive Bay: 1 (Slim) · Hot-swap: 4 x 3.5" HDD Tray (Front) |
| Expansion Slots | 4 x Low Profile |
| Cooling | 3 x 80mm fan |
| PSU Support | PSII |
| Front Panel | LED: 1 x Activity; 1 x Power · USB: 2 · Power SW: 1 |
| I/O Shield | Standard I/O |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 30 |
| Mounting | Optional Sliding rails |
| Memory Height | Accepts standard size |
| Compact Flash | 1 x CF Cutoff |
| Dimensions | 19.00" x 3.46" x 19.96" · 482.6 mm x 87.9 mm x 507.0 mm |
| Certification | RoHS compliant |
Applications
Where the FS-12341 is deployed.
Industrial Control
2U IPC chassis for PLC, SCADA, and line controllers.
Machine Vision Host
4 x Low Profile for capture and GPU/FPGA cards.
Factory Storage Node
Internal Drive Bay: 1 x 3.5" OR 1 x 2.5" · Optical Drive Bay: 1 (Slim) · Hot-swap: 4 x 3.5" HDD Tray (Front)
OEM/ODM Rack IPC
Bezel, PSU, and bay options under a FactorySmith drawing.
Customization Options
Adapt the FS-12341 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front-panel I/O and LED layout
Hot-swap bay count and backplane
PSU selection (Flex ATX / PS2 / DC)
Fan, filter, and rail kits
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-12341 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-12341 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-12341 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
