FS-12140
Active2U Rackmount Chassis for Mini-ITX Systems
2U · Mini-ITX · Internal Drive Bay: 1 x 2.5" HDD · Optical… · 1 · 2 x 80mm fan
View Product Detail2U
2U IPC chassis spanning Mini-ITX dual-node, microATX, ATX, and PICMG layouts.
Products

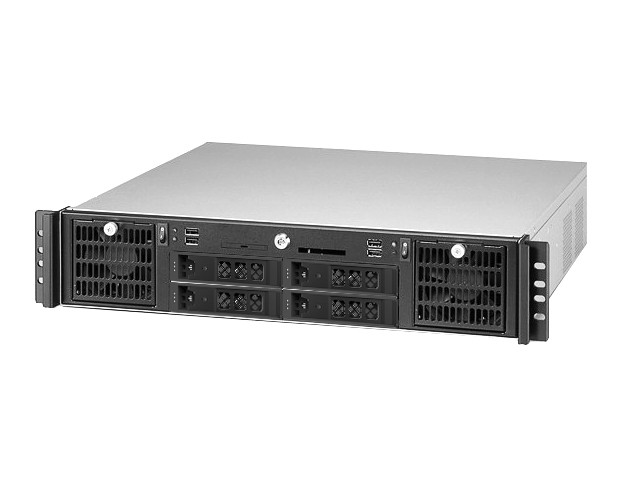

FS-12241
Active2U Rackmount Chassis for Mini-ITX Systems
2U · Mini-ITX · Internal Drive Bay: 2 x 2.5" and 4 x 3.5" ·… · 2 x Low Profile · 4 x 80mm fan
View Product Detail

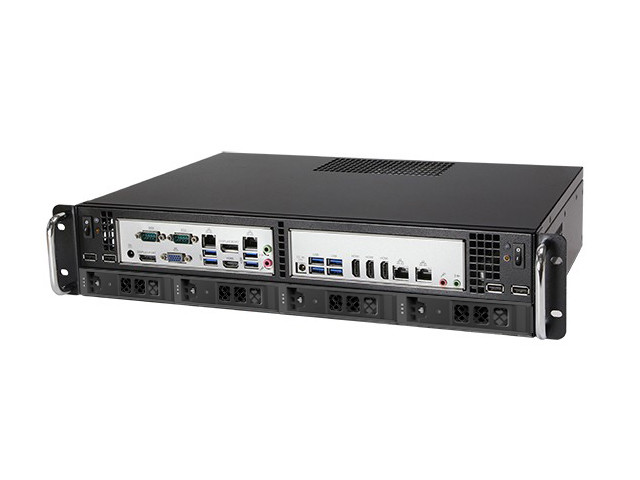

FS-12242
Active2U Rackmount Chassis for 2 × Mini-ITX Systems
2U · Mini-ITX · Internal Drive Bay: 2 x 2.5"HDD · Hot-swap: 4… · none · 8cm fan x 2
View Product Detail

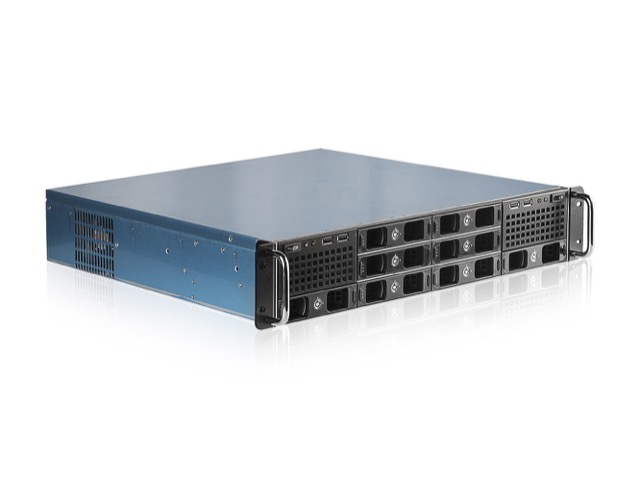

FS-12280
Active2U Rackmount Chassis for 2 × Mini-ITX Systems
2U · Mini-ITX · Internal Drive Bay: 2 x 2.5" HDD · Hot-swap:… · 2 x PCI · 2 x 80mm fan
View Product Detail

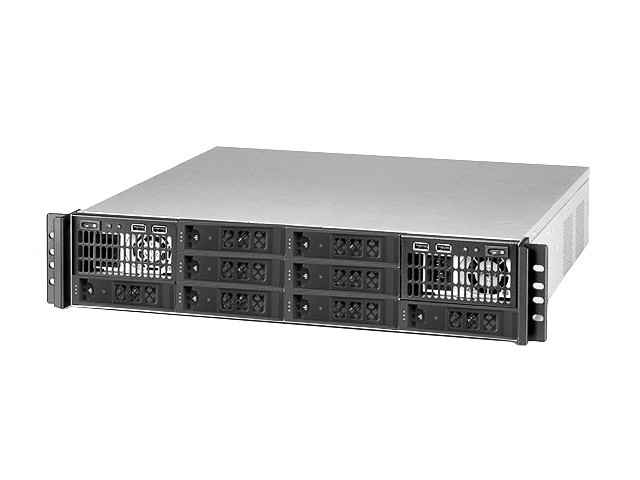

FS-12281
Active2U Rackmount Chassis for 2 × Mini-ITX Systems
2U · Mini-ITX · Internal Drive Bay: 2 x 2.5" HDD · Hot-swap:… · 2 x Low Profile · 2 x 80mm fan
View Product Detail

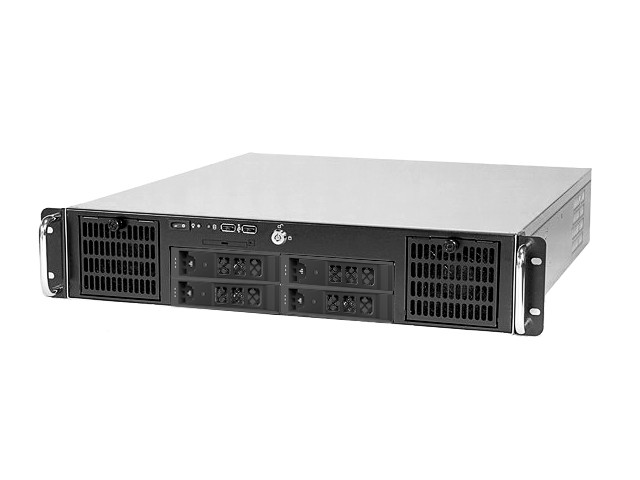

FS-12340
Active2U Rackmount Chassis for Micro-ATX Systems
2U · Micro-ATX · Internal Drive Bay: 2 x 2.5" OR 2 x 3.5" ·… · 4 x Low Profile · 3 x 80mm fan
View Product Detail

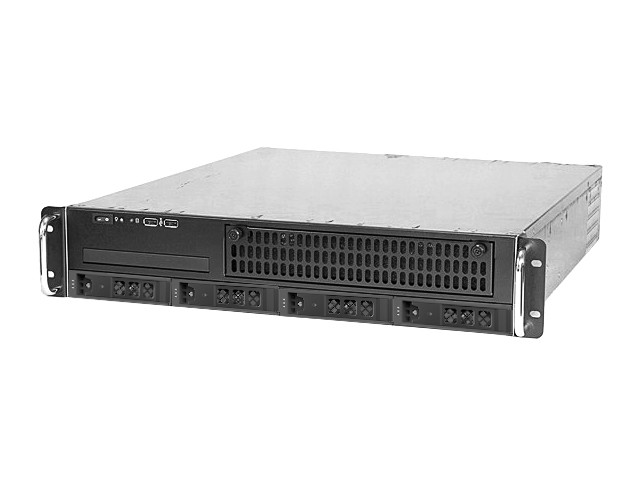

FS-12341
Active2U Rackmount Chassis for Micro-ATX Systems
2U · Micro-ATX · Internal Drive Bay: 1 x 3.5" OR 1 x 2.5" ·… · 4 x Low Profile · 3 x 80mm fan
View Product Detail

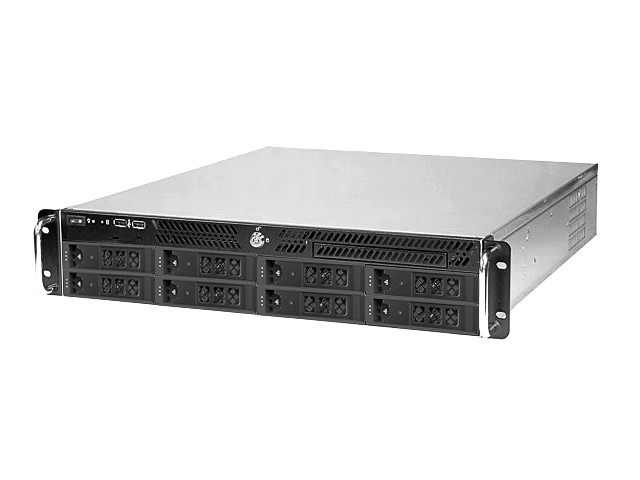

FS-12380
Active2U Rackmount Chassis for Micro-ATX Systems
2U · Micro-ATX · Internal Drive Bay: 1 x 3.5" OR 1 x 2.5" ·… · 4 x Low Profile · 1 x 80mm fan
View Product Detail

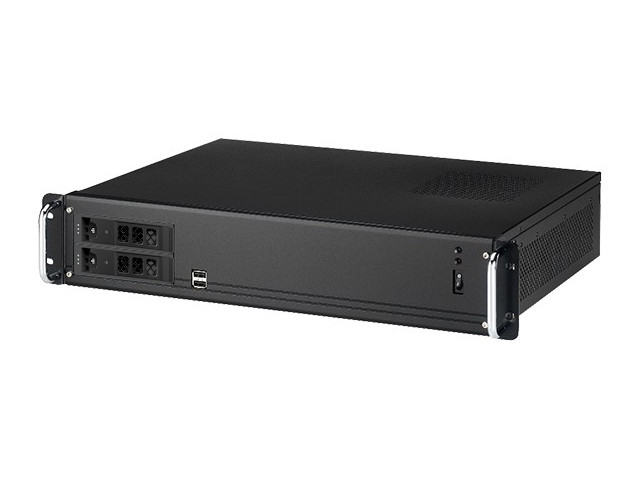

FS-12420
Active2U Rackmount Chassis for ATX System
2U · ATX (9.6" x 12") · Internal Drive Bay: 1 x 2.5"HDD · Hot-swap: 2… · 3 (+ 1 x flexible) · 8cm fan x 2
View Product Detail

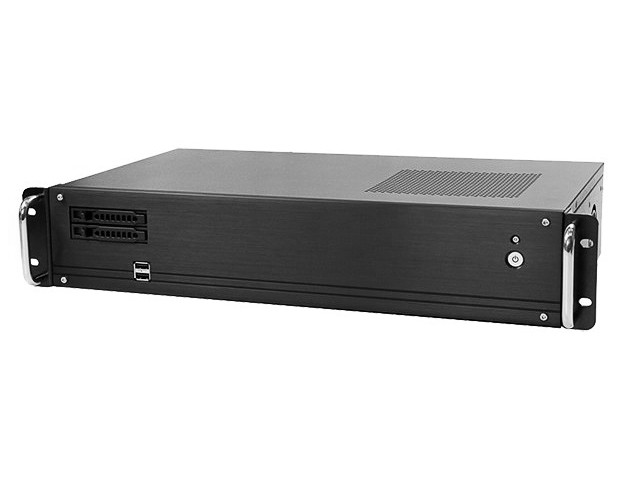

FS-12421
Active2U Rackmount Chassis for ATX System
2U · ATX (9.6" x 12") · Internal Drive Bay: 1 x 2.5"HDD · Hot-swap: 2… · 4 · 4cm fan x 2 + 6cm fan x 2
View Product Detail

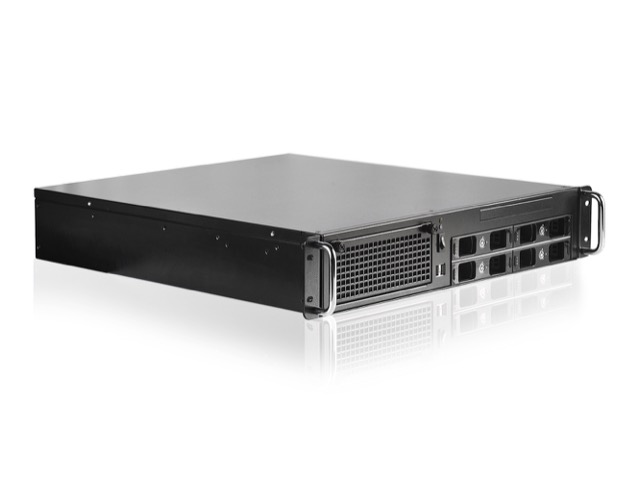

FS-12440
Active2U Rackmount Chassis for ATX Systems
2U · ATX · Internal Drive Bay: 1 x 2.5" and 2 x 3.5" HDD… · 7 x Low Profile · 2 x 80mm fan
View Product Detail

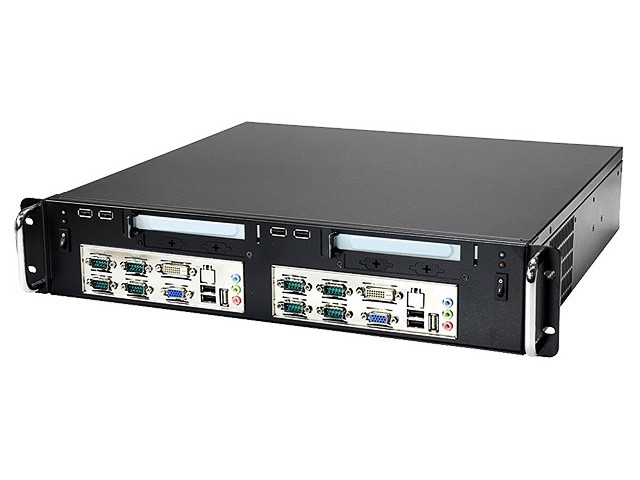

FS-12900
Active2U Rackmount Chassis for 2 × Mini-ITX Systems
2U · Mini-ITX · Internal Drive Bay: 3.5"HDD x 6 · 2 · 8cm fan x 2
View Product Detail
FS-12920
Active2U Rackmount Chassis for ATX System
2U · ATX · Internal Drive Bay: 2.5" HDD x 1 + 3.5" HDD x… · 4 · 8cm fan x 2
View Product Detail

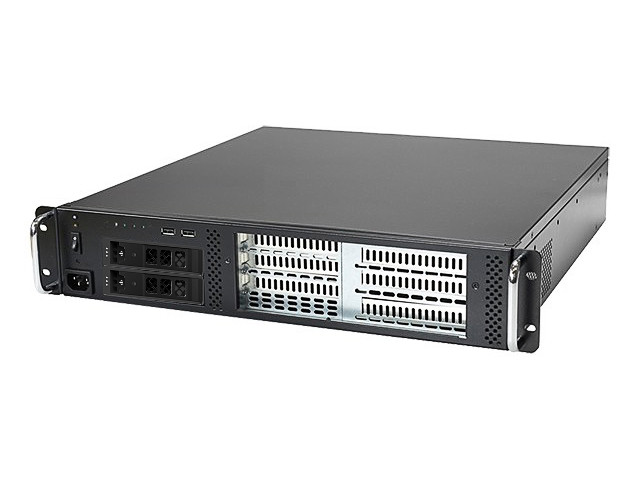

FS-12925
Active2U Rackmount Chassis for PICMG SBC Systems
2U · Mini-ITX · Hot-swap: 2 x 3.5"HDD · 6 · 8cm fan x 3 (at back panel)
View Product DetailSpec Comparison
| Model | Form Factor | Motherboard | Drive Bays | Expansion Slots | Cooling | PSU | Dimensions |
|---|---|---|---|---|---|---|---|
| FS-12140 | 2U | Mini-ITX | Internal Drive Bay: 1 x 2.5" HDD · Optical Drive Bay: 1 (Slim) ·… | 1 | 2 x 80mm fan | Flex ATX | 19.00" x 3.46" x 11.20" · 482.6 mm x 87.9 mm x 284.5 mm |
| FS-12241 | 2U | Mini-ITX | Internal Drive Bay: 2 x 2.5" and 4 x 3.5" · Hot-swap: 4 x 3.5" HDD… | 2 x Low Profile | 4 x 80mm fan | Flex ATX | 19.00" x 3.46" x 17.50" · 482.6 mm x 87.9 mm x 444.5 mm |
| FS-12242 | 2U | Mini-ITX | Internal Drive Bay: 2 x 2.5"HDD · Hot-swap: 4 x 3.5"HDD | none | 8cm fan x 2 | Flex ATX | 19.00" x 3.46" x 12.80" · 482.6 mm x 87.9 mm x 325.1 mm |
| FS-12280 | 2U | Mini-ITX | Internal Drive Bay: 2 x 2.5" HDD · Hot-swap: 8 x 3.5" HDD Tray (Front) | 2 x PCI | 2 x 80mm fan | Flex ATX | 19.00" x 3.46" x 17.50" · 482.6 mm x 87.9 mm x 444.5 mm |
| FS-12281 | 2U | Mini-ITX | Internal Drive Bay: 2 x 2.5" HDD · Hot-swap: 8 x 3.5" HDD Tray (Front) | 2 x Low Profile | 2 x 80mm fan | Flex ATX | 19.00" x 3.46" x 17.50" · 482.6 mm x 87.9 mm x 444.5 mm |
| FS-12340 | 2U | Micro-ATX | Internal Drive Bay: 2 x 2.5" OR 2 x 3.5" · Hot-swap: 4 x 3.5" HDD… | 4 x Low Profile | 3 x 80mm fan | PSII | 19.00" x 3.46" x 19.13" · 482.6 mm x 87.9 mm x 485.9 mm |
| FS-12341 | 2U | Micro-ATX | Internal Drive Bay: 1 x 3.5" OR 1 x 2.5" · Optical Drive Bay: 1… | 4 x Low Profile | 3 x 80mm fan | PSII | 19.00" x 3.46" x 19.96" · 482.6 mm x 87.9 mm x 507.0 mm |
| FS-12380 | 2U | Micro-ATX | Internal Drive Bay: 1 x 3.5" OR 1 x 2.5" · Optical Drive Bay: 1… | 4 x Low Profile | 1 x 80mm fan | PSII | 19.00" x 3.46" x 19.13" · 482.6 mm x 87.9 mm x 485.9 mm |
| FS-12420 | 2U | ATX (9.6" x 12") | Internal Drive Bay: 1 x 2.5"HDD · Hot-swap: 2 x 3.5"HDD | 3 (+ 1 x flexible) | 8cm fan x 2 | Flex ATX | 19.00" x 3.46" x 13.70" · 482.6 mm x 87.9 mm x 348.0 mm |
| FS-12421 | 2U | ATX (9.6" x 12") | Internal Drive Bay: 1 x 2.5"HDD · Hot-swap: 2 x 2.5"HDD | 4 | 4cm fan x 2 + 6cm fan x 2 | Flex ATX | 19.00" x 3.46" x 10.42" · 482.6 mm x 87.9 mm x 264.7 mm |
| FS-12440 | 2U | ATX | Internal Drive Bay: 1 x 2.5" and 2 x 3.5" HDD · Optical Drive Bay: 1… | 7 x Low Profile | 2 x 80mm fan | 2U Power Supply | 19.00" x 3.46" x 21.18" · 482.6 mm x 87.9 mm x 538.0 mm |
| FS-12900 | 2U | Mini-ITX | Internal Drive Bay: 3.5"HDD x 6 | 2 | 8cm fan x 2 | Flex ATX | 19.00" x 3.46" x 16.60" · 482.6 mm x 87.9 mm x 421.6 mm |
| FS-12920 | 2U | ATX | Internal Drive Bay: 2.5" HDD x 1 + 3.5" HDD x 2 · Hot-swap: 2 x 3.5"HDD | 4 | 8cm fan x 2 | Flex ATX | 19.00" x 3.46" x 15.24" · 482.6 mm x 87.9 mm x 387.1 mm |
| FS-12925 | 2U | Mini-ITX | Hot-swap: 2 x 3.5"HDD | 6 | 8cm fan x 3 (at back panel) | Flex ATX | 19.00" x 3.46" x 18.10" · 482.6 mm x 87.9 mm x 459.7 mm |
