IPC Rackmount / FS-12925

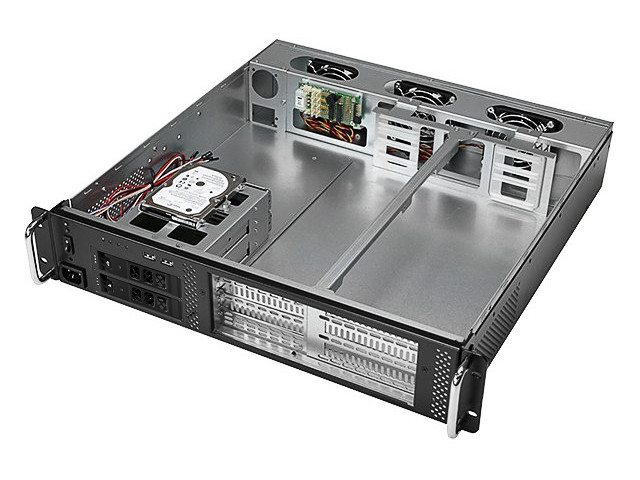

2U Rackmount Chassis for PICMG SBC Systems
2U PICMG / Mini-ITX chassis with six slots, three rear 8 cm fans, and two 3.5" hot-swap trays.
Product Overview
What the FS-12925 is built for.
FS-12925 is listed as a 2U PICMG SBC chassis with Mini-ITX motherboard size on the spec table: 18.10 inches deep, six expansion slots, three 8 cm fans on the back panel, Flex ATX, a DC jack, and two 3.5" hot-swap trays. Customizable color. It is the slot-heavy 2U, not a dual-node box.
Key Features
Engineered for reliability and integration.
- Board support: Mini-ITX
- Storage: Hot-swap: 2 x 3.5"HDD
- Expansion: 6

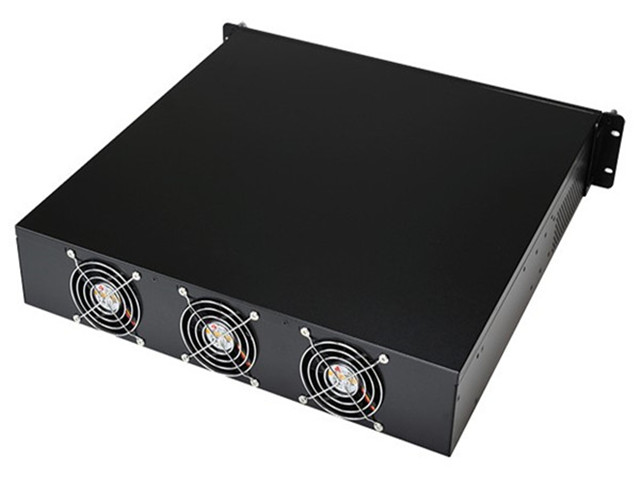

- Cooling: 8cm fan x 3 (at back panel)
- PSU: Flex ATX
- Chassis: Heavy duty cold-rolled steel
- Envelope (W×H×D): 19.00" x 3.46" x 18.10"
Specifications
Technical specifications.
| Model Number | FS-12925 |
|---|---|
| Product Category | IPC Rackmount |
| Form Factor | 2U |
| Motherboard Support | Mini-ITX |
| Drive Bays | Hot-swap: 2 x 3.5"HDD |
| Expansion Slots | 6 |
| Cooling | 8cm fan x 3 (at back panel) |
| PSU Support | Flex ATX |

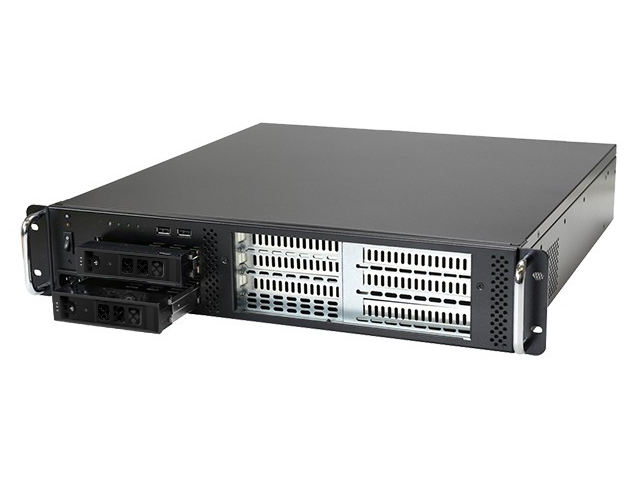

| Front Panel | LED: 2 x disk activity (Orange light) ; 2 x power on (Blue light) · USB: 2 · Power SW: 1 |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint with texture coat |
| Color | Black. Customizable colour |
| Memory Height | Accept standard size |
| DC Jack | 1 |
| Dimensions | 19.00" x 3.46" x 18.10" · 482.6 mm x 87.9 mm x 459.7 mm |
| Certification | RoHS compliant |
Applications
Where the FS-12925 is deployed.
Industrial Control
2U IPC chassis for PLC, SCADA, and line controllers.
Machine Vision Host
6 for capture and GPU/FPGA cards.
Factory Storage Node
Hot-swap: 2 x 3.5"HDD
OEM/ODM Rack IPC
Bezel, PSU, and bay options under a FactorySmith drawing.
Customization Options
Adapt the FS-12925 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front-panel I/O and LED layout
Hot-swap bay count and backplane
PSU selection (Flex ATX / PS2 / DC)
Fan, filter, and rail kits
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-12925 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-12925 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-12925 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
Related Products
Explore adjacent options.
Product quotation
Request a quote for this model.
Standard or slightly modified builds of FS-12925 can be quoted on this page. For OEM/ODM manufacturing, system build and integration, or data center planning and deployment, start a project.
Start a project
Need more than a catalog quote for FS-12925?
This page quotes the model. OEM/ODM, system build and integration, and data center planning and deployment each have their own conversation.
