IPC Rackmount / FS-12380

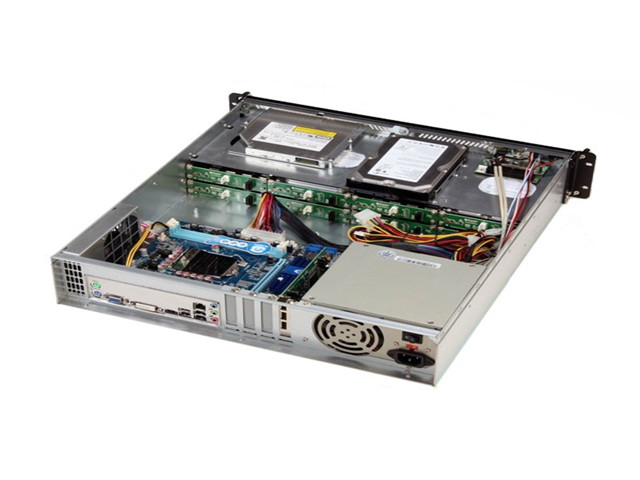

2U Rackmount Chassis for Micro-ATX Systems
2U microATX with eight 3.5" hot-swap trays, four low-profile slots, and a single 80 mm rear fan.
Product Overview
What the FS-12380 is built for.
FS-12380 keeps the 2U microATX / PSII / four low-profile language at 19.13 inches deep, then loads eight 3.5" hot-swap trays plus slim optical and 1 × 3.5" or 1 × 2.5" internal. Cooling on the product page is one 80 mm fan. It is the tray-count ceiling of the 2U microATX trio.
Key Features
Engineered for reliability and integration.
- 2U industrial rackmount platform for Micro-ATX motherboards (9.6" x 9.6")
- Supports: 8 x hot-swap, 4 x low profile expansion.
- Excellent cooling system with 80mm rear fan.
- Board support: Micro-ATX
- Storage: Internal Drive Bay: 1 x 3.5" OR 1 x 2.5" · Optical Drive Bay: 1 (Slim) · Hot-swap: 8 x 3.5" HDD Tray (Front)
- Expansion: 4 x Low Profile
- Cooling: 1 x 80mm fan
- PSU: PSII
Specifications
Technical specifications.
| Model Number | FS-12380 |
|---|---|
| Product Category | IPC Rackmount |
| Form Factor | 2U |
| Motherboard Support | Micro-ATX |
| Drive Bays | Internal Drive Bay: 1 x 3.5" OR 1 x 2.5" · Optical Drive Bay: 1 (Slim) · Hot-swap: 8 x 3.5" HDD Tray (Front) |
| Expansion Slots | 4 x Low Profile |
| Cooling | 1 x 80mm fan |
| PSU Support | PSII |
| Front Panel | LED: 1 x Activity; 1 x Power · USB: 2 · Power SW: 1 · Audio: 1 |
| I/O Shield | Standard I/O |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 30 |
| Mounting | Optional Sliding rails |
| Memory Height | Accepts standard size |
| Compact Flash | 1 |
| Dimensions | 19.00" x 3.46" x 19.13" · 482.6 mm x 87.9 mm x 485.9 mm |
| Certification | RoHS compliant |
Applications
Where the FS-12380 is deployed.
Industrial Control
2U IPC chassis for PLC, SCADA, and line controllers.
Machine Vision Host
4 x Low Profile for capture and GPU/FPGA cards.
Factory Storage Node
Internal Drive Bay: 1 x 3.5" OR 1 x 2.5" · Optical Drive Bay: 1 (Slim) · Hot-swap: 8 x 3.5" HDD Tray (Front)
OEM/ODM Rack IPC
Bezel, PSU, and bay options under a FactorySmith drawing.
Customization Options
Adapt the FS-12380 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front-panel I/O and LED layout
Hot-swap bay count and backplane
PSU selection (Flex ATX / PS2 / DC)
Fan, filter, and rail kits
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-12380 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-12380 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-12380 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
