IPC Rackmount / FS-12440
2U Rackmount Chassis for ATX Systems
Deep 2U ATX (21.18 inches) with seven low-profile slots, four 3.5" hot-swap, slim ODD, and a 2U PSU.
Product Overview
What the FS-12440 is built for.

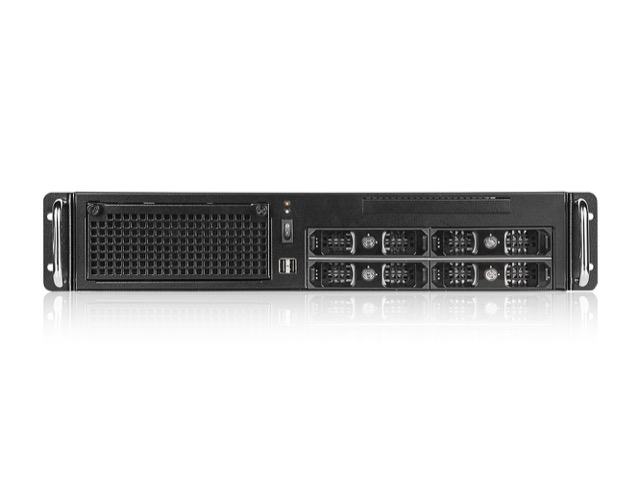

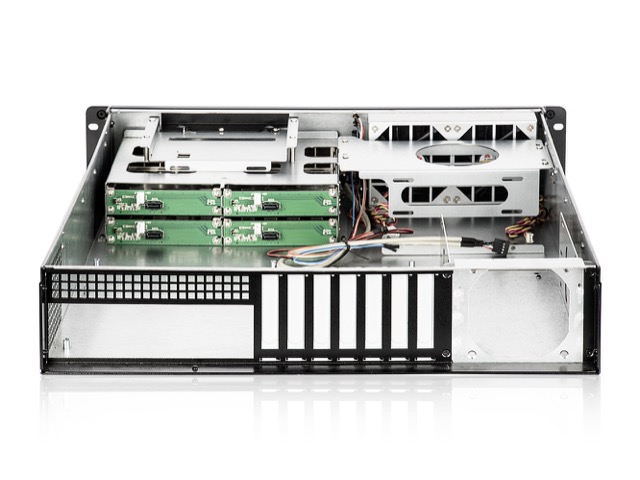

FS-12440 is the long 2U ATX industrial chassis: 21.18 inches deep, seven low-profile slots, 2U power supply, two 80 mm fans, slim optical, internal 1 × 2.5" plus 2 × 3.5", and four front 3.5" hot-swap trays. Slot count and PSU form factor are why it sits apart from the Flex-ATX Baby-ATX pair.
Key Features
Engineered for reliability and integration.
- 2U industrial rackmount platform for Baby-ATX motherboards
- Supports: 4 x hot-swap, 7 x low profile expansion
- Excellent cooling system with 2 x 80mm front fan
- Board support: ATX
- Storage: Internal Drive Bay: 1 x 2.5" and 2 x 3.5" HDD · Optical Drive Bay: 1 (Slim) · Hot-swap: 4 x 3.5" HDD Tray (Front)
- Expansion: 7 x Low Profile
- Cooling: 2 x 80mm fan
- PSU: 2U Power Supply
Specifications
Technical specifications.
| Model Number | FS-12440 |
|---|---|
| Product Category | IPC Rackmount |
| Form Factor | 2U |
| Motherboard Support | ATX |
| Drive Bays | Internal Drive Bay: 1 x 2.5" and 2 x 3.5" HDD · Optical Drive Bay: 1 (Slim) · Hot-swap: 4 x 3.5" HDD Tray (Front) |
| Expansion Slots | 7 x Low Profile |
| Cooling | 2 x 80mm fan |
| PSU Support | 2U Power Supply |
| Front Panel | LED: 1 x Activity; 1 x Power · USB: 2 · Power SW: 1 |
| I/O Shield | Standard I/O |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 30 |
| Mounting | Optional Sliding rails |
| Memory Height | Accepts standard size |
| Dimensions | 19.00" x 3.46" x 21.18" · 482.6 mm x 87.9 mm x 538.0 mm |
| Certification | RoHS compliant |
Applications
Where the FS-12440 is deployed.
Industrial Control
2U IPC chassis for PLC, SCADA, and line controllers.
Machine Vision Host
7 x Low Profile for capture and GPU/FPGA cards.
Factory Storage Node
Internal Drive Bay: 1 x 2.5" and 2 x 3.5" HDD · Optical Drive Bay: 1 (Slim) · Hot-swap: 4 x 3.5" HDD Tray (Front)
OEM/ODM Rack IPC
Bezel, PSU, and bay options under a FactorySmith drawing.
Customization Options
Adapt the FS-12440 to your program.
iStarUSA Design-In services cover mechanical, electrical, and lifecycle customization scopes.
Front-panel I/O and LED layout
Hot-swap bay count and backplane
PSU selection (Flex ATX / PS2 / DC)
Fan, filter, and rail kits
Color, silk-screen, and logo
Long-lifecycle FactorySmith program
Downloads
Documentation & drawings.
Two Ways to Buy
Order the standard model — or use it as a platform.
The FS-12440 is available both as a ready-to-ship standard product and as a starting point for OEM/ODM customization. Pick the path that matches your project.
Option A
Use as Standard Product
Order the FS-12440 with its published specifications. Ideal when you need a proven configuration, immediate quotation, and comparable datasheets against other models.
- Published specifications and datasheets
- Standard configuration, ready to quote
- Compatible with existing integrations
Option B
Use as Customizable Platform
Start with the FS-12440 and adapt it for OEM/ODM, Design-In, mechanical modification, or long-term supply programs. Our engineering team supports the full customization scope.
- OEM/ODM branding and mechanical modification
- Design-In engineering support
- Long-lifecycle and BOM stability planning
